Mercedes A6718250282 - Колодка лампы дневного света

O 345 G,EURO 3 671.333

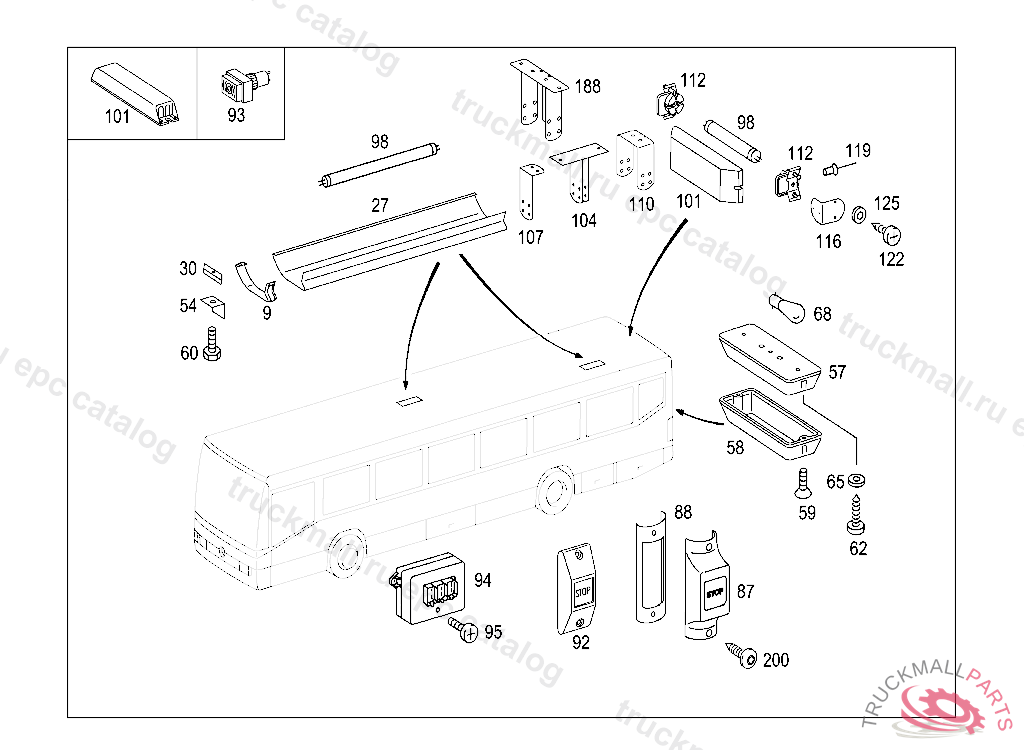

82 ELECTRICAL SYSTEM - 480 INTERIOR LAMP,PASSENGER COMMUNICATOR SYSTEM IL. 1

Поз.
Артикул
Описание
57
HXB3738201601
57
A6138200901
INTERIOR LAMP
58
HXB3738250010
59
N007988004106
SCREW
62
N000000000449
TAPPING SCREW MOUNTING, HANDLE MBN 10169-ST3.5X19-R
62
N007981003239
SHEET METAL SCREW , UP TO CHASSIS: 114.010 016428 114.015 013598 115.010 014491 115.015 011507 115.110 031296 115.115 013974
65
N000000003748
WASHER DIA., 3,2MM
68
N072601024702
BULB , Replaced By: N072601024704
87
A6718250006
92
A6718250406
98
HXB3738250595
98
HXB3738250495
101
A6718250695
104
A6718201214
107
A6718250114
112
A0008203065
112
A6718250282
116
HXB3738170932
119
N910002004131
122
N000000000522
SHEET METAL SCREW BRACKET TO SUPPORT
122
N007981003243
SHEET METAL SCREW ELECTRIC CABLE MOUNTING
125
N000125004319
WASHER BRACKET TO SUPPORT
125
N000000003718
WASHER ATTACHMENT OF ELECTRIC LEAD AND GROUND STRAP ON ALTERNATOR
200
N000000000476
TAPPING SCREW3,5X13
999
A6718211201
999
A6718250382
