Поз.
Артикул
Описание

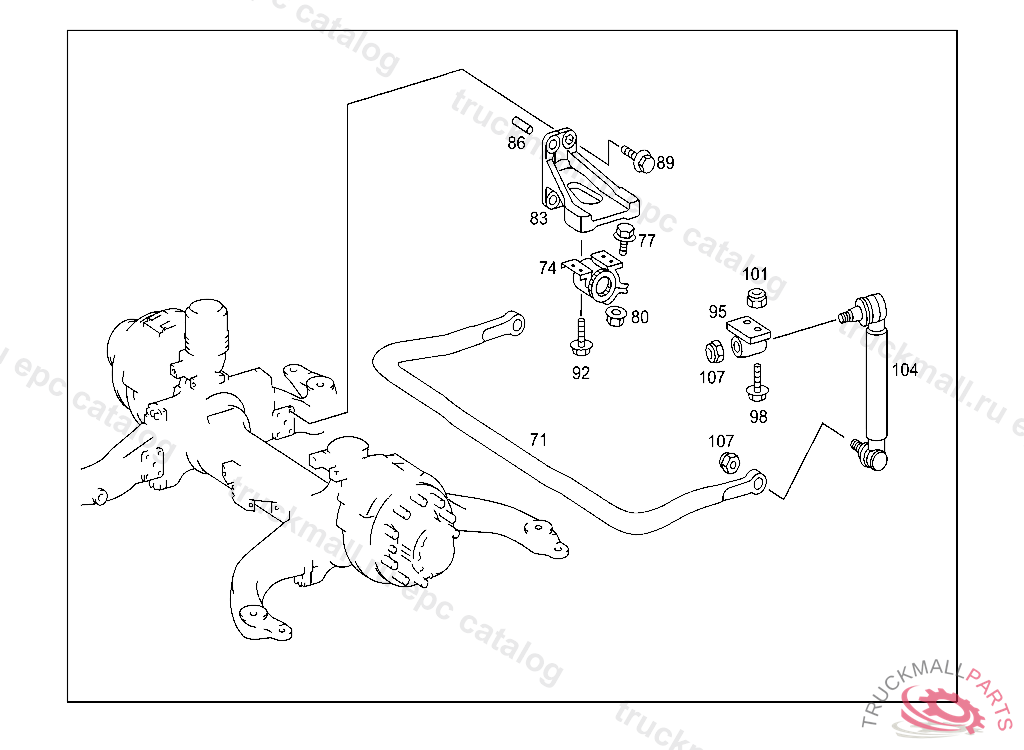

71
TORSION BAR
74
BEARING
77
SCREW. HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X40
77
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
80
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
80
NUT SUPPORT TO FRAME
83
BEARING BRACKET
86
CYLINDRICAL PINM6X28, Replaced By: N000000006657
89
HEXAGON HEAD BOLT REAR CAB SUSPENSION ON FRAME BRACKET
89
SCREW. HEXAGON HEAD BOLT SHACKLE TO TORSION BAR AND TO CONSOLE M16X1.5X35
92
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
95
BRACKET TORSION BAR TO BEARING BRACKET
98
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
98
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X45
101
NUT SUPPORT TO FRAME
104
ROD REAR AXLE,RIGHT
104
ROD REAR AXLE,LEFT
104
ROD REAR AXLE,RIGHT, Replaced By: A6283201389
104
ROD REAR AXLE,LEFT, Replaced By: A6283201289
107
NUT STEERING WHEEL TO STEERING COLUMN
