Поз.
Артикул
Описание

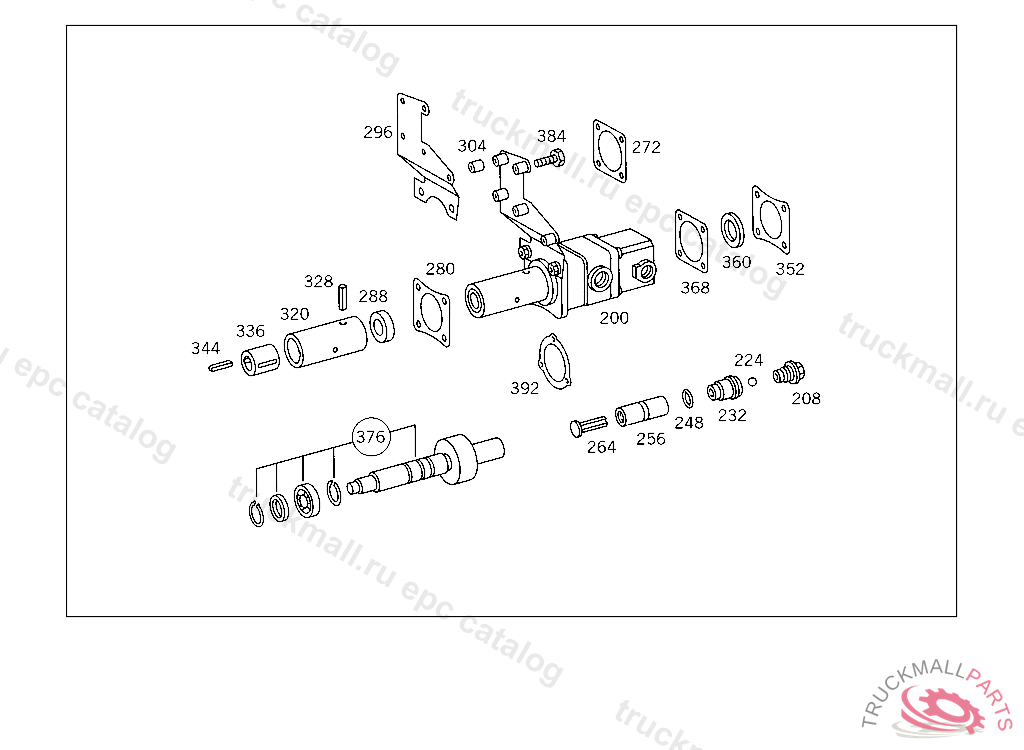

200
HYDRAULIC PUMP SERVICE WITH DUMPING PLATFORM, 314 FROM IDENT NO. 4 154034-4 284802
200
HYDRAULIC PUMP , Replaced By: A0002367505, +001A0002360615
208
SCREW PLUG
208
SCREW PLUG
208
SCREW PLUG
208
SCREW PLUG , Replaced By: A0019974430
224
BALL10 MM
224
BALL10 MM
224
BALL10 MM
232
VALVE CHECK VALVE
232
VALVE CHECK VALVE
232
VALVE CHECK VALVE
248
SEAL RING
248
SEAL RING
248
SEAL RING
256
PISTON
256
PISTON
256
PISTON
264
VALVE
264
VALVE
264
VALVE
272
GASKET CASE PART I TO CASE PART II
272
GASKET CASE PART I TO CASE PART II
272
GASKET CASE PART I TO CASE PART II
280
GASKET CONNECTION FLANGE
280
GASKET CONNECTION FLANGE
280
GASKET CONNECTION FLANGE
288
SEAL RING
288
SEAL RING
296
BRACKET , TO SIX - PISTON AXIAL PUMP 000 236 34 05 WITH TYPE DESIGNATION 266/5
296
BRACKET CONNECTOR
296
BRACKET CONNECTOR
304
BUSHING
320
SLIDING COLLAR
320
SLIDING COLLAR
328
CLAMPING SLEEVE RETAINING ROPE TO AUXILIARY FRAME 8X60 MM
336
BUSHING
344
KEY
352
GASKET CONNECTION FLANGE
360
SEAL RING
368
GASKET CASE PART I TO CASE PART II
376
SHAFT DRIVE SHAFT TO 000 236 75 05
384
SCREW DISTRIBUTOR TO REAR AXLE M8 X48
392
GASKET
999
SEAL RING LINE CONNECTION
