Поз.
Артикул
Описание

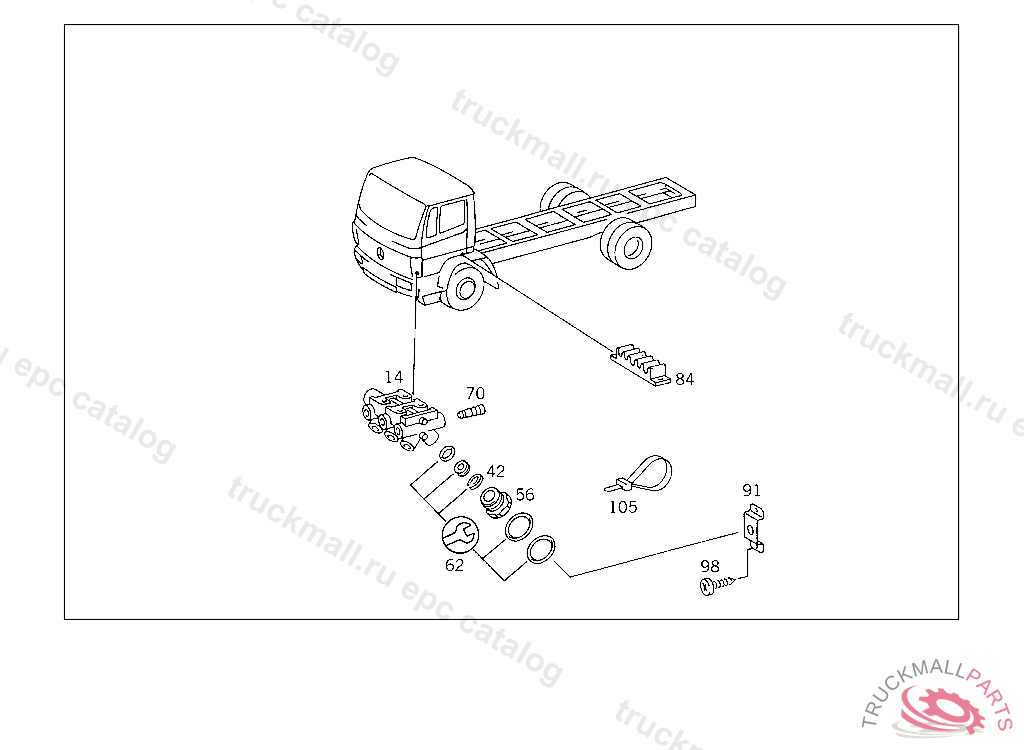

14
DISTRIBUTOR
42
LOCK LINE CONNECTION
42
LOCK , Replaced By: A0009945448
56
SCREW. UNION SCREW LINE CONNECTION
56
SCREW. UNION SCREW , Replaced By: A0009973734
62
REPAIR KIT , Replaced By: A0309971748
62
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
70
PLUG DISTRIBUTOR,CONNECTIONS: "03,04,05",TO M 16,5 766894
70
PLUG DISTRIBUTOR,CONNECTIONS: "03,04,05",TO M 16,5 766894
84
CLAMPING RAIL COMPRESSED AIR LINES,5 181196 TO BE ADAPTED DURING ASSEMBLY
84
CLAMPING RAIL ,5 181196, Replaced By: A6739950057
91
BRACKET COMPRESSED AIR LINE MOUNTING,5 181197
98
SHEET METAL SCREW , Replaced By: N000000000459
98
SHEET METAL SCREW FUEL STRAINER SCREEN TO FUEL TANK
98
SHEET METAL SCREW , Replaced By: N007981004339
105
LOOM TIE LINE MOUNTING
999
DISTRIBUTOR ENGINE SHUT-OFF,5 766894
999
SEAL RING , Replaced By: A0009940747
999
LOCK RING LINE CONNECTION
999
SCREW REDUCTION VALVE TO BRACKET
999
BRACKET DISTRIBUTOR TO FRAME SIDE MEMBER
999
WASHER BRACKET TO FRAME
999
PROTECTIVE PLATE , DISCONTINUED,PART IS NO LONGER REQUIRED
999
BRACKET HEAT SHIELD TO FRAME, DISCONTINUED,PART IS NO LONGER REQUIRED
999
SPRING WASHER , Replaced By: N000137008212
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SCREW CONNECTOR
999
SCREW , Replaced By: A0079900801
999
SCREW CONSOLE TO SIDE MEMBER
999
NUT SUPPORT TO SIDE MEMBER
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
