Mercedes N304017006018 - Болт

814 L 674.217

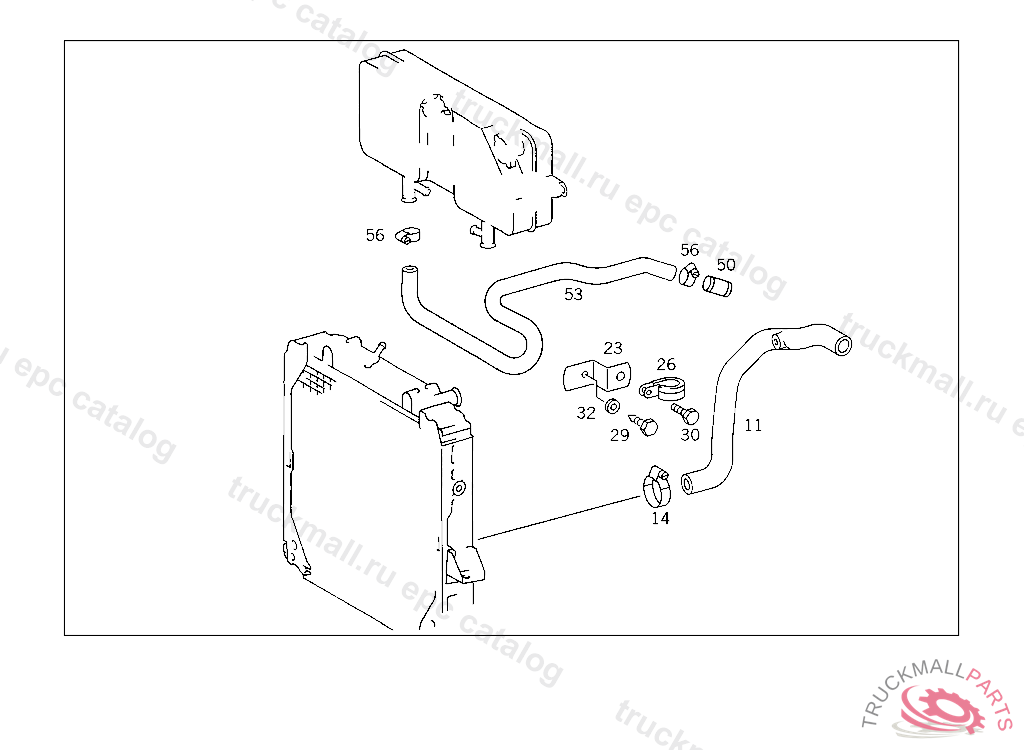

24 ENGINE SUSPENSION - 001 ENGINE-DRIVEN P.T.O.,FRONT IL.1

Поз.
Артикул
Описание
11
A6745012482
HOSE FROM RADIATOR TO WATER PUMP
14
N916017040000
CLAMP , Replaced By: N000000000671
14
N000000000671
CLAMP
23
A6735010620
BRACKET HOSE TO FIRE WALL
26
N916016054200
CLAMP HOSE
29
N007976006208
SHEET METAL SCREW BRACKET TO FIRE WALL 6.3X22
30
N000933006103
SCREW , Replaced By: N304017006018
30
N304017006018
SCREW COVER PLATE TO COVER PLATE M 6 X 12
32
N000125007408
WASHER COVER PLATE TO COVER PLATE
50
A6735010124
COOLING WATER PIPE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
53
A6735011082
HOSE (FILL-UP LINE) FROM EXPANSION TANK TO WATER PUMP
56
N916017025000
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
56
N000000000668
CLAMP25-40X13 MM
