Mercedes A0249979847 - Деталь-SEAL-RING

E 270 CDI 211.616

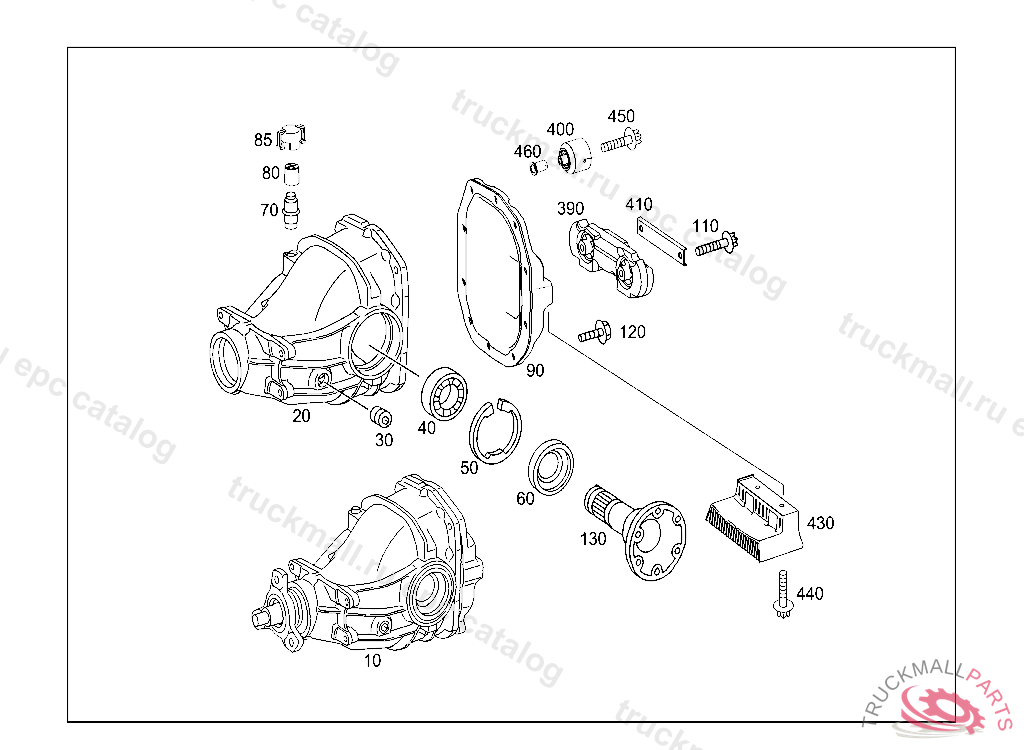

35 REAR AXLE - 015 REAR AXLE HOUSING WITH DIFFERENTIAL IL. 1

Поз.
Артикул
Описание
10
A2113509714
AXLE HOUSING REAR AXLE CENTER ASSEMBLY W/O FLANGE 1:2.82, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
20
A2303510105
HOUSING REAR AXLE HOUSING WITH DIFFERENTIAL
30
A0009976232
SCREW PLUG
40
A0029801702
TAPERED ROLLER BEARING RING GEAR BEARING
50
A2209940241
FUSE AS REQUIRED 3.70 MM
50
A2209941341
FUSE AS REQUIRED 4.40 MM
50
A2209940541
FUSE AS REQUIRED 3.90 MM
50
A2209940341
FUSE AS REQUIRED 3.80 MM
50
A2209941141
FUSE AS REQUIRED 4.20 MM
50
A2209941241
FUSE AS REQUIRED 4.30 MM
50
A2209941541
FUSE AS REQUIRED 4.50 MM
50
A2209941441
FUSE AS REQUIRED 4.45 MM
50
A2209940741
FUSE AS REQUIRED 4.00 MM
50
A2209940941
FUSE AS REQUIRED 4.10 MM
50
A2209940641
FUSE AS REQUIRED 3.95 MM
50
A2209940841
FUSE AS REQUIRED 4.05 MM
50
A2209940441
FUSE AS REQUIRED 3.85 MM
50
A2209941041
FUSE AS REQUIRED 4.15 MM
50
A2209940141
FUSE AS REQUIRED 3.60 MM
60
A0249979847
SEAL RING , Replaced By: A0259972747, +001A2203570790
70
A2303500590
BREATHER
80
A2303510268
CAP BREATHER
90
A2303510508
END COVER
110
N910105010011
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
120
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
