Mercedes A0029846229 - Винт с потайной головкой

E 270 CDI 211.616

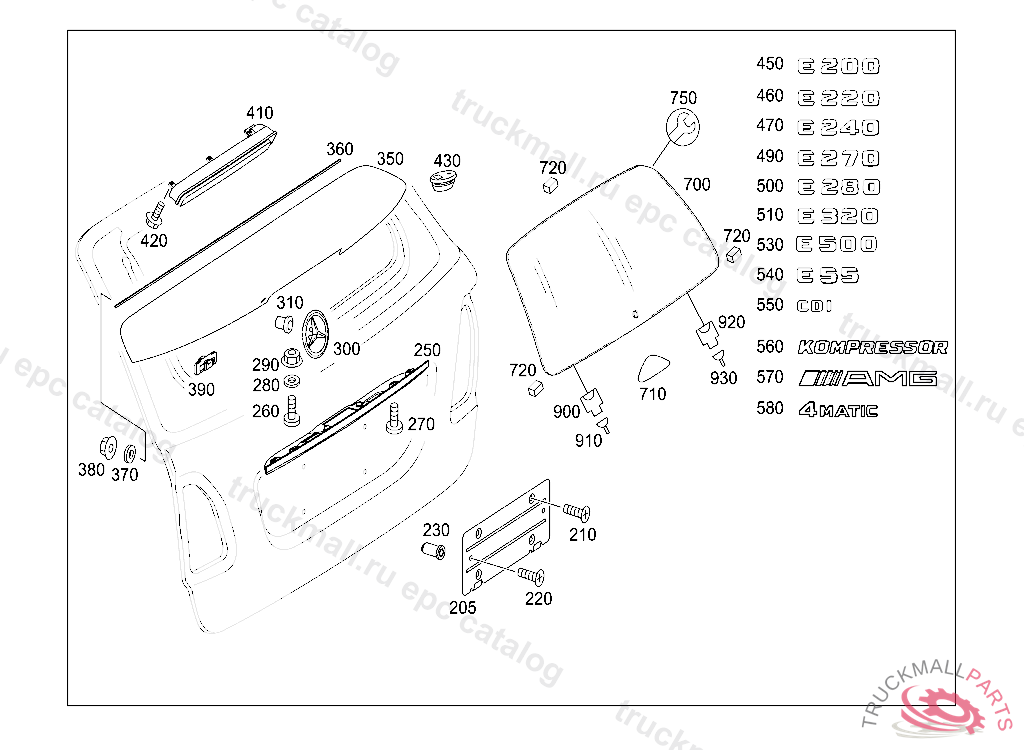

74 REAR PANEL DOOR - 045 REAR PANEL DOOR ATTACHMENT PARTS, REAR PANEL DOOR WINDOW IL. 2

Поз.
Артикул
Описание
250
A2117400493
HANDLE , OBSERVE WORK INSTRUCTIONS IN WIS WIS-NET#SI88.50-P-0001A#
260
A1249900610
BOLT
270
A0029846229
BOLT HANDLE TO REAR LID, A 15992220090714
280
A1249900451
NUT MOULDING TYPE HANDLE TO REAR PANEL DOOR
300
A2117580158
MERCEDES STAR
310
A2019972281
GROMMET MERCEDES STAR TO REAR LID
900
A0025459226
PLUG HOUSING UNIPOLAR
910
A0085456026
FLAT PLUG. FLAT PIN BUSHING WITH DETENT 1.5-2.5 MM2
920
A0305455928
PLUG INFRARED REMOTE CONTROL RECEIVER, FRONT DOOR, FROM MODEL YEAR 1999
930
A0005404505
REP.SET CONTACT. CABLE HARNESS
