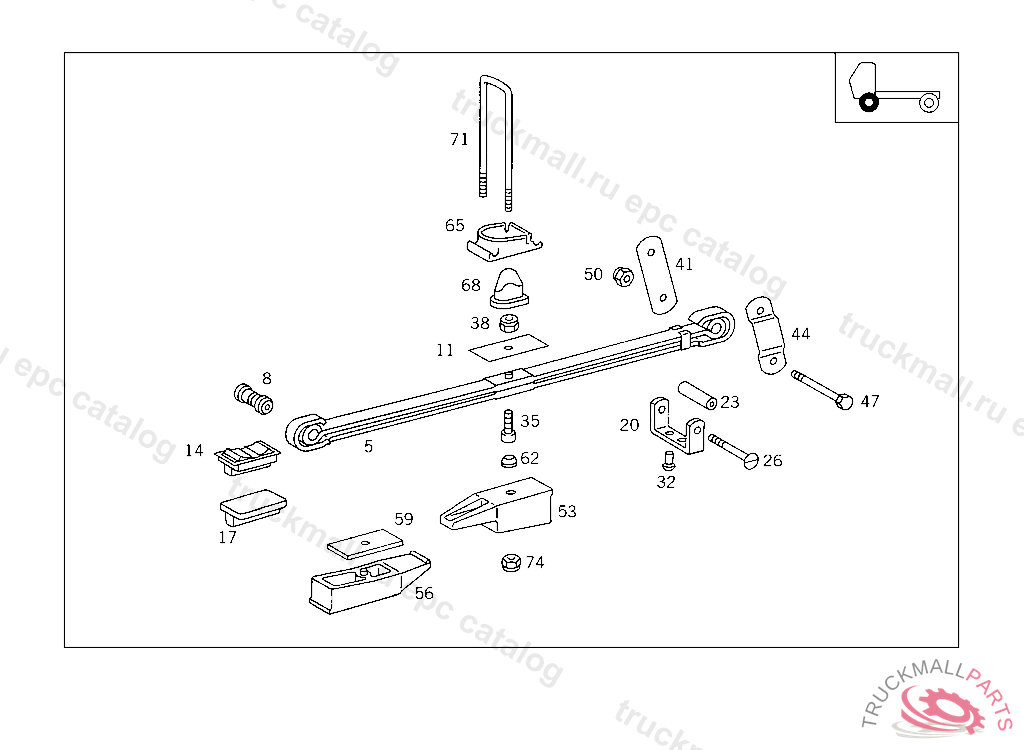

Поз.
Артикул
Описание
5
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "2"
8
BUSHING
11
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
11
SHIM , Replaced By: A9703210184
14
RUBBER BUFFER BETWEEN THE SPRING EYES
17
SHIM BETWEEN THE SPRING LEAVES
20
SPRING CLAMP TO SPRING LEAF NO.4,5 484790
23
SPACER TUBE SPRING CLAMP TO SPRING LEAF,5 484790
26
SCREW SPRING CLAMP TO SPRING LEAF,5 484790
32
RIVET SPRING CLAMP TO SPRING LEAF
35
SPRING BOLT ,5 227450
38
NUT BRACKET TO BEARING BRACKET
41
SHACKLE INSIDE,FRONT SPRING TO SPRING REAR BRACKET
44
SHACKLE OUTSIDE,FRONT SPRING TO SPRING REAR BRACKET
47
SCREW ENGINE TO ENGINE FRONT SUPPORT M16X130,5 548534
50
NUT COMBINATION CYLINDER TO BEARING BRACKET
50
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
56
SHIM FRONT SPRINGS TO FRONT AXLE
59
SHIM FRONT SPRINGS TO FRONT AXLE
62
DOWEL PIN (CENTERING CONE),5 361887, Replaced By: A9303230574
62
CENTERING BOLT (CENTERING CONE),5 361887
65
PLATE FRONT SPRINGS TO FRONT AXLE
68
HELPER SPRING FRONT SPRING STOP
71
U-BOLT FRONT SPRING TO FRONT AXLE,FRONT LEFT 220 MM
71
U-BOLT FRONT SPRING TO FRONT AXLE,REAR 180 MM
74
NUT SPARE WHEEL CARRIER TO SIDE MEMBER
74
NUT , Replaced By: N308673016001
