Поз.
Артикул
Описание

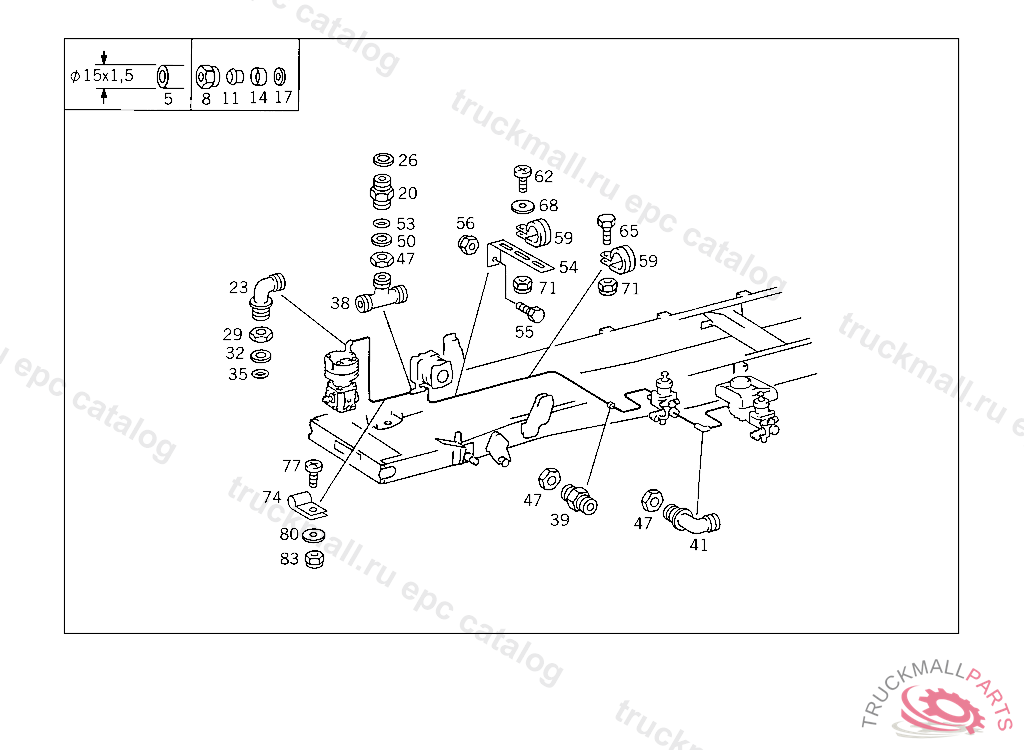

5
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
8
UNION NUT BUTT SCREW CONNECTION
8
UNION NUT LINE CONNECTION
11
GLAND LINE CONNECTION
14
THRUST RING BUTT SCREW CONNECTION
17
SEAL RING , Replaced By: N007603012121
17
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
20
FITTING AIR RESERVOIR,CONNECTION: "13"
23
ELBOW FITTING BUTT SCREW CONNECTION "20",5 271048
23
ELBOW FITTING , Replaced By: A0039901671
23
ELBOW FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20", Replaced By: A6209900071
23
ELBOW FITTING , Replaced By: A0039901671
26
SEAL RING LINE CONNECTION
29
NUT SUCTION LINE TO OIL PUMP
32
THRUST RING SUCTION LINE TO OIL PUMP
35
SEAL RING LINE CONNECTION
39
BULKHEAD FITTING THROUGH SIDE MEMBER, BUTT CONNECTION
39
BULKHEAD FITTING THROUGH SIDE MEMBER
39
FITTING FRONT AXLE II RELAY VALVE,CONNECTION: "24"
39
FITTING SHUTTLE VALVE,CONNECTION: "20"
39
BULKHEAD FITTING THROUGH SIDE MEMBER
47
NUT CHECK VALVE TO AIR RESERVOIR
50
THRUST RING BUTT SCREW CONNECTION
53
SEAL RING , Replaced By: N007603012121
53
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
54
BRACKET OIL LINE MOUNTING
55
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
55
SCREW CLAMP TO BRACKET
55
SCREW , Replaced By: N308676012012
55
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
56
NUT SUPPORT TO SIDE MEMBER
59
CLAMP LINE MOUNTING
59
CLAMP OIL DIPSTICK TO RADIATOR
62
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
62
SCREW CLAMP TO BRACKET
65
SCREW , Replaced By: N000933008337
65
SCREW , Replaced By: A0099900101
65
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
68
WASHER , Replaced By: N009021006208
68
WASHER COMPRESSED AIR LINE TO BRACKET
71
NUT , Replaced By: N913004006001
71
NUT PUMP TO BRACKET
74
CLAMP DELIVERY AND SUCTION LINES TO STEERING
80
WASHER , Replaced By: N009021006208
80
WASHER COMPRESSED AIR LINE TO BRACKET
83
NUT , Replaced By: N913004008001
83
NUT , Replaced By: N913004006001
83
NUT PUMP TO BRACKET
999
CLAMP HOSE TO BRACKET 25/20,5 206397
999
GROMMET LINE MOUNTING
999
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
999
CLAMP , Replaced By: N916016025200
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 4 MM/9 MM
999
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
T-FITTING
999
CONNECTOR REPAIR SIZE
999
CONNECTOR HOSE WIDTH, 6 MM, TO M22
999
DISTRIBUTOR LINE CONNECTION
