Поз.
Артикул
Описание
5

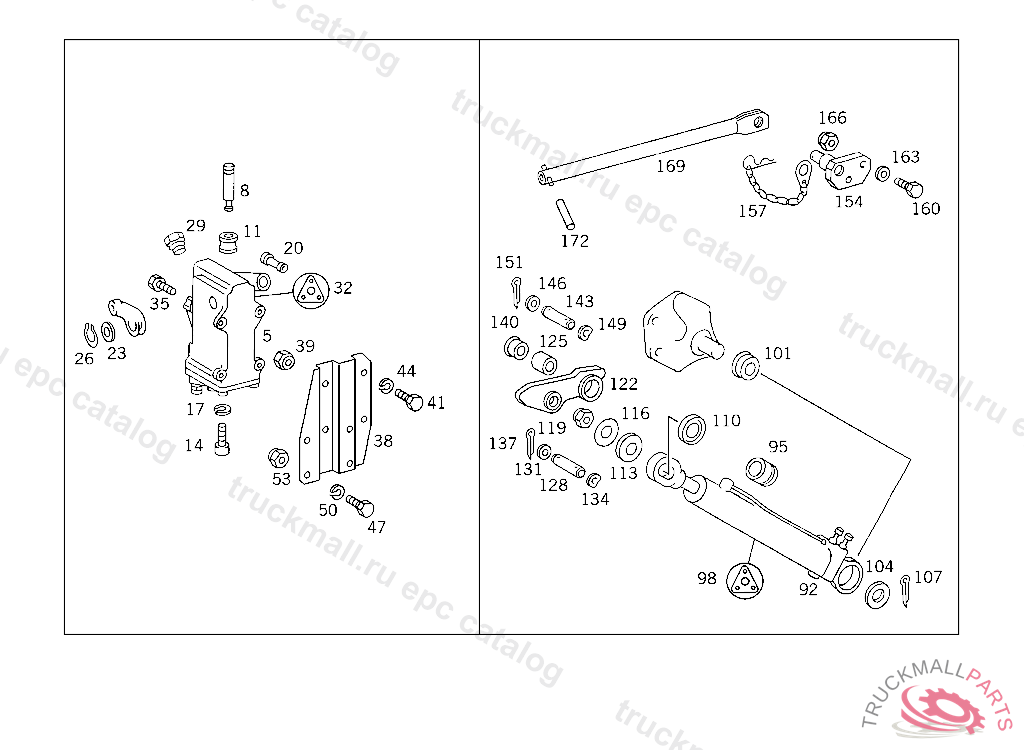

PUMP (HAND PUMP)
5
PUMP (HAND PUMP), FOR COMPONENT PARTS SEE SPARE PARTS LIST
8
PISTONTO 000 553 89 01
11
VALVETO 000 553 89 01
14
SCREW
14
SCREW , Replaced By: N000000000190
17
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
20
FILTER
23
FITTED WASHER
26
LOCK RING
29
SCREW
32
GASKET KIT HAND PUMP
35
SCREW , Replaced By: N304017010002
35
SCREW BRACKET TO SIDE MEMBER
39
NUT , Replaced By: N910113010000
39
NUT STRAP TO BRACKET
92
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING
95
GUIDETO 674 553 04 05
98
GASKET KIT HYDRAULIC CYLINDER
101
BUSHING HYDRAULIC CYLINDER TO BEARING BRACKET
104
WASHER HYDRAULIC CYLINDER TO BEARING BRACKET, 387.006-154, 389.006-154, UP TO IDENT-NO. 4 646673,387.214-227, 393.311-586, 395.312-454 UP TO IDENT NO. 4 646483
104
WASHER , Replaced By: N000125025008
107
COTTER PIN6.3X63 MM
110
WASHER HYDRAULIC CYLINDER TO CAB
113
WASHER HYDRAULIC CYLINDER TO CAB
116
WASHER HYDRAULIC CYLINDER TO CAB
116
WASHER HYDRAULIC CYLINDER TO CAB
119
NUT COMBINATION CYLINDER TO BEARING BRACKET
119
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
