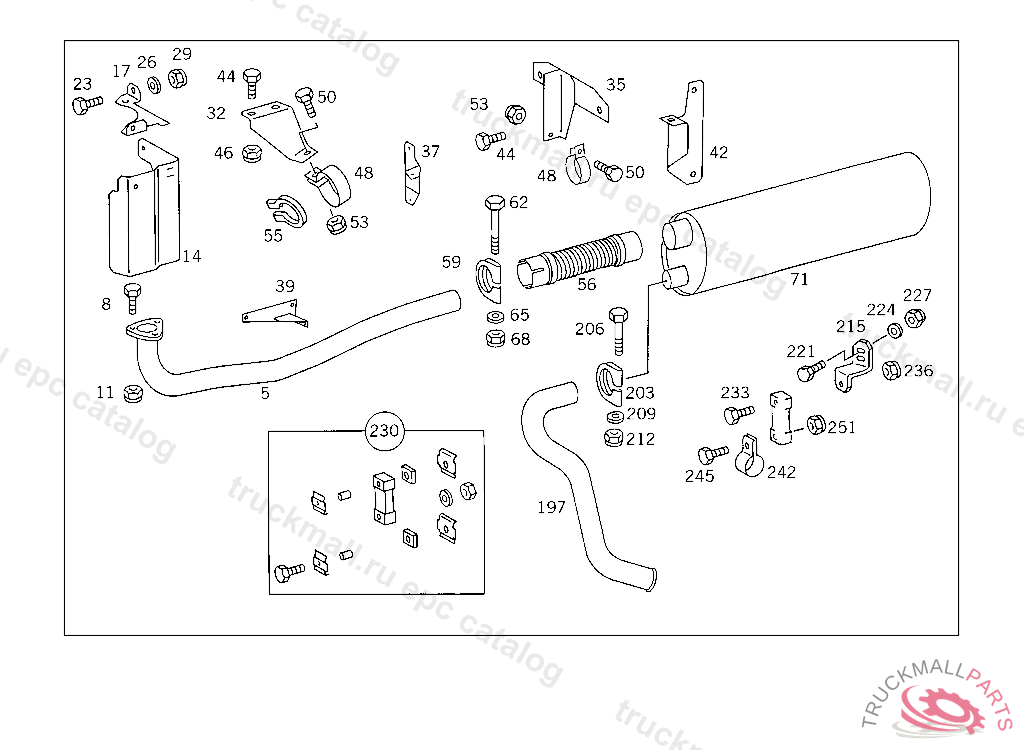

Поз.
Артикул
Описание
5
EXHAUST PIPE CONNECTING PIPE TO EXHAUST MANIFOLD,K 049384
5
EXHAUST PIPE CONNECTING PIPE TO EXHAUST MANIFOLD,5 528483K 049383
5
EXHAUST PIPE CONNECTING PIPE TO EXHAUST MANIFOLD,5 3373435 528482
5
EXHAUST PIPE CONNECTING PIPE TO EXHAUST MANIFOLD,5 337342
5
EXHAUST PIPE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.5 180543, Replaced By: A6764901019
5
EXHAUST PIPE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.5 121317, Replaced By: A6764900819
8
SCREW LEFT AND RIGHT CONSOLES TO CAB
8
SCREW , Replaced By: N308676012015
11
NUT THROTTLE HOUSING AND BRACKET TO FRONT EXHAUST PIPE
11
NUT , Replaced By: N910113012006
14
PROTECTIVE PLATE FRONT EXHAUST PIPE,5 502998
14
PROTECTIVE PLATE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 422640, Replaced By: A6764900730, +001A6764901140, +002A1089900340, +002N000933008147, +002N913004008004
14
PROTECTIVE PLATE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6764900230
17
BRACKET HEAT SHIELD,5 502998
17
BRACKET , Replaced By: A6764901140
23
SCREW EXHAUST PIPE TO BRACKET
26
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
29
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
29
NUT , Replaced By: N913004008001
32
BRACKET FRONT EXHAUST PIPE,5 337342
35
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 422640
37
BRACKET FRONT EXHAUST PIPE TO BRACKET,5 528483
42
BRACKET ,5 528483
44
SCREW BRACKET TO FRAME SIDE MEMBER
44
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
46
NUT BRACKET TO SIDE MEMBER
46
NUT , Replaced By: N910113014001
48
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
48
CLAMP , Replaced By: N071555090502
50
SCREW BRACKET TO SIDE MEMBER
50
SCREW , Replaced By: N304017010002
53
NUT STRAP TO BRACKET
53
NUT , Replaced By: N910113010000
56
FLEXIBLE METAL TUBE FRONT EXHAUST PIPE TO MUFFLER,K 165446
59
CLAMP EXHAUST PIPE TO MUFFLER
59
CLAMP EXHAUST PIPE TO MUFFLER
62
SCREW BRACKET TO EXHAUST PIPE,5 528482
62
SCREW BRACKET TO EXHAUST PIPE,5 528482
65
WASHER EXHAUST MUFFLER TO STRAP
65
WASHER EXHAUST MUFFLER TO STRAP
65
WASHER , Replaced By: N000125008443
68
NUT , Replaced By: N913004008001
68
NUT , Replaced By: N913004008001
71
EXHAUST MUFFLER
71
EXHAUST MUFFLER , Replaced By: A6764900501
197
REAR EXHAUST PIPE (TAIL PIPE)
197
REAR EXHAUST PIPE ,5 7435535 803730, Replaced By: A6764928004
197
REAR EXHAUST PIPE ,5 743553-5 8000005 803730
197
REAR EXHAUST PIPE (TAIL PIPE),5 1522775 337342
197
REAR EXHAUST PIPE , EXHAUST STOCK OF OLD PARTS UP TO 5 185299, Replaced By: A6764920904
197
REAR EXHAUST PIPE ,5 152276, Replaced By: A6764920304, +001A6734921041, +001A6734921141, +002N000933008147, +001N000933010129, +002N007349008002, +001N071555090501, +002N913004008004, +001N913004010000
203
CLAMP BRACKET TO EXHAUST PIPE
206
HEXAGON HEAD BOLT. SCREW EXHAUST PIPE TO MUFFLER
206
SCREW , Replaced By: N304014008021
209
WASHER EXHAUST MUFFLER TO STRAP
209
WASHER , Replaced By: N000125008443
212
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
212
NUT , Replaced By: N913004008001
215
BRACKET EXHAUST PIPE SUSPENSION,5 743553-5 8000005 803730
221
SCREW BRACKET TO CROSS CONNECTION STRUT
221
SCREW , Replaced By: N304017008034
224
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
227
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
227
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
227
NUT , Replaced By: N913004008001
230
SUSPENSION PROTECTIVE PLATE TO EXHAUST PIPE
233
SCREWM 8X40
236
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
236
NUT , Replaced By: N913004008001
242
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
242
CLAMP , Replaced By: N071555090502
242
CLAMP ,5 152276, Replaced By: N071555090501, +001A6734921041, +001N000933010129, +001N913004010000
245
SCREW BRACKET TO CROSS CONNECTION STRUT
245
SCREW , Replaced By: N304017008034
251
HEXAGON NUT SCREENING PLATE,5 163561
251
NUT , Replaced By: A1201420072
999
SCREW PROTECTIVE PLATE TO CLAMP
999
SCREW COVERING TO SUPPORT
999
BRACKET AIR INTAKE PIPE,5 551665 TO BE ADAPTED DURING ASSEMBLY
999
RUBBER BUFFER EXHAUST PIPE REAR ON BATTERY CASE
999
BRACKET FUEL LINES TO TRANSMISSION
999
PROTECTIVE PLATE , NOT USED
999
SUPPORT EXHAUST MUFFLER TO BRACKET
999
WASHER , Replaced By: N006902011100
999
BRACKET EXHAUST PIPE REAR ON BATTERY CASE
999
BRACKET , Replaced By: A3524920141
999
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 227991, Replaced By: A6764902640
999
BRACKET HEAT SHIELD
999
BRACKET BRACKET TO FILTER BRACKET
999
SCREW , Replaced By: N304017008021
999
WASHER , Replaced By: N006902011102
999
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
999
WASHER HEAT SHIELD TO BRACKET
999
SCREW PIPE CLAMP
