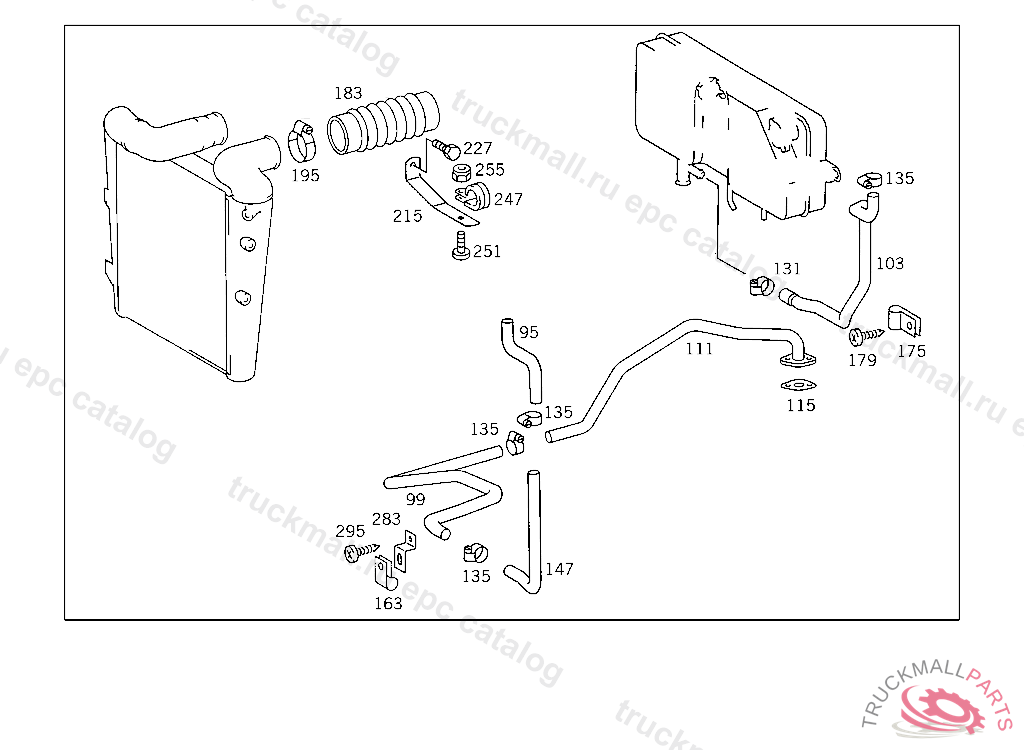

Поз.
Артикул
Описание
95
HOSE (HEATING LINE),FROM ENGINE TO HEATER
99
HOSE (HEATING LINE),FROM ENGINE TO HEATER
103
HOSE (HEATING LINE) FROM EXPANSION TANK TO HEATER
111
PIPE SOCKET AT ENGINE
115
GASKET HEATING PIPE TO ENGINE
131
CLAMP HOSE TO FITTING AND TO OIL TANK
131
CLAMP HOSE TO FITTING AND TO OIL TANK
135
CLAMP , Replaced By: N000000000667
135
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
135
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
135
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
147
PIPE (HEATING LINE),FROM ENGINE TO HEATER
163
CLAMP FEED LINE TO THERMOSTAT
175
CLAMP HOSE TO FIRE WALL
179
SHEET METAL SCREW BRACKET TO CAB FLOOR
183
HOSE , Replaced By: A6845011082
183
HOSE FROM ENGINE TO CHARGE AIR INTERCOOLER
183
HOSE FROM ENGINE TO CHARGE AIR INTERCOOLER
183
HOSE , Replaced By: A6845010882
195
CLAMP , Replaced By: N000000000675
195
CLAMP , Replaced By: A0059972990
195
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
215
BRACKET DE-AERATION LINE
227
SCREW , Replaced By: A4609900601
227
SCREW EXHAUST PIPE TO BRACKET
227
SCREW EXHAUST PIPE TO BRACKET
247
CLAMP , Replaced By: N916016010211
247
CLAMP , Replaced By: N000000001045
247
CLAMP CABLE HARNESS MOUNTING
247
CLAMP BRAKE HOSE BRACKET
251
SCREW , Replaced By: N000000001146
251
SCREW CLAMP MOUNTING M 6X16
255
NUT , Replaced By: N913004006001
255
NUT PUMP TO BRACKET
283
BRACKET COOLING WATER LINE TO FIRE WALL
295
SHEET METAL SCREW COVER PLATE TO COVER PLATE
999
CLAMP HOSE TO BRACKET,5 4227125 484924
999
CLAMP HOSE TO BRACKET,5 4227125 484924
999
THREADED CONNECTION. SCREW CONNECTION OIL DISTRIBUTION
999
BREATHER PIPE , Replaced By: A0002610283
999
BRACKET COOLING WATER LINE,5 4227125 484924
999
BRACKET , Replaced By: A6765010620
999
BRACKET , Replaced By: A6765010320
999
OIL PIPE. LINE RETURN LINE TO TRANSMISSION
