Поз.
Артикул
Описание

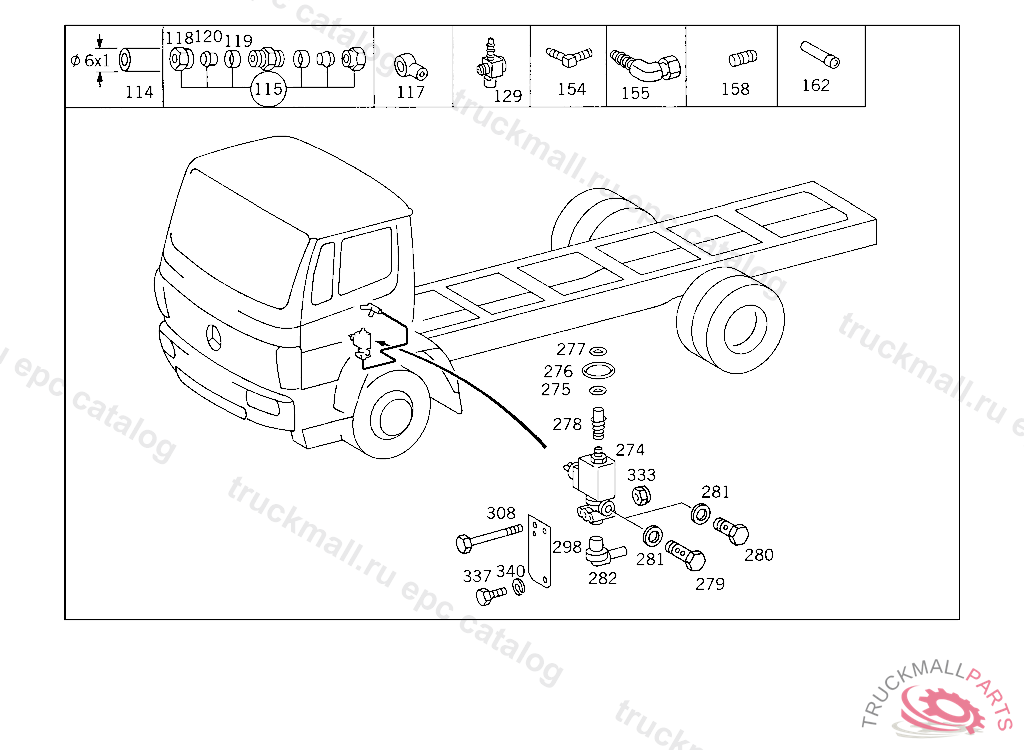

114
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
114
PLASTIC PIPE RISING PIPE 4X6 MM
114
PLASTIC PIPE RISING PIPE 4X6 MM
114
PLASTIC PIPE RISING PIPE 4X6 MM
115
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
117
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
118
UNION NUT
119
SLEEVE LEAK LINE
120
SEAL CONE
120
GLAND , Replaced By: A0019901667
120
GLAND , Replaced By: A0019901667
129
CONNECTOR DISTRIBUTOR TO CAB
154
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
155
ELBOW FITTING
155
ELBOW FITTING
158
PLUG DISTRIBUTOR,CONNECTIONS: "03,04,05",TO M 16,5 766894
162
FITTING DIAPHRAGM CYLINDER,CONNECTION:
162
FITTING DIAPHRAGM CYLINDER,CONNECTION:
162
FITTING DIAPHRAGM CYLINDER,CONNECTION:
162
FITTING DIAPHRAGM CYLINDER,CONNECTION:
274
VALVE (3/2-WAY SOLENOID VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
275
SEAL RINGWABCO
276
SEAL RINGWABCO
276
SEAL RINGWABCO
277
SEAL RINGWABCO
278
VALVE PART
278
VALVE PART
279
HOLLOW SCREW LINE CONNECTION
280
HOLLOW SCREW HEATING CONNECTION
280
HOLLOW SCREW HEATING CONNECTION
280
HOLLOW SCREW HEATING CONNECTION
281
SEAL RING LINE CONNECTION
281
SEAL RING LINE CONNECTION
282
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
282
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
282
BREATHER , Replaced By: A3933280065
298
BRACKET SOLENOID VALVE,5 7668945 800000-5 806949
308
SCREW , Replaced By: N000933008134
308
SCREW REAR AXLE REGULATING SOLENOID VALVE M 8X95
308
SCREW REAR AXLE REGULATING SOLENOID VALVE M 8X95
308
SCREW REAR AXLE REGULATING SOLENOID VALVE M 8X95
308
SCREW REAR AXLE REGULATING SOLENOID VALVE
308
SCREW AT SIDE MEMBER,REAR M 8X135
308
SCREW FRONT AXLE REGULATING SOLENOID VALVE
308
SCREW , Replaced By: N304017008043
308
SCREW VALVE TO BRACKET M 8X55
333
NUT , Replaced By: N913004008001
333
NUT , Replaced By: N913004008001
337
SCREW PUMP TO BRACKET
337
SCREW , Replaced By: N304017006016
340
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
340
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
CONNECTOR 75 DEGREES
999
CONNECTOR BRAKE POWER REGULATOR,CONNECTION: "30"
999
TEST CONNECTION
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
SEAL RING , Replaced By: A0009940747
999
LOCK RING LINE CONNECTION
999
LOCK , Replaced By: A0009945448
999
LOCK LINE CONNECTION
999
SCREW. UNION SCREW , Replaced By: A0009973734
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SCREW. UNION SCREW LINE CONNECTION
999
CONNECTOR FITTING WITH PROTECTION AGAINST TORSION TO M 22
999
T-FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "21,22"
999
VALVE
999
VALVE (SOLENOID VALVE)
999
FITTING 2/2-WAY VALVE,CONNECTION: "20",5 374133
999
FITTING AIR RESERVOIR,CONNECTION: "26", NOT USED
999
SEAL RING , NOT USED
999
LOCK VALVE TO BRACKET
999
LOCK LEFT
999
LOCK RIGHT
999
BRACKET LEFT
999
BRACKET RIGHT
999
SCREW VALVE TO CAB M 8X85
999
NUT COMBINATION CYLINDER,CONNECTION: "12"
