Поз.
Артикул
Описание

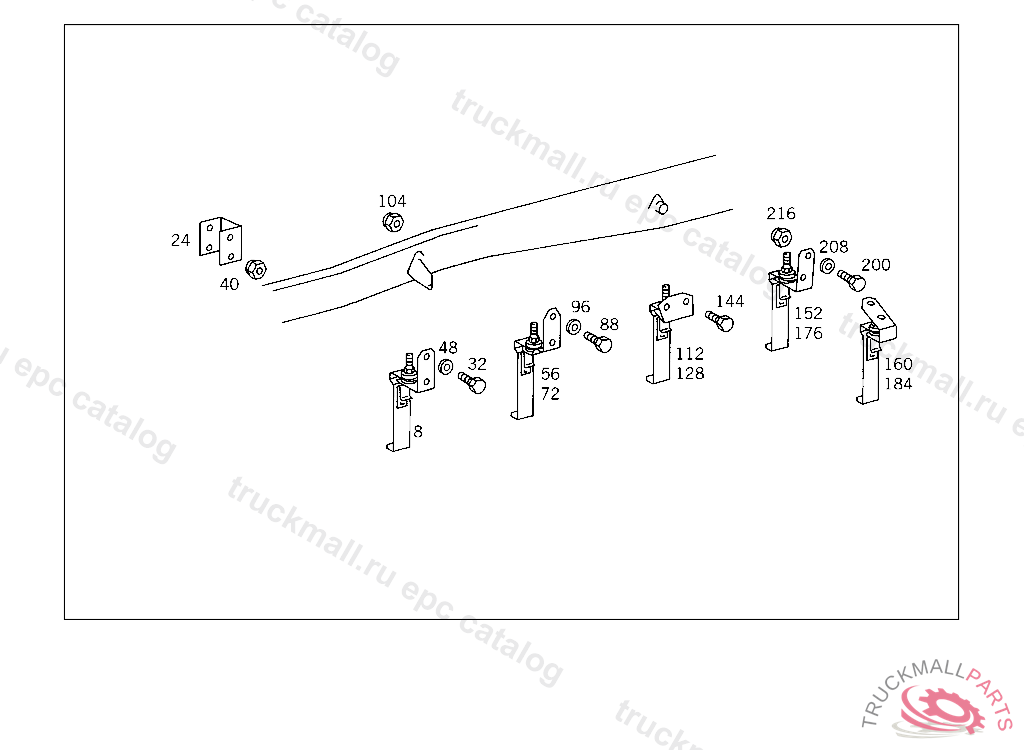

8
BRACKET FRONT ANTINOISE CAPSULE
24
BRACKET LEFT FRONT ANTINOISE CAPSULE
32
SCREW , Replaced By: N308676012026
32
SCREW CONSOLE TO SIDE MEMBER
32
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
40
NUT , Replaced By: N910113010000
40
NUT SUPPORT TO SIDE MEMBER
40
NUT STRAP TO BRACKET
48
WASHER BRACKET TO FRAME
48
WASHER , Replaced By: N006902011100
48
WASHER , Replaced By: N006902011102
48
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
56
BRACKET REAR ANTINOISE CAPSULE TO FRONT AXLE CROSS MEMBER
72
BRACKET REAR ANTINOISE CAPSULE TO FRONT AXLE CROSS MEMBER
88
SCREW , Replaced By: N308676012026
88
SCREW CONSOLE TO SIDE MEMBER
88
SCREW CONSOLE TO SIDE MEMBER
88
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
88
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
88
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
96
WASHER BRACKET TO FRAME
104
NUT SUPPORT TO SIDE MEMBER
112
BRACKET LEFT REAR ANTINOISE CAPSULE
128
BRACKET RIGHT REAR ANTINOISE CAPSULE
144
SCREW CONSOLE TO SIDE MEMBER
152
BRACKET LEFT REAR ANTINOISE CAPSULE
152
BRACKET LEFT REAR ANTINOISE CAPSULE
160
BRACKET LEFT BOTTOM ANTINOISE CAPSULE TO CAB CONSOLE
176
BRACKET RIGHT TOP ANTINOISE CAPSULE TO CAB
184
BRACKET RIGHT TOP ANTINOISE CAPSULE TO CAB
200
SCREW , Replaced By: N308676012026
200
SCREW END PIECE TO EXHAUST PIPE M 10X25
200
SCREW CONSOLE TO SIDE MEMBER
200
HEXAGON HEAD BOLT BRACKET TO BRACKET
200
HEXAGON HEAD BOLT BRACKET TO BRACKET
200
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
208
WASHER BRACKET TO FRAME
216
NUT , Replaced By: N910113010000
216
NUT STRAP TO BRACKET
216
NUT SUPPORT TO SIDE MEMBER
999
BRACKET LEFT BOTTOM ANTINOISE CAPSULE TO CAB CONSOLE,K 019962 BM 673.010/.011/.012/.013/.014/.042
999
BRACKET RIGHT TOP ANTINOISE CAPSULE TO CAB,K 019962 BM 673.010/.011/.012/.013/.014/.042
999
LOCK ANTINOISE CAPSULE TO ANTINOISE CAPSULE
999
BRACKET ANTINOISE CAPSULE
999
SHIM ANTINOISE CAPSULE
999
BRACKET LEFT REAR ANTINOISE CAPSULE
999
BRACKET LEFT BOTTOM ANTINOISE CAPSULE TO CAB CONSOLE
999
NUT , Replaced By: N913023010002
999
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
