Поз.
Артикул
Описание

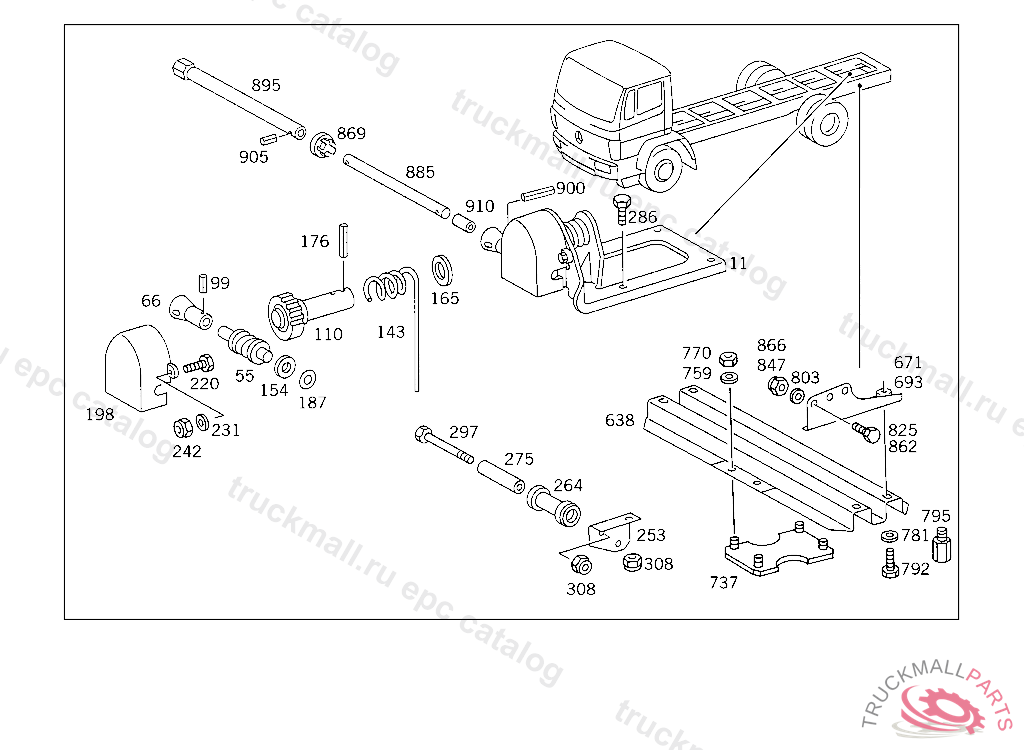

11
SPARE WHEEL HOIST
11
SPARE WHEEL HOIST , Replaced By: A6734001339
55
WORM
55
WORM ,5 127459, Replaced By: A6204030085, +001A6204030683
66
BUSHING ,K 156667
66
BUSHING
66
BUSHING , Replaced By: A6734030250
99
CLAMPING SLEEVE CRANK TO BUSHING
110
STOP GEAR ,5 127460
110
STOP GEAR ,5 127459, Replaced By: A6204030383, +001A6204030085
143
WIRE CABLE. ROPE , ORDER BY THE METER, Replaced By: N083334008000
143
CABLE , Replaced By: N083331008500
143
WIRE CABLE
154
WASHER WORM AND SHAFT TO BRACKET
154
WASHER WORM AND SHAFT TO BRACKET,5 127459
154
WASHER WORM AND RATCHET WHEEL TO BRACKET
165
FITTED WASHER WORM AND SHAFT TO BRACKET
165
WASHER WORM AND SHAFT TO BRACKET
176
CLAMPING PIN BRACKET TO SUPPORT
176
CLAMPING SLEEVE , Replaced By: N308752008000
187
DISC SPRING WORM AND SHAFT TO BRACKET
198
COVERING PROTECTION PLATE TO BRACKET
220
SCREW LICENSE PLATE TO BRACKET
220
SCREW , Replaced By: N304017006020
220
SCREW COVER PLATE TO BRACKET
231
WASHER , Replaced By: N009021006208
231
WASHER COMPRESSED AIR LINE TO BRACKET
242
NUT PUMP TO BRACKET
242
NUT , Replaced By: N913004006001
253
ANGLE LEFT
253
ANGLE RIGHT
253
ANGLE RIGHT
253
ANGLE LEFT
264
BUSHING SPARE WHEEL HOIST TO CROSS MEMBER
275
TUBE SPARE WHEEL HOIST TO CROSS MEMBER
286
SCREW END PIECE TO EXHAUST PIPE M 10X25
297
SCREW SPARE WHEEL HOIST TO CROSS MEMBER M 10X120
297
SCREW , Replaced By: N000931010462
308
NUT , Replaced By: N910113010000
308
NUT STRAP TO BRACKET
638
BRACKET
671
BRACKET SPARE WHEEL MOUNTING,LEFT
693
BRACKET SPARE WHEEL MOUNTING,RIGHT
737
STAY , Replaced By: A6744000291
737
STAY ,5 365761
759
WASHER BRACKET TO FRAME
759
WASHER , Replaced By: N000125017016
770
NUT , Replaced By: N308673016001
770
NUT SPARE WHEEL CARRIER TO SIDE MEMBER
781
WASHER BRACKET TO FRAME
781
WASHER , Replaced By: N000125017016
792
SCREW BRAKE LINE COUPLING TO REAR CROSS MEMBER
795
SCREW SUPPORT TO SPARE WHEEL CARRIER,5 207473
803
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
803
WASHER , Replaced By: N000125015019
825
SCREW BRACKET TO SIDE MEMBER
847
NUT BRACKET TO SIDE MEMBER
847
NUT , Replaced By: N910113014001
862
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
866
NUT BRACKET TO SIDE MEMBER
866
NUT , Replaced By: N910113014001
869
BUSHING CRANK
885
PIPE
895
SHAFT
900
CLAMPING SLEEVE TUBE AND SHAFT TO JOINT SLEEVE
905
CLAMPING SLEEVE TUBE AND SHAFT TO JOINT SLEEVE 6X22
910
HOSE TUBE AND SHAFT TO JOINT SLEEVE
999
WASHER RADIATOR TO RUBBER MOUNTING
999
WASHER , Replaced By: N000125010532
999
PLATE SPARE WHEEL HOIST TO CROSS MEMBER
999
CRANK SPARE WHEEL HOIST
