Поз.
Артикул
Описание

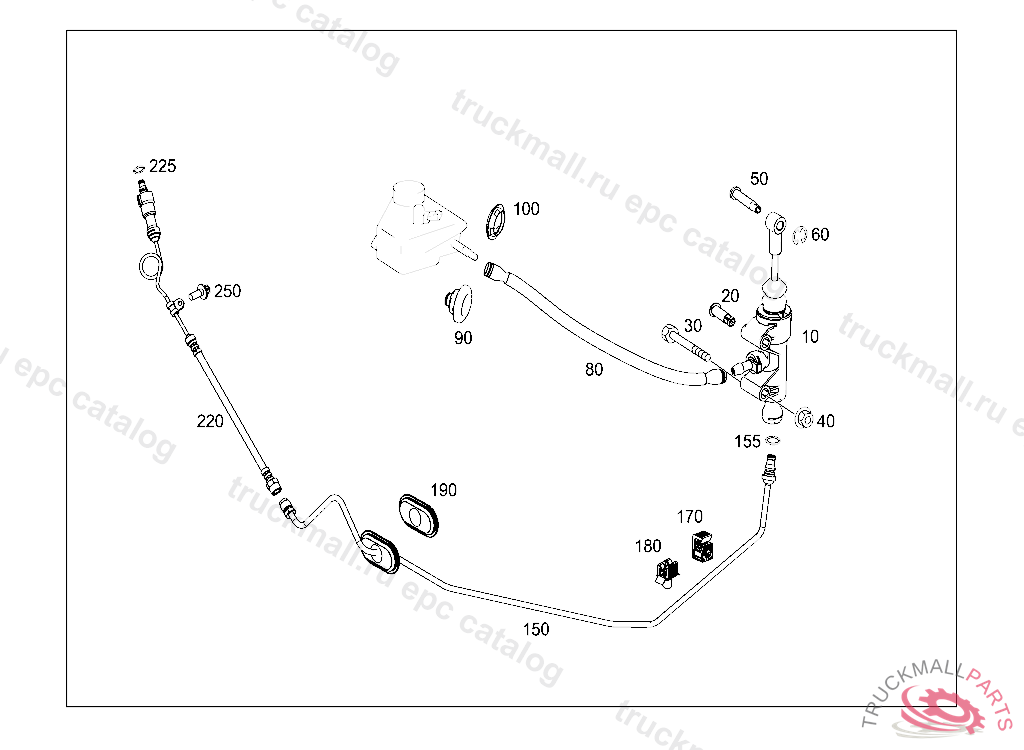

10
MASTER CYLINDER
10
CLUTCH MASTER CYLINDER , A 84276320130131 L 06691320130131 V 00521520130131 G 02050520120930
10
MASTER CYLINDER
20
PIN CLUTCH PEDAL
30
SCREW. HEXAGON HEAD BOLT CONTROL MODULE TO SUPPORT PLATE M6X50
40
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
50
PIN CLUTCH MASTER CYLINDER TO CLUTCH PEDAL
60
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
80
HOSE FROM RESERVOIR TO MASTER CYLINDER
90
BOOT
100
PLUG CROSS MEMBER IN THE REAR, RIGHT 25 MM
150
LINE FROM MASTER CYLINDER TO SEPARATION POINT
150
CLUTCH LINE FROM MASTER CYLINDER TO SEPARATION POINT
155
O-RING CLUTCH LINE 6.07 X 1.78
170
LINE HOLDER CLUTCH LINE TO TUNNEL
180
LINE HOLDER CLUTCH LINE TO FIREWALL
190
STOPPER WASHER CLUTCH LINE IN LEGROOM 25X55MM
220
CLUTCH LINE SEPARATION POINT TO TRANSMISSION
225
O-RING CLUTCH LINE 6.07 X 1.78
250
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
