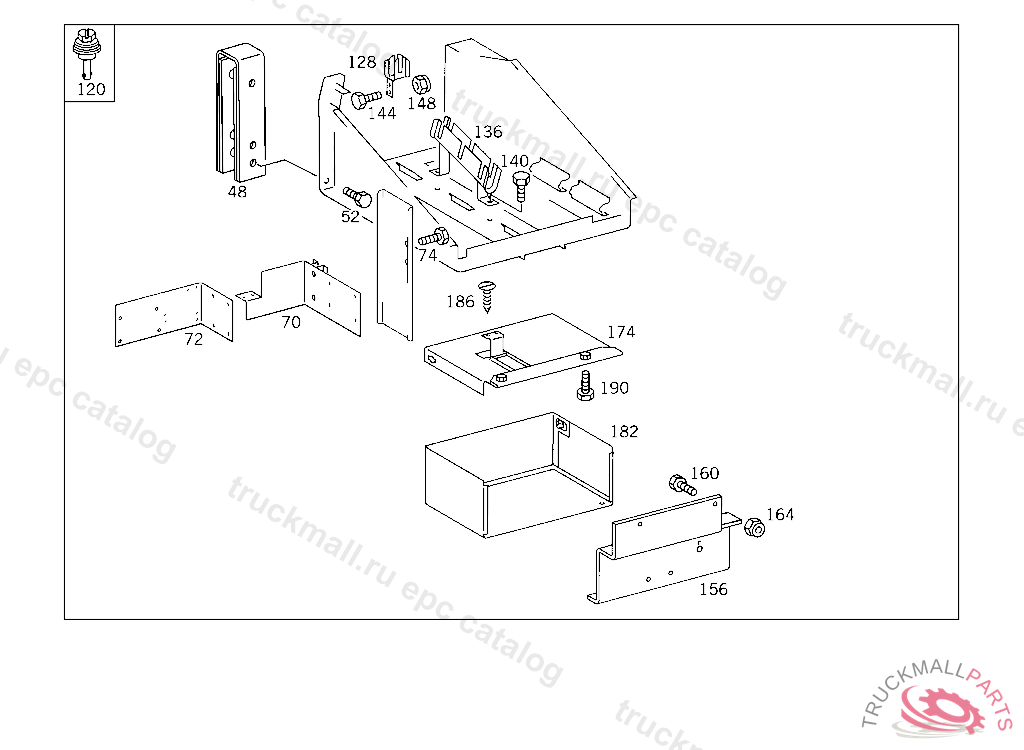

Поз.
Артикул
Описание
48
CONSOLE BATTERY SUPPORT
52
SCREW BRACKET TO BRACKET
52
SCREW , Replaced By: N910142008001
52
SCREW PIPE CLAMP
52
SCREW , Replaced By: N304017008021
70
BRACKET BATTERY CUT-OFF,K 173438
70
BRACKET BATTERY CUT-OFF,K 173438
70
BRACKET BATTERY CUT-OFF,K 173438
72
BRACKET BATTERY CUT-OFF
74
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
74
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
74
SCREW , Replaced By: N304017008016
120
LOCKING PIN
120
LOCKING PIN ANTINOISE CAPSULE
120
LOCKING PIN ANTINOISE CAPSULE
128
SUPPORT CABLE GUIDE DUCT
136
SUPPORT CABLE GUIDE DUCT
140
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
140
SCREW , Replaced By: N304017008016
144
SCREW PUMP TO BRACKET
144
SCREW , Replaced By: N304017006016
148
NUT PUMP TO BRACKET
148
NUT , Replaced By: N913004006001
156
BRACKET BATTERY/APPARATUS SUPPORT
156
BRACKET , Replaced By: A6735403473
160
SCREW PIPE CLAMP
160
SCREW , Replaced By: N304017008021
164
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
164
NUT , Replaced By: N913004008001
174
COVER BATTERY/APPARATUS SUPPORT
182
COVER BATTERY/APPARATUS SUPPORT
186
SCREW COVER TO BATTERY SUPPORT M 6X16
190
SCREW COVER PLATE TO COVER PLATE M 6 X 12
190
SCREW , Replaced By: N304017006018
190
SCREW PUMP TO BRACKET
190
SCREW , Replaced By: N304017006016
999
BRACKET ,K 173439
999
BRACKET LEFT
999
BRACKET RIGHT
999
ANGLE LEFT
999
ANGLE RIGHT
999
SCREW AIR INTAKE PIPE TO BRACKET
999
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
999
NUT STRAP TO BRACKET
999
NUT , Replaced By: N910113010000
