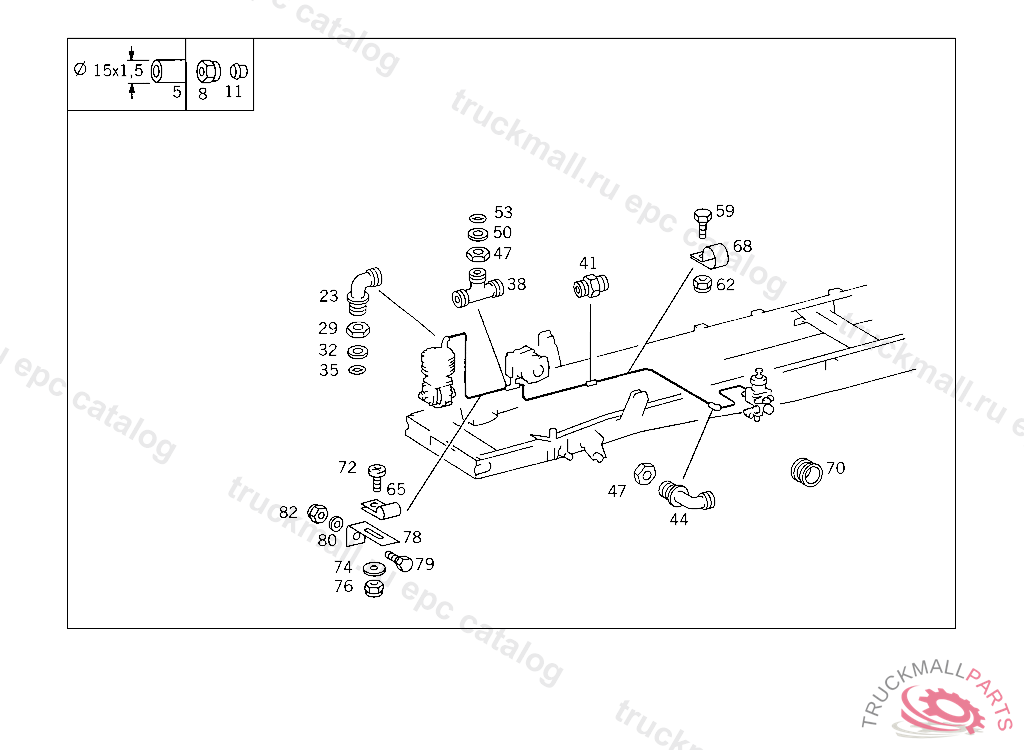

Поз.
Артикул
Описание
5
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
8
UNION NUT LINE CONNECTION
11
GLAND LINE CONNECTION
23
ELBOW FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20", Replaced By: A6209900071
23
ELBOW FITTING , Replaced By: A0039901671
29
NUT SUCTION LINE TO OIL PUMP
32
THRUST RING SUCTION LINE TO OIL PUMP
35
SEAL RING LINE CONNECTION
41
BULKHEAD FITTING THROUGH SIDE MEMBER
47
NUT CHECK VALVE TO AIR RESERVOIR
50
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
50
THRUST RING CHECK VALVE TO AIR RESERVOIR
53
SEAL RING LINE CONNECTION
59
SCREW , Replaced By: A0099900101
59
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
59
SCREW , Replaced By: N000933008337
62
NUT , Replaced By: N913004008001
62
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
62
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
65
CLAMP DELIVERY AND SUCTION LINES TO STEERING
68
CLAMP HOSE TO BRACKET 25/20,5 206397
68
CLAMP , Replaced By: N916016025200
70
GROMMET LINE MOUNTING
72
SCREW CLAMP TO BRACKET
72
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
74
WASHER , Replaced By: N009021006208
74
WASHER COMPRESSED AIR LINE TO BRACKET
76
NUT , Replaced By: N913004006001
76
NUT PUMP TO BRACKET
999
CONNECTOR DISTRIBUTOR TO FRAME
999
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
999
SEAL RING
999
CONNECTOR DISTRIBUTOR TO CAB
999
CONNECTOR , Replaced By: A0019903978
999
CONNECTOR DISTRIBUTOR TO FRAME
