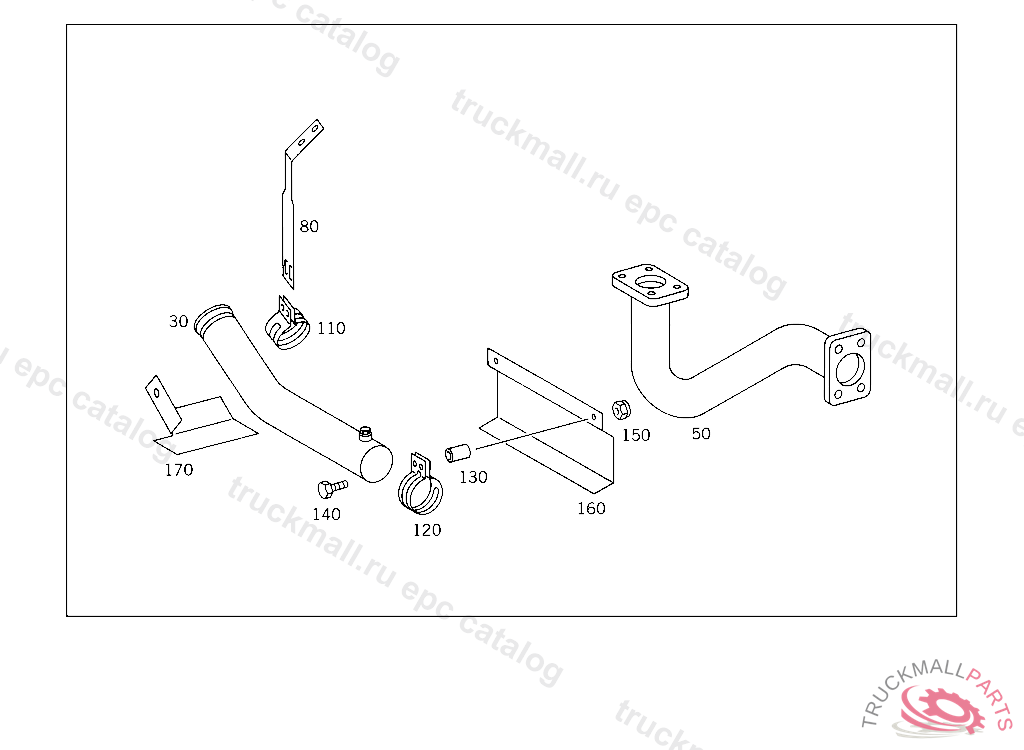

Поз.
Артикул
Описание
30
EXHAUST PIPE FRONT
50
EXHAUST PIPE FRONT
80
BRACKET FRONT EXHAUST PIPE
110
CLAMP AT CROSS MEMBER
110
CLAMP EXHAUST PIPE TO BRACKET
120
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
120
CLAMP , Replaced By: N071555100501
120
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
130
SPACER TUBE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
130
SPACER TUBE CLAMP TO BRACKET
140
SCREW EXHAUST PIPE TO BRACKET
150
NUT EXHAUST PIPE TO BRACKET
150
NUT EXHAUST PIPE TO BRACKET
160
PROTECTIVE PLATE FUEL TANK
170
PROTECTIVE PLATE (HEAT SHIELD)
999
EXHAUST PIPE FRONT
