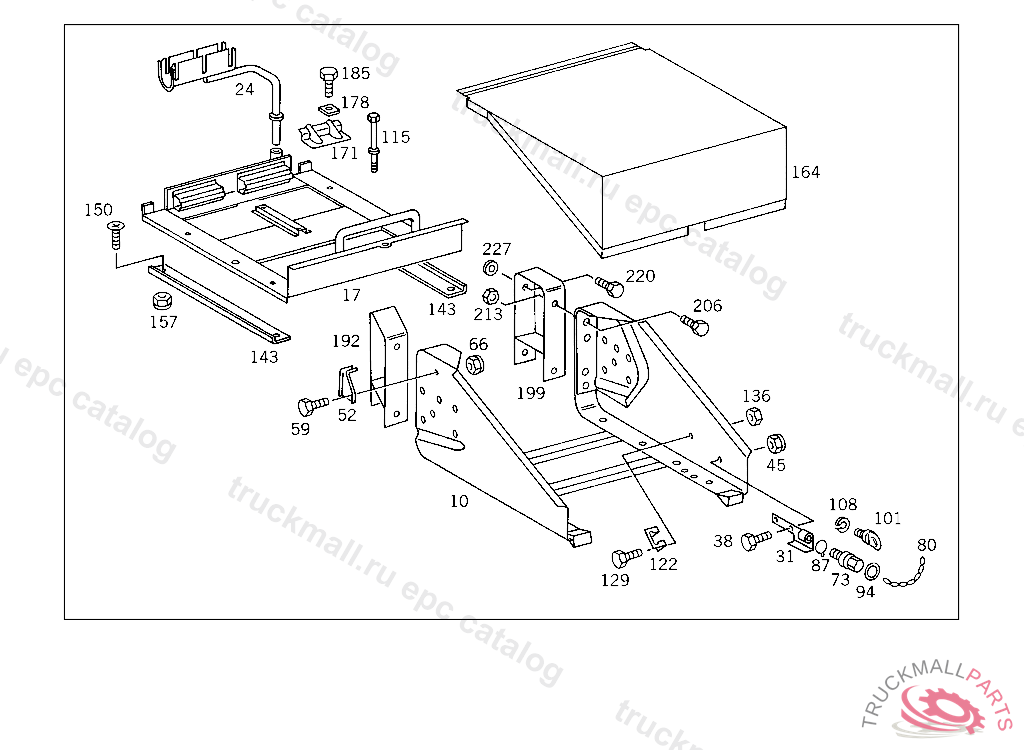

Поз.
Артикул
Описание
10
BATTERY SUPPORT
17
BATTERY SUPPORT
24
RAIL
31
STOP FRONT
31
STOP REAR
38
SCREW BRACKET TO SIDE MEMBER
45
NUT STRAP TO BRACKET
45
NUT , Replaced By: N910113010000
52
BRACKET BATTERY/APPARATUS SUPPORT,RIGHT
52
BRACKET BATTERY/APPARATUS SUPPORT,LEFT
59
SCREW LICENSE PLATE TO BRACKET
59
SCREW , Replaced By: N304017006020
66
NUT , Replaced By: N913004006001
66
NUT PUMP TO BRACKET
73
SCREW BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
80
CHAIN BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
87
EYE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT, NOT USED
94
RING BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
101
EYE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
108
LOCK WASHER BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
115
SCREW
122
ANGLE
129
SCREW , Replaced By: N304017006016
129
SCREW PUMP TO BRACKET
136
NUT , Replaced By: N913004006001
136
NUT PUMP TO BRACKET
143
RAIL REAR
143
RAIL FRONT
150
SCREW BRACKET TO APPARATUS SUPPORT
157
NUT , Replaced By: N910113010000
157
NUT STRAP TO BRACKET
164
COVER
171
ANGLE BATTERY MOUNTING, FROM IDENT NO. 5 419107-5 757662 ALS INSTALLED ON 5 800000-5 806588
178
WASHER BATTERY MOUNTING, FROM IDENT NO. 5 419107-5 757662 ALS INSTALLED ON 5 800000-5 806588
178
SPACER WASHER , Replaced By: A1169901440
185
SCREW BATTERY MOUNTING
185
SCREW , Replaced By: N304017008016
185
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
192
BATTERY SUPPORT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 515831, Replaced By: A6735401051
192
SUPPORT FRONT
199
BRACKET REAR
199
BATTERY SUPPORT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 515831, Replaced By: A6735410740
206
SCREW , Replaced By: N308676014020
206
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
213
NUT BRACKET TO SIDE MEMBER
213
NUT , Replaced By: N910113014001
220
SCREW , Replaced By: N308676012026
220
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
227
WASHER BRACKET TO FRAME
999
RUBBER BUFFER
999
STOP BATTERY CASE AND BRACKET TO FRAME
999
STOP BATTERY CASE AND BRACKET TO FRAME
