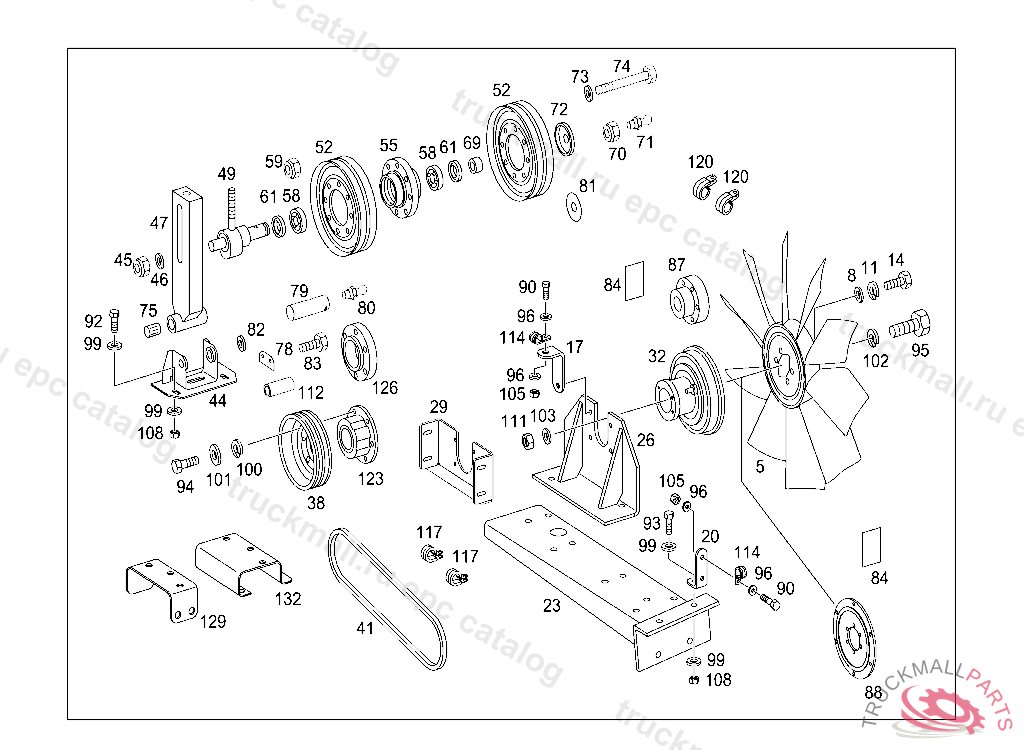

Поз.
Артикул
Описание
5
FAN"KYSOR"
5
FAN"KYSOR CADILLAC"
5
FAN
8
WASHER VALVE TO BRACKET 5/16-.640
8
WASHER SHIFTING ROD 3/8
11
SPRING WASHER 3/8
14
SCREW3/8-16
14
SCREW AIR RESERVOIR BRACKET TO FRAME 3/8-16X1/4 FG 8
14
SCREW3/8
14
SCREW BRACKET TO STRUT 5/16-18
14
PART NAME MISSING SCREW
17
BRACKET
20
BRACKET LINE MOUNTING
23
SUPPORT VENTILATOR
23
SUPPORT VENTILATOR
26
BEARING BRACKET
26
BRACKET FAN COUPLING
29
SUPPORTING PLATE FAN COUPLING
32
COUPLING FAN COUPLING
32
COUPLING FAN COUPLING
32
COUPLING FAN COUPLING 12V
32
COUPLING FAN COUPLING 12V
38
PULLEY
38
PULLEY
38
PULLEY
38
PULLEY
41
V-BELT1420 MM
41
V-BELT , Replaced By: A0069972092
41
V-BELT SET2 PIECES 12.5X1775
41
V-BELT1244MM,M 005445(BM 685521), M 005470(BM 685558)
41
V-BELT1445 MM
41
V-BELT1219 MM
41
V-BELT1270 MM,M 026123
41
V-BELT1880MM,M 005445(BM 685521), M 005470(BM 685558)
41
V-BELT FAN DRIVE,D 180260
41
V-BELT1699MM
41
V-BELT1497MM,M 006540M 022990
41
V-BELT1321MM,M 026122
41
V-BELT1480MM,M 006539
41
V-BELT1372MM,M 026123
41
V-BELT1625MM
41
V-BELT1194MM
41
V-BELT1930MM, Replaced By: A6859930195
44
BEARING BRACKET PULLEY
45
NUT TIGHTENER PULLEY TO LEVER M16X1,5,D 124754
46
WASHER , Replaced By: N000125017016
47
SUPPORT (TIGHTENER ARM)
49
LEVER BELT TIGHTENER PULLEY
52
PULLEY BELT TIGHTENER PULLEY
55
HUB BELT TIGHTENER PULLEY
58
BALL BEARING BELT TIGHTENER PULLEY
59
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
61
SEAL RING BELT TIGHTENER PULLEY
69
SPACER TUBE BELT TIGHTENER PULLEY
70
NUT TIGHTENER PULLEY TO LEVER M16X1,5,D 124754
71
GREASE NIPPLE INTERMEDIATE LEVER
72
EXPANSION PLUG BELT TIGHTENER PULLEY
73
WASHER , Replaced By: N000125008443
74
SCREW PLUG SOCKET TO FRAME
75
NEEDLE BEARING (TIGHTENER ARM)
78
LOCK
79
PIN
80
GREASE NIPPLE
81
LOCK BELT TIGHTENER PULLEY
82
WASHER (TIGHTENER ARM)
83
SCREW CONNECTOR TO CAB M6X8
84
TYPE DESIGNATION
87
SPACER RING
87
SPACER RING
88
SPACER RING
90
SCREW CABLE MOUNTING 1/4-20
92
SCREW AIR RESERVOIR BRACKET TO FRAME 3/8-16X1/4 FG 8
92
PART NAME MISSING BATTERY CASE TO FRAME PARAFUSO
93
PART NAME MISSING. SCREW3/8-16
93
SCREW AT SHIFTING ROD 3/8-16
93
SCREW3/8
94
SCREW ANGLE TO CROSS MEMBER M 10X30
94
SCREW CROSS MEMBER TO SIDE MEMBERS
95
PART NAME MISSING SCREW
95
PART NAME MISSING. SCREW3/8-16
95
SCREW3/8-16
96
WASHER HAND BRAKE VALVE 1/4
99
WASHER
99
PART NAME MISSING CONSOLE TO FRAME 1/2
100
LOCK WASHER , Replaced By: N912004010102
101
WASHER10
102
SPRING WASHER 3/8
103
WASHER SHIFTING ROD 3/8
105
NUT COMPRESSED AIR LINE TO CROSS MEMBER1/4,M 033721
108
PART NAME MISSING CONSOLE TO FRAME 1/2 -13
111
NUT BRACKET TO SIDE MEMBER,XB209706
111
PART NAME MISSING NUT
111
NUT. PART NAME MISSING NUT
112
BUSHING
114
CLAMP
117
CLAMP ,M 026117
117
CLAMP , Replaced By: QT01-27263-000
117
CLAMP CABLE HARNESS TO SUPPORT
117
CLAMP0.250
120
CLAMP
120
LOOM TIE
120
CLAMP. LOOM TIE
120
LOOM TIE BRAKE HOSE FIXTURE
123
INTERMEDIATE PIECE
126
SPACER RING
126
INTERMEDIATE PIECE , Replaced By: A9042050051
129
BRACKET ,M 005592
132
BRACKET
132
BRACKET
