Mercedes
›
BUS
›
OMC 1419,1423,1425,1426,1623,1625,1626
›
685.521
›

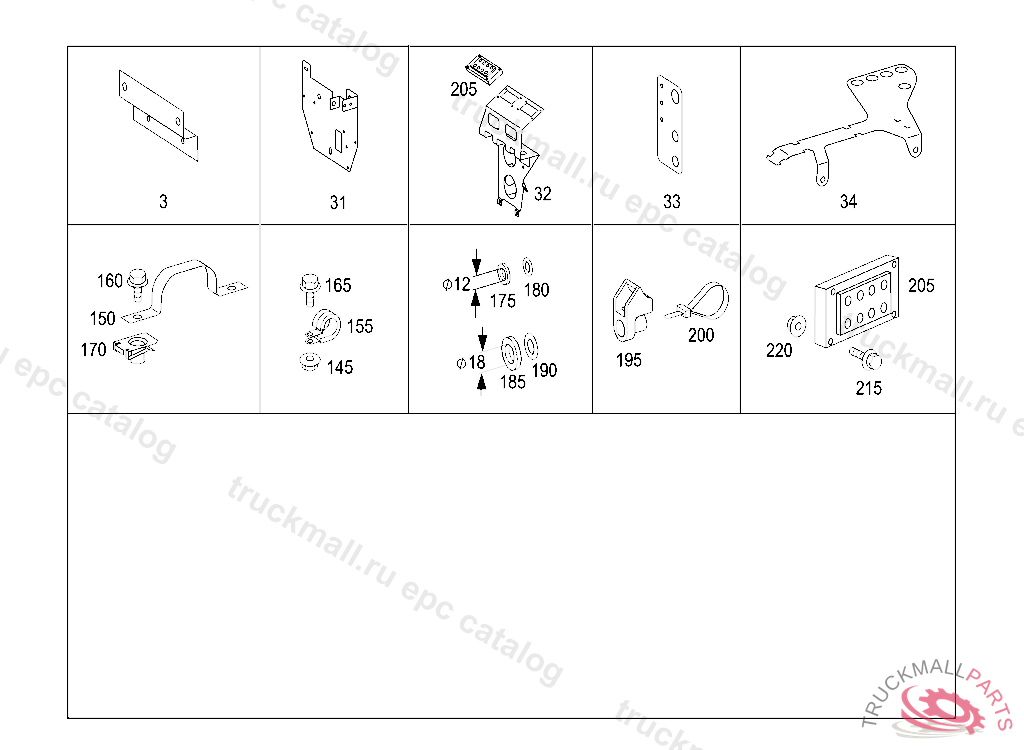

42 BRAKES
›
150 MOUNTING OF LINES,HOSES,TEST CONNECTIONS IL. 2
Mercedes A6344325640 - ДЕРЖАТЕЛЬ
OMC 1419,1423,1425,1426,1623,1625,1626 685.521
42 BRAKES - 150 MOUNTING OF LINES,HOSES,TEST CONNECTIONS IL. 2
Поз.
Артикул
Описание
3
HLM6854230023
BRACKET
31
A6344200368
SUPPORT
32
A6344300539
SUPPORT
33
A6344210221
PROTECTIVE PLATE
34
A6344325640
BRACKET BRAKE HOSE
34
A6344322940
BRACKET , Replaced By: A6344325640
145
N913023006002
NUT BRACKET TO FIRE WALL
150
N072573001008
CLAMP , 014426
155
N916016015202
CLAMP LINE MOUNTING
160
N910105005000
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
165
N910105006004
SCREW , Replaced By: N914146006102
170
A0049941645
LOCK NUT. SPRING NUT MOUNTING PARTS
175
A0009940103
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
180
A0019875046
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
185
A0001310062
THRUST RING THROTTLE VALVE,CONNECTIONS: "1,2"
190
A0009971548
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
195
A0109883378
RETAINING CLIP
200
A0029972390
CABLE TIE , Replaced By: A0049971890
205
A6298910011
PLATE
215
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
220
N913023008003
NUT HORN TO BRACKET M8
999
QTF0001218000
HOSEPH 63NTA4
999
QTF0001217000
HOSEPH 60NTA4
999
QT2309432100
SCREW CABLE MOUNTING 1/4-20
999
QT2309130001
BRACKET
999
A6343230226
CLAMP
