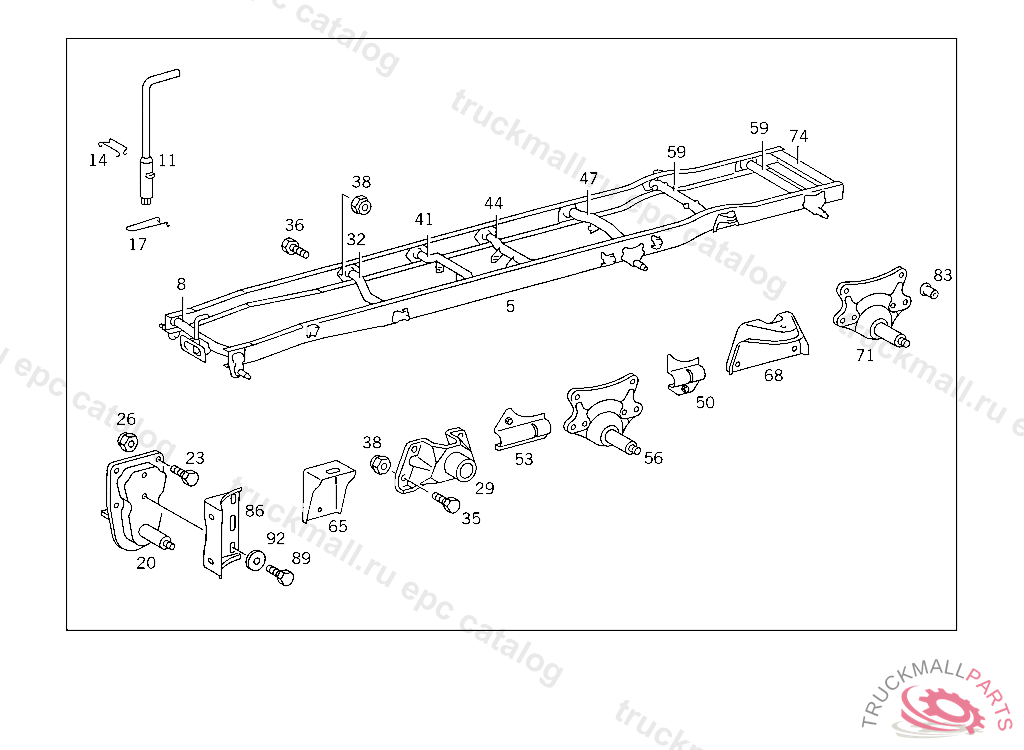

Поз.
Артикул
Описание
5
8
CROSS MEMBER FRONT
11
COUPLING PIN
17
LOCKING SPRING BOTTOM
20
REAR SUBFRAME (FRONT SPRING BRACKET),FRONT
23
SCREW HAND PUMP TO BRACKET
23
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X35
26
NUT BRACKET TO SIDE MEMBER,XB209706
26
NUT ALTERNATOR TO SUPPORT
29
REAR SUBFRAME (FRONT SPRING BRACKET),REAR
29
REAR SUBFRAME , Replaced By: A6883207070
32
CROSS MEMBER WITH BRACKET N0.3
35
SCREW BRACKET TO FRAME M 10X28
35
SCREW HAND PUMP TO BRACKET
36
SCREW BRACKET TO BUMPER,LEFT M 10X25
38
NUT BRACKET TO SIDE MEMBER,XB209706
44
CROSS MEMBER
47
CROSS MEMBER REAR SPRING FRONT BRACKET NO. 4
50
BRACKET
53
BRACKET
56
SPRING BRACKET (REAR SPRING BRACKET),FRONT
59
CROSS MEMBER SHOCK ABSORBER NO.7
59
CROSS MEMBER SHOCK ABSORBER NO.6
68
BRACKET HELPER SPRING
68
BRACKET HELPER SPRING
71
SPRING BRACKET (REAR SPRING BRACKET),REAR M18X1,5 MM
74
CROSS MEMBER825 MM
83
RIVET FRAME TRUSS TO SIDE MEMBER
83
RIVET14X42 MM
83
RIVET CROSS MEMBER TO SIDE MEMBERS 10X30 MM, TO BE ADAPTED DURING ASSEMBLY
83
RIVET12X45 MM
83
RIVET10X28 MM, TO BE ADAPTED DURING ASSEMBLY
83
83
RIVET10X32 MM, TO BE ADAPTED DURING ASSEMBLY
83
RIVET10X34 MM
83
RIVET10X24 MM, TO BE ADAPTED DURING ASSEMBLY
83
RIVET GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS 10X26 MM
83
RIVET10X36 MM
83
RIVET REFLECTOR TO BRACKET
83
RIVET14X40 MM
83
RIVET REAR CROSS MEMBER 12X42 MM
83
RIVET CONSOLE TO SIDE MEMBER
86
89
SCREW , Replaced By: N304017010040
92
WASHER GROUND CABLE
