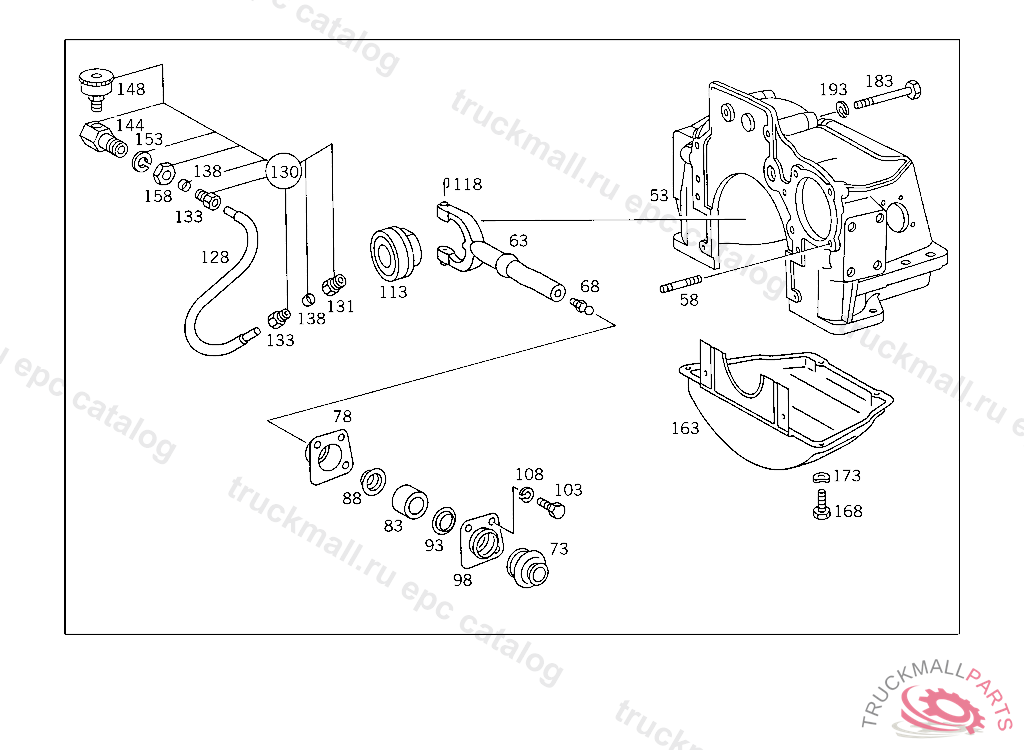

Поз.
Артикул
Описание
53
BELL HOUSING
58
STUD STARTING MOTOR MOUNTING
63
RELEASE LEVER (RELEASE YOKE)
68
BALL PIVOT RELEASE YOKE
68
BALL PIVOT RELEASE YOKE
73
BOOT RELEASE YOKE
78
BRACKET INSIDE
83
BEARING RELEASE YOKE
83
BEARING RELEASE YOKE
88
SEAL RING RELEASE YOKE
88
SEAL RING RELEASE YOKE
93
SEAL RING RELEASE YOKE
93
SEAL RING RELEASE YOKE
98
BRACKET OUTSIDE
103
SCREW PIPE CLAMP
103
SCREW , Replaced By: N304017008021
108
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
113
RELEASE BEARING
113
RELEASE BEARING , Replaced By: A0012509315
113
RELEASE BEARING , Replaced By: A0012509315
118
SPRING LOCK RELEASE YOKE TO RELEASE BEARING
128
HOSE RELEASE BEARING LUBRICATION
130
GREASE NIPPLE (PARTS KIT) RELEASE BEARING LUBRICATION
131
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
133
UNION SCREW RELEASE COLLAR LUBRICATION
138
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
144
GREASE NIPPLE RELEASE COLLAR LUBRICATION
148
CAP RELEASE BEARING LUBRICATION
153
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
158
NUT RELEASE BEARING LUBRICATION
158
NUT , Replaced By: N308675014000
158
NUT , Replaced By: N308675014002
163
HOUSING ,5 332726, Replaced By: A6762500105, +001A3522500055
163
HOUSING , Replaced By: A6762510002
163
BELL HOUSING LOWER PART,5 332727 SEAL DURING ASSEMBLY
168
SCREW BELL HOUSING LOWER PART TO BELL HOUSING
168
HEXAGON HEAD BOLT , Replaced By: N000000002270
168
SCREW , Replaced By: N910106006006
173
SPRING WASHER LICENSE PLATE TO BRACKET
183
SCREW BELL HOUSING TO CYLINDER CRANKCASE M 12X145
183
SCREW , Replaced By: N910105012025
183
SCREW , Replaced By: A0029906804
193
LOCK WASHER FITTING TO BRACKET
999
PROTECTIVE PLATE , Replaced By: A3522510106
999
PROTECTIVE PLATE BELL HOUSING,5 332727 SEAL DURING ASSEMBLY
