Mercedes N912004008102 - Кольцо стопорное

O 301 697.001

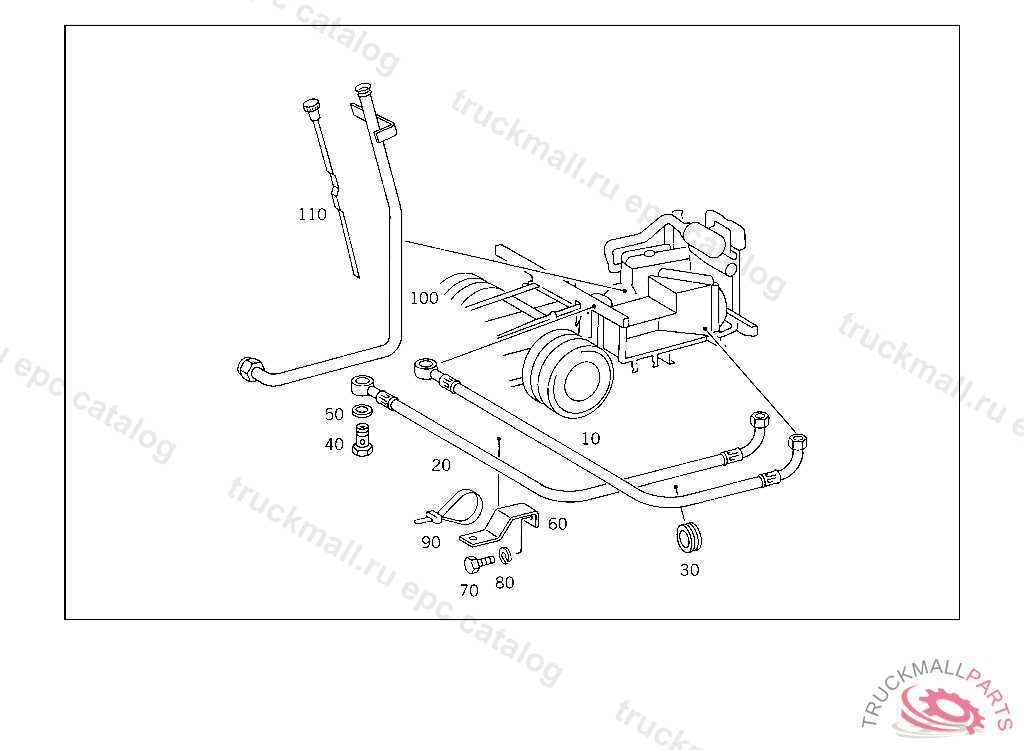

27 AUTOMATIC TRANSMISSION - 001 TRANSMISSION OIL LINES AND OIL DIPSTICK

Поз.
Артикул
Описание
10
A6972700096
LINE (OIL DELIVERY HOSE)
20
A6972700196
LINE (OIL DELIVERY HOSE)
30
A6979970481
GROMMET COMPRESSED AIR LINE TO BRACKET
30
A6979970281
GROMMET , Replaced By: A6979970481
40
N915036012203
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
50
N007603012405
SEAL RING LINE CONNECTION
60
A6970940141
BRACKET
70
N304017008021
SCREW PIPE CLAMP
70
N000933008147
SCREW , Replaced By: N304017008021
80
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
90
A0019978490
LOOM TIE LINE MOUNTING
90
A0019978590
LOOM TIE , Replaced By: A0019978490
100
A6972700084
OIL FILLER PIPE
110
A6972700083
OIL DIPSTICK
