Mercedes N304017008021 - АВТОЗАПЧАСТЬ

O 301 697.001

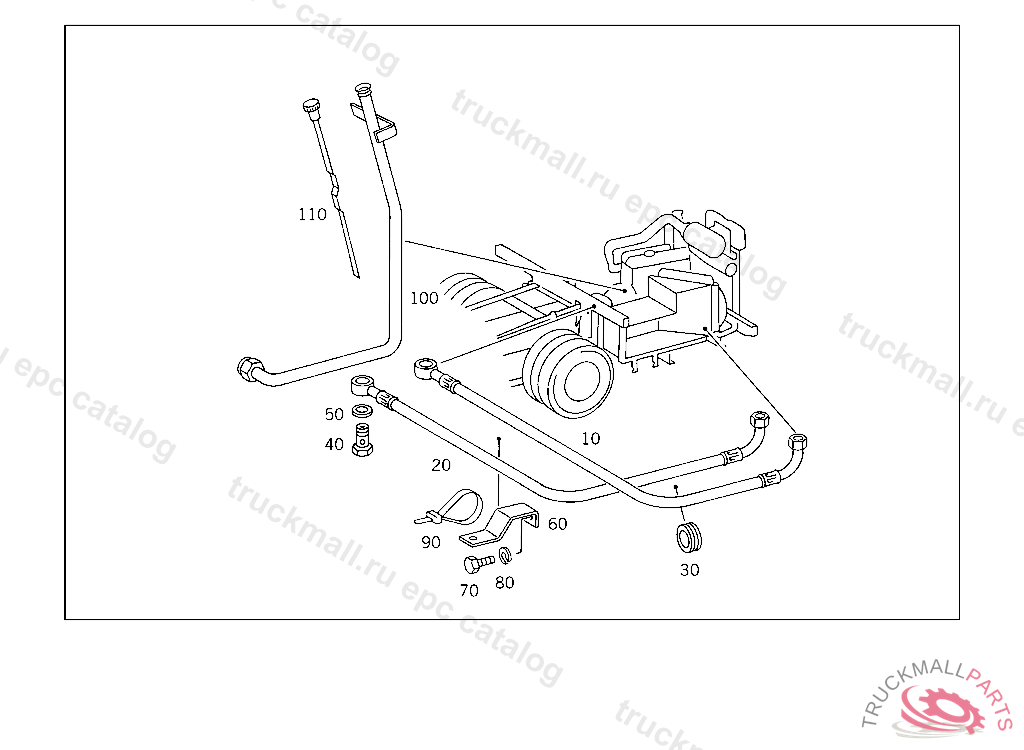

27 AUTOMATIC TRANSMISSION - 001 TRANSMISSION OIL LINES AND OIL DIPSTICK

Поз.
Артикул
Описание
10
A6972700096
LINE (OIL DELIVERY HOSE)
20
A6972700196
LINE (OIL DELIVERY HOSE)
30
A6979970281
GROMMET , Replaced By: A6979970481
30
A6979970481
GROMMET COMPRESSED AIR LINE TO BRACKET
40
N915036012203
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
50
N007603012405
SEAL RING LINE CONNECTION
60
A6970940141
BRACKET
70
N000933008147
SCREW , Replaced By: N304017008021
70
N304017008021
SCREW PIPE CLAMP
80
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
90
A0019978590
LOOM TIE , Replaced By: A0019978490
90
A0019978490
LOOM TIE LINE MOUNTING
100
A6972700084
OIL FILLER PIPE
110
A6972700083
OIL DIPSTICK
