Mercedes A0009905400 - Болт

E 300 212.053

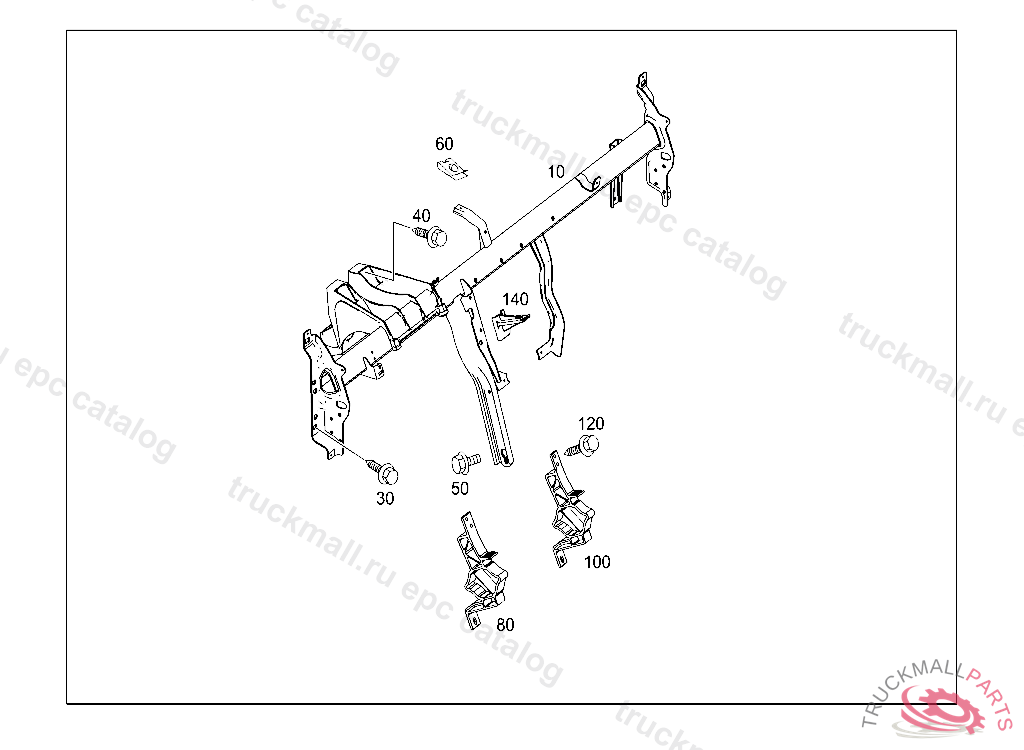

62 FRONT END, FRONT WALL - 120 CROSS MEMBER BELOW INSTRUMENT PANEL

Поз.
Артикул
Описание
10
A2126800455
CROSS MEMBER
10
A2126800355
CROSS MEMBER
10
A2186800155
CROSS MEMBER
10
A2186800055
CROSS MEMBER
30
A0009905400
BOLT ON SIDE MEMBER FRONT BOTTOM M8X22.5
40
N000000001139
HEXALOBULAR BOLT BRACKET TO TRANSMISSION CASE M8X20
50
A0209900001
BOLT W FLANGE CROSS MEMBER TO TUNNEL M10X21
50
A0129907901
BOLT CROSS MEMBER TO TUNNEL M10X16
60
A0009942545
LOCK. CLIP FASTENER HOUSING UPPER PART TO LOWER PART
80
A2076280724
STRUT DRIVER-SIDE, OUTER, A 30499920090616 L 03314520090531 V 00128520090531 F 35983520090601 R 08651820090528
100
A2046280524
STRUT DRIVER-SIDE, INNER
100
A2046280824
STRUT DRIVER-SIDE, INNER
120
A1409900636
SCREW
140
A2126890114
BRACKET AT CROSS MEMBER
