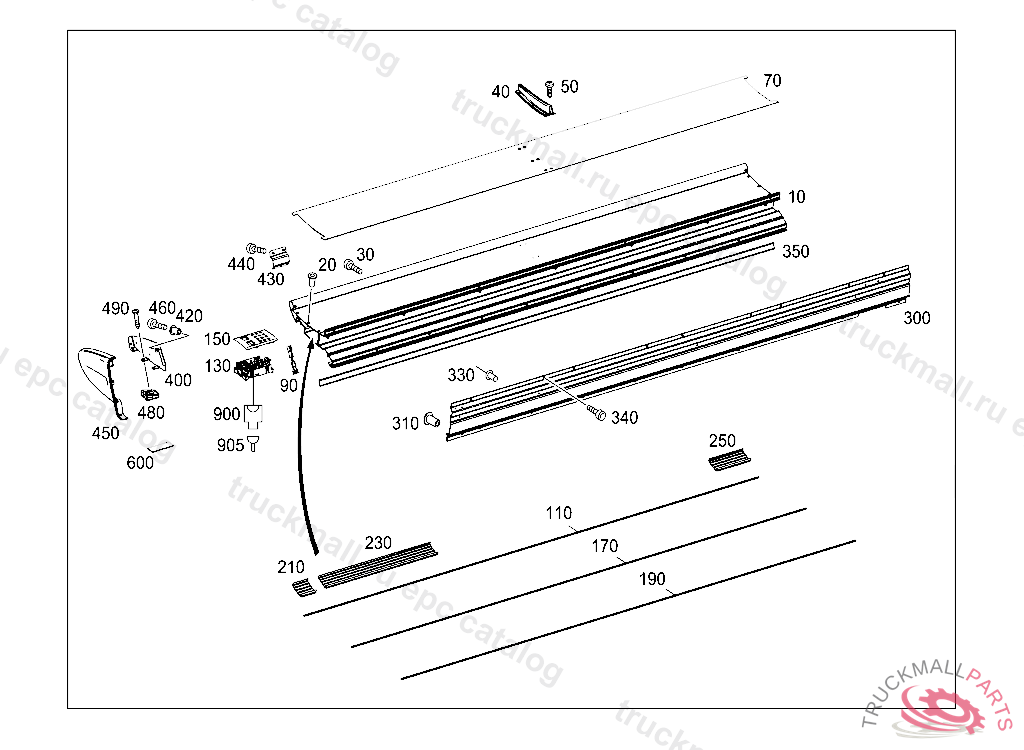

Поз.
Артикул
Описание
10
LUGGAGE RACK LEFT, 7J05QFT906A1800 ALUMINUM ANODIZED
20
RIVET NUT. RIVETED NUT SHIFTING LOCK
30
HEXALOBULAR BOLT LEFT COVER MOUNTING M5X16
30
HEXALOBULAR BOLT FASTENING, STOWAGE BOX/TRAY AT BOTTOM RIGHT M4X16
40
STRUT PARCEL RACK ON THE RIGHT, 9051QFT906A0100 BLACK
50
SHEET METAL SCREW MODULE TO HOUSING
70
ANTI-SKID LINING PARCEL RACK LEFT, 9051QFT906A0100 BLACK
90
MARKER LAMP PARCEL RACK LEFT
110
ELECTRICAL WIRING HARNESS PARCEL RACK LEFT
130
MOLDING FOR SWITCH DUAL, LEFT
130
MOLDING FOR SWITCH SINGLE, RIGHT
150
MOLDING FOR SWITCH DUAL, LEFT
150
MOLDING FOR SWITCH SINGLE, RIGHT
170
ELECTRICAL WIRING HARNESS PARCEL RACK LEFT
190
ELECTRICAL WIRING HARNESS READING LAMP,RIGHT
190
ELECTRICAL WIRING HARNESS READING LAMP,RIGHT
210
LENS SHORT, RIGHT
210
MOLDING SHORT, RIGHT
230
LENS LONG, RIGHT
250
LENS CENTER, RIGHT
300
LUGGAGE RACK LEFT SUPPORT
310
RIVET NUTM4X10
310
RIVET NUT. RIVETED NUT SHIFTING LOCK
330
RIVET REFLECTOR TO BRACKET
340
BOLT. SCREW LEFT AND RIGHT BUMPER FACE BARS TO CENTRAL PART M6X16
350
COVER MOLDING PARCEL RACK LEFT
400
MOUNTING BRACKET REAR LEFT, 7213QFT906A1190 ORION GREY
400
MOUNTING BRACKET FRONT LEFT, 7213QFT906A1190 ORION GREY
430
MOUNTING BRACKET PARCEL RACK LEFT
440
HEXALOBULAR BOLT CABLE HOLDER
450
COVER MOLDING FRONT RIGHT
450
COVER MOLDING FRONT LEFT
460
HEXALOBULAR BOLT LEFT COVER MOUNTING M5X16
480
LOCK NUT BRACKET TO RIGHT FRONT SIDE MEMBER ST 4.8/2.5-5.0 MM
490
TAPPING SCREW4,8X22MM
600
STRIP AT REAR PANEL 4 MM 50X130 MM, NOT USED
900
PIN BUSHING HOUSING INFRARED CONTROL MODULE FOR DRIVE AUTHORIZATION SYSTEM
905
CONTACT BUSHINGR 27, 0.75 MM2
