Mercedes N910105008005 - БОЛТ М8

324, 309CDI, 311CDI, 315CDI, 318CDI 906.733

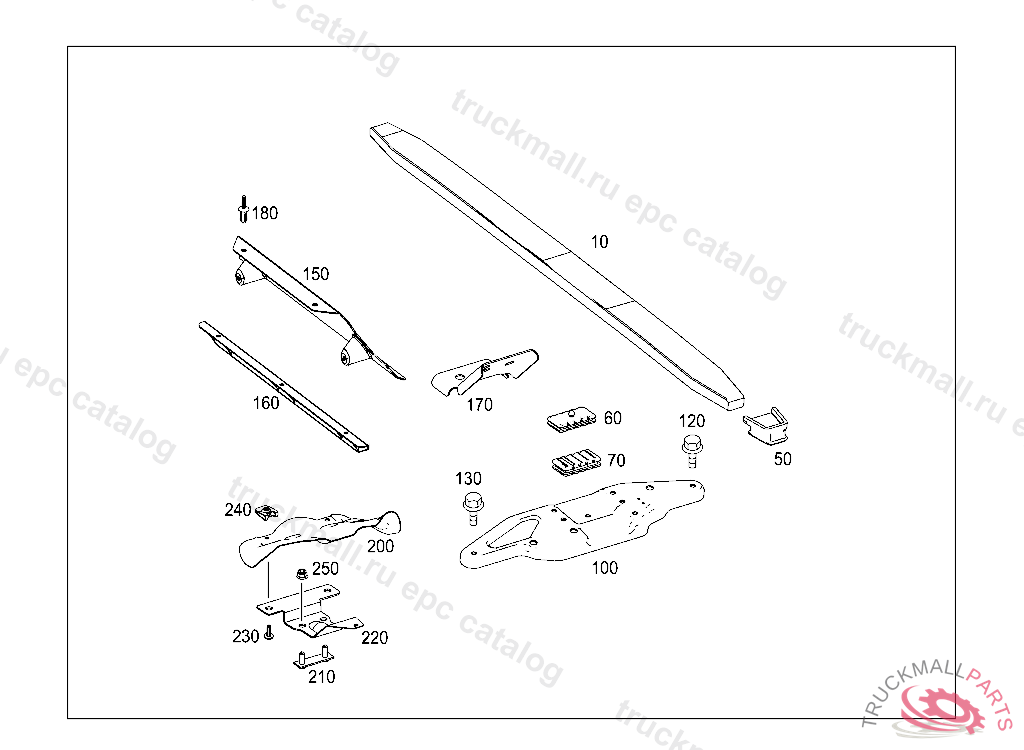

32 SPRINGS AND SUSPENSION - 040 FRONT SPRINGS AND SUSPENSION

Поз.
Артикул
Описание
10
A9063212603
LEAF SPRING
10
A9063211503
LEAF SPRING
10
A9063211403
LEAF SPRING
10
A9063212803
LEAF SPRING
10
A9063210903
LEAF SPRING
10
A9063211103
FRONT SPRING
10
A9063211003
FRONT SPRING
10
A9063211603
LEAF SPRING
10
A9063212703
LEAF SPRING
10
A9063212303
LEAF SPRING
50
A9063220019
SPRING SEAT OUTSIDE
60
A9063221019
SPRING BEARING ONLY IN COMBINATION WITH: A 906 321 16 03, 17 03, 18 03
60
A9063220919
SPRING BEARING ONLY IN COMBINATION WITH: A 906 321 14 03, A 906 321 15 03
60
A9063220319
SPRING SEAT ONLY IN COMBINATION WITH: A 906 321 11 03, 12 03, 13 03
70
A9063220619
SPRING SEAT BOTTOM
100
A9063310726
PLATE RIGHT FRONT SPRING
100
A9063310626
PLATE LEFT FRONT SPRING
120
N910105008005
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
120
N000000000276
SCREW BRACKET TO SIDE MEMBER M8X20
130
N910105012010
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
130
N910105012015
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M12X45
150
A9063210010
SCREENING PLATE TOP
160
A9063210110
SCREENING PLATE BOTTOM
170
A9063210037
INSULATING MAT FRONT SPRING
180
A0009903492
EXPANSION RIVET ORNAMENTAL COVER TO BUMPER
200
A9064630090
PROTECTIVE PLATE
210
A9064630086
MOUNTING PLATE
220
A9064630040
BRACKET
230
N000000001527
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION 4.8X13
240
A0039948545
LOCK NUT CENTER REINFORCEMENT TO HOUSING CENTER CONSOLE 4.8/0.5-2.5 MM
250
N000000003175
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
