Mercedes A0009905304 - Болт М8х75

OM 906 LA 906.981

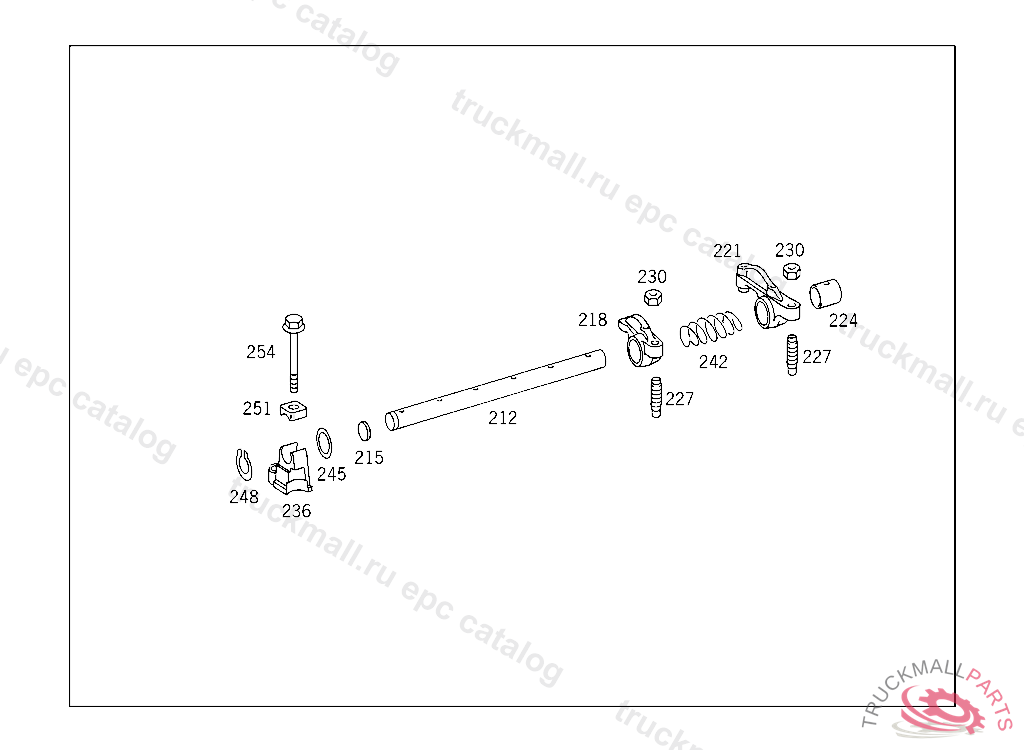

01 ENGINE HOUSING - 075 CYLINDER HEAD,VALVES,GASKET KIT IL. 4

Поз.
Артикул
Описание
212
A9060500731
ROCKER ARM SPINDLE
215
N000470012001
EXPANSION PLUG
218
A9060500833
ROCKER ARM INTAKE
221
A9060500334
ROCKER ARM EXHAUST
224
A9060550150
BUSHING , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 417215, Replaced By: A9060550450
224
A9060550450
BUSHING
227
A9060550420
SET SCREW , Replaced By: A9060550021
227
A9060550021
BALL SCREW PIN
230
A3269900151
NUT
236
A9060550610
ROCKER ARM BRACKET FRONT, Replaced By: A9060551110
236
A9060550710
ROCKER ARM BRACKET REAR, Replaced By: A9060551210
236
A9060550410
ROCKER ARM BRACKET CENTRAL
236
A9060551110
ROCKER SUPPORT FRONT
236
A9060551210
ROCKER SUPPORT REAR
242
A9069930801
SPRING
245
A9069900140
WASHER
248
N000471022000
LOCK RING22X1.2,TO 001 431 71 14
251
A9060550192
CLAMPING PIECE ROCKER SHAFT TO CYLINDER HEAD
254
A0009905304
SCREWTO 001 477 20 01,001 477 21 01
254
N000000002524
HEXAGON HEAD BOLT. SCREW FAN TO WATER PUMP PULLEY M 8X75
