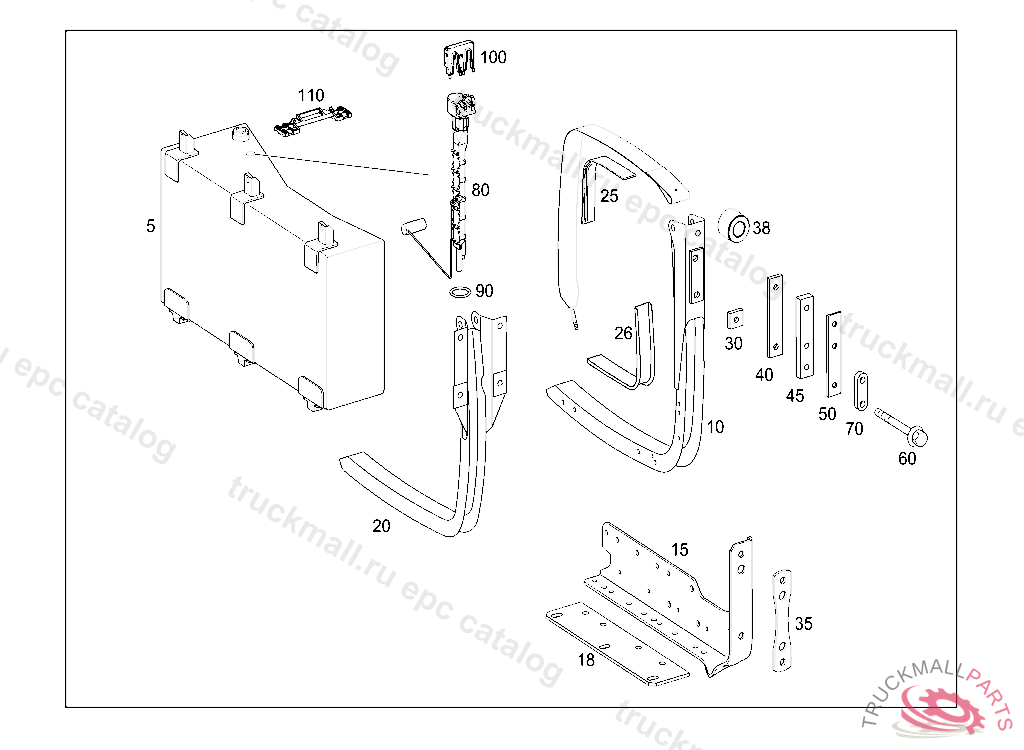

Поз.
Артикул
Описание
5
FUEL TANK RIGHT
10
SUPPORT FRONT RIGHT TANK
10
SUPPORT REAR RIGHT TANK
10
CONSOLE REAR RIGHT TANK
10
SUPPORT FRONT RIGHT TANK
10
SUPPORT REAR RIGHT TANK
10
SUPPORT FRONT RIGHT TANK
10
CONSOLE FUEL TANK TO FRAME, FRONT
15
SUPPORT UNDERRUN PROTECTION,LEFT
18
BRACKET UREA CONTAINER
20
SUPPORT FRONT RIGHT TANK
25
PAD STRAP 61 MM
26
PAD BRAKE ANCHOR 53 MM
30
SHIM MOUNTING PARTS 7MM
30
BASE MOUNTING PARTS 10MM
35
PAD LATERAL UNDERRUN PROTECTION
38
SPACER RING BRACKET AND BEARING BRACKET TO FRAME
38
SPACER TUBE CONTROL ARM TO BEARING BODY,5 0106815 048243
38
SPACER TUBE MOUNTING PARTS, Replaced By: A6173280153
38
BUSHING MOUNTING PARTS, Replaced By: A9703220250
38
BUSHING MOUNTING PARTS, Replaced By: A6624750850
38
BUSHING MOUNTING PARTS, Replaced By: A4182420050
38
BUSHING MOUNTING PARTS, Replaced By: A3142420151
38
BUSHING MOUNTING PARTS, TO BE ADAPTED DURING ASSEMBLY
38
SPACER BUSH MOUNTING PARTS 40X19X60MM
38
BUSHING MOUNTING PARTS, TO BE ADAPTED DURING ASSEMBLY
38
BUSHING RIGHT FRONT 43.3X40X17MM, TO BE ADAPTED DURING ASSEMBLY
38
SPACER TUBE WHEN ORDERING,PLEASE STATE IDENT (CHASSIS) NO. 45X40X22MM
40
SHIM MOUNTING PARTS 20MM
40
SHIM. BASE FUEL TANK TO FRAME 40MM
40
SHIM FUEL TANK TO FRAME 3MM
40
SHIM FUEL TANK TO FRAME 12MM
40
SHIM SUPPORT TO FRAME 6MM
40
SHIM MOUNTING PARTS 30MM
45
SHIM MOUNTING PARTS 25MM
50
SHIM MOUNTING PARTS
60
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 55
60
SCREW SUPPORT TO FRAME M14X1.5X130
70
SHACKLE MOUNTING PARTS
80
SENDER UNIT FUEL GAUGE
90
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
100
LOCK FUEL GAUGE SENDER UNIT CONNECTION
110
BRACKET FUEL LINE
