Mercedes A9413221301 - Кронштейн пер. рессоры

1835 LS - 1843 LS 944.033

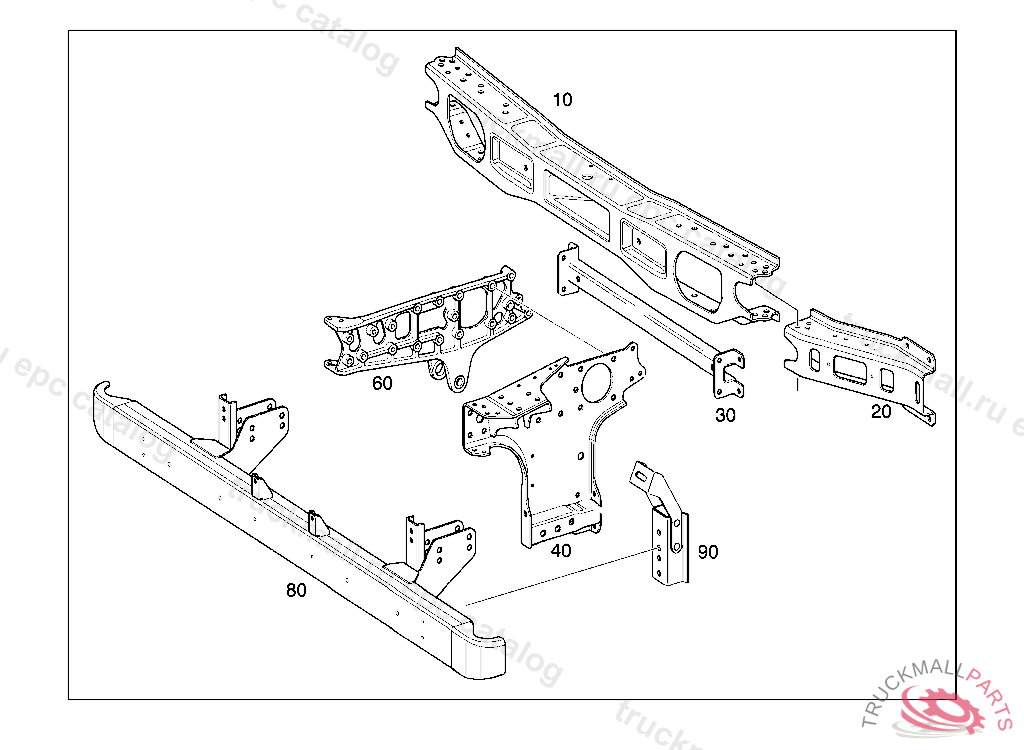

31 FRAME - 001 UNDERRIDE GUARD,FRONT IL.1

Поз.
Артикул
Описание
10
A9443100922
CROSS MEMBER FRONT CENTRAL, TO BE ADAPTED DURING ASSEMBLY
20
A9413121801
CROSS MEMBER OUTSIDE LEFT AND RIGHT NO.1
30
A9413101722
CROSS MEMBER UNDERRUN PROTECTION
30
A9413107322
CROSS MEMBER UNDERRUN PROTECTION, Replaced By: A9413101722
40
A9413104590
STIFFENING RIGHT
40
A9413104490
STIFFENING LEFT
60
A9413221301
FRONT SPRING BRACKET LEFT, TO BE ADAPTED DURING ASSEMBLY NO.7390I I I I II I
60
A9413221401
FRONT SPRING BRACKET RIGHT, TO BE ADAPTED DURING ASSEMBLY NO.7390I I I I II I
80
A9413106322
CROSS MEMBER UNDERRUN PROTECTION
80
A9443101522
CROSS MEMBER UNDERRUN PROTECTION
90
A9443100363
CONSOLE CROSS MEMBER TO FRAME
