Mercedes N007603014405 - КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

1831 L - 1840 L 950.031

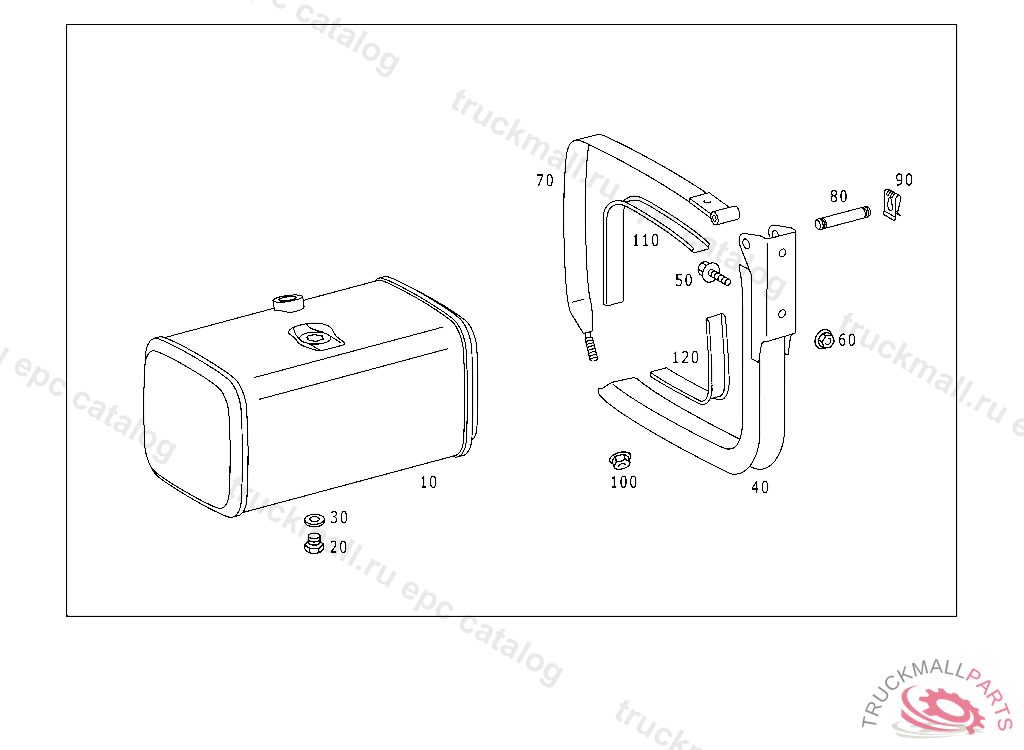

47 FUEL SYSTEM - 001 345-LITER ADDITIONAL FUEL TANK, STEEL

Поз.
Артикул
Описание
10
A9414700301
FUEL TANK TO BE MOUNTED ON THE RIGHT 345 L
20
N007604014110
SCREW PLUG FUEL TANK
30
N007603014405
SEAL RING FUEL LINE TO FEED PUMP
40
A9414702242
SUPPORT FUEL TANK TO FRAME
40
A9414701742
SUPPORT FUEL TANK TO FRAME
50
N910105014005
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
50
N910105014013
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
60
N913023014003
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
70
A9414700140
STRAP FUEL TANK TO CONSOLE
80
A9414750074
PIN , Replaced By: A9444750074
80
A9444750074
PIN STRAP TO SUPPORT
90
N912007016001
CLIP RESERVOIR TO CAB FRONT PANEL
100
N000000000189
NUT STRAP TO SUPPORT M12X1.5
110
A9414751620
PAD STRAP 61 MM
120
A9414751720
PAD BRAKE ANCHOR 53 MM
