Поз.
Артикул
Описание

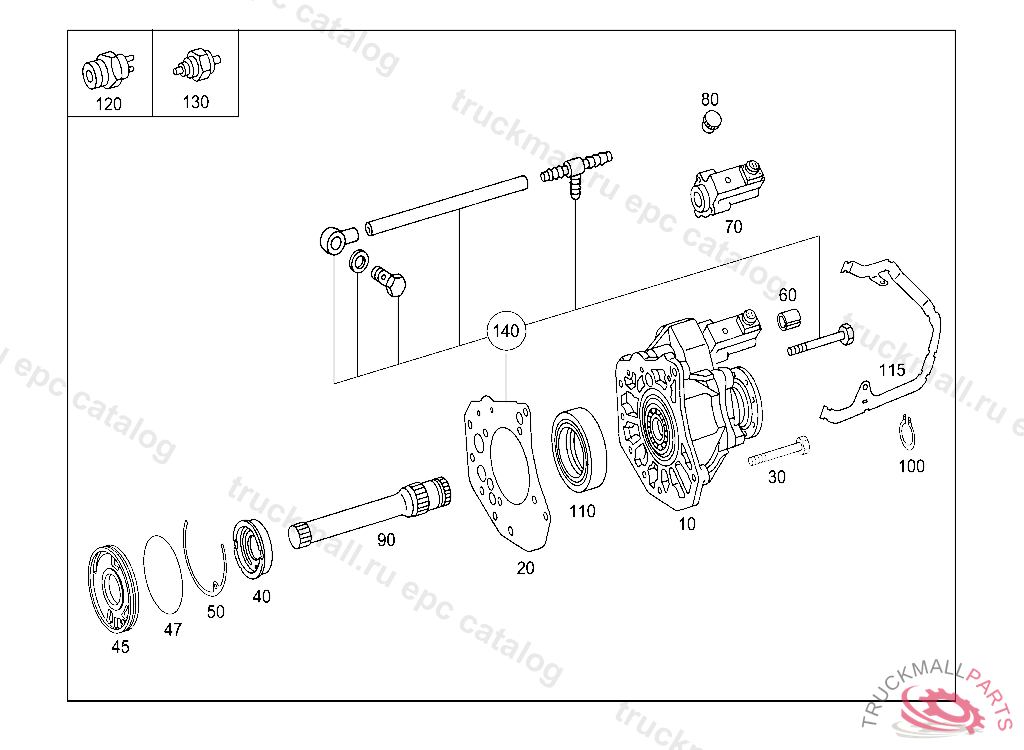

10
POWER TAKE-OFF FOR BREAK-DOWN,SEE UNIT STANDARD VERSIONMODEL: 715. / KAT 01F, 11W
10
POWER TAKE-OFF FOR BREAK-DOWN,SEE UNIT STANDARD VERSIONMODEL: 715. / KAT 01D
20
GASKET P.T.O. TO TRANSMISSION
20
GASKET P.T.O. TO TRANSMISSION
30
SCREW P.T.O. TO TRANSMISSION M10 X 90
30
SCREW P.T.O. TO TRANSMISSION M10 X 150
40
HOUSING OIL PUMP
45
HOUSING OIL PUMP
47
SEAL RING OIL PUMP HOUSING
50
SPACER WASHER OIL PUMP, AS REQUIRED 1.25MM
50
SPACER WASHER OIL PUMP, AS REQUIRED 0.95MM
50
SPACER WASHER OIL PUMP, AS REQUIRED 1.20MM
50
SPACER WASHER OIL PUMP, AS REQUIRED 1.00MM
50
SPACER WASHER OIL PUMP, AS REQUIRED 0.80MM
50
SPACER WASHER OIL PUMP, AS REQUIRED 1.05MM
50
SPACER WASHER OIL PUMP, AS REQUIRED 1.30MM
50
SPACER WASHER OIL PUMP, AS REQUIRED 0.15 MM
50
SPACER WASHER OIL PUMP, AS REQUIRED 0.85MM
50
SPACER WASHER OIL PUMP, AS REQUIRED 1.10MM
50
SPACER WASHER OIL PUMP, AS REQUIRED 0.10 MM
50
SPACER WASHER OIL PUMP, AS REQUIRED 0.90MM
60
BUSHING P.T.O. HOUSING
70
CYLINDER (SHIFTING CYLINDER)
80
PLUG TO PLUG HYDRAULIC LINE
90
INTERMEDIATE SHAFTND0/1/2/3/7/8/9
90
INTERMEDIATE SHAFT , Replaced By: A9452641405, +001N912009045100
90
INTERMEDIATE SHAFT WITH RETARDER
100
SNAP RING INTERMEDIATE SHAFT
110
RING INTERMEDIATE SHAFT
115
BRACKET ELECTRIC CABLE, Replaced By: A9605462582
115
MOUNTING PLATE ELECTRIC CABLE
120
SWITCH BACK-UP LIGHT
130
SWITCH
130
SWITCH , Replaced By: A0015455709
140
P.T.O. (INSTALLATION KIT),CHASSIS PARTS FOR SUBSEQUENT INSTALLATION
