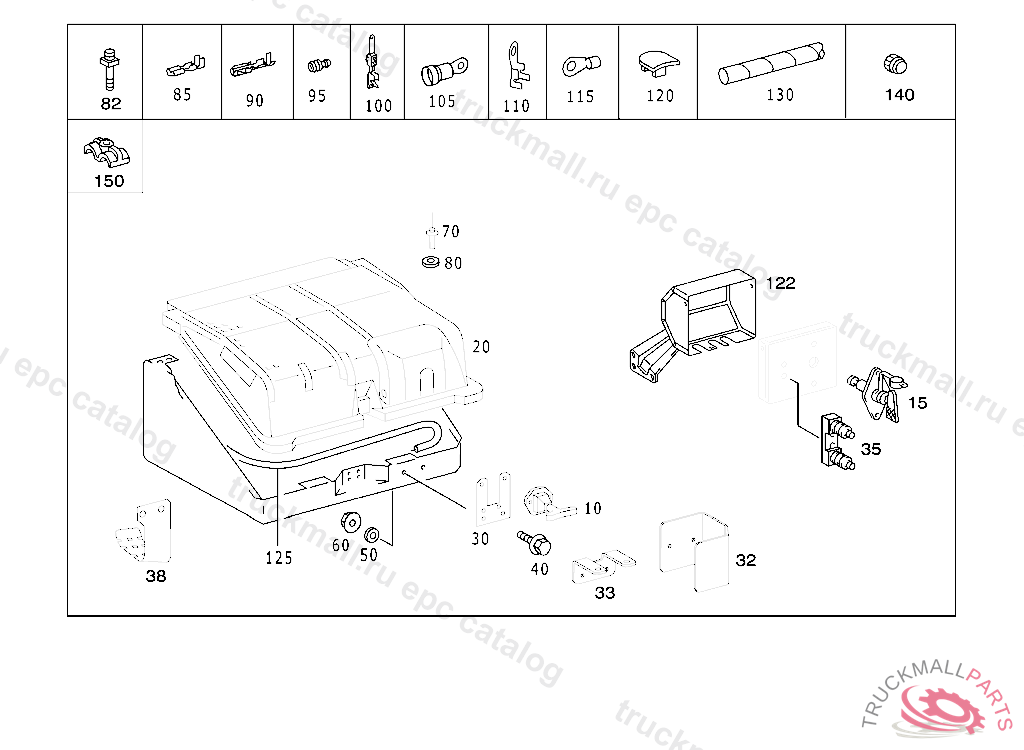

Поз.
Артикул
Описание
10
SWITCH (BATTERY MASTER SWITCH)
15
SWITCH (BATTERY MASTER SWITCH)
20
COVER BATTERY COVERING
30
BRACKET BATTERY MASTER SWITCH
32
BRACKET BATTERY MASTER SWITCH
33
BRACKET BATTERY MASTER SWITCH
35
BRACKET FUSE
38
BRACKET AT SIDE MEMBER
40
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
40
SCREW STOP TO BATTERY CASE
40
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
50
WASHER BRACKET TO LEFT SIDE MEMBER
60
NUT ENGINE MOUNTING M8
70
RIVET MOUNTING PARTS 4 X 15 MM
80
WASHER BRACKET TO SUPPORT
82
SCREW POS. POLE
85
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
90
FEMALE CONTACT LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2, PIN 57 - 62
95
WIRE SEAL
100
FLAT PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
105
CABLE SHOE5 MM
110
CABLE SHOEA 6-2,5
115
CABLE SHOE WITH BORE 10.5 MM X 70 MM2
120
BOOT POS. POLE
122
PROTECTIVE CAP. BOOT CUT-OFF RELAY
125
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 70 MM2, ORDER BY THE METER
125
ELECTRIC CABLE BATTERY, ORDER BY THE METER
130
INSULATING HOSE RIGID, FOR CABLE HARNESS DIA.: 23 MM, ORDER BY THE METER
130
INSULATING HOSE4 X 0.5 MM, ORDER BY THE METER
130
INSULATING HOSE BLACK 12 X 0,8 MM
130
INSULATING HOSE BLACK 10 MM, ORDER BY THE METER
130
INSULATING HOSE6 X 0.6 MM, ORDER BY THE METER
130
INSULATING HOSE5 X 0.6 MM, ORDER BY THE METER
130
PROTECTIVE HOSE , Replaced By: A0005461930
140
EXPANSION PLUG TO LOCK TRAILER-PLUG-SOCKET OUTLET
150
CLAMP BATTERY CABLE
999
CONVERSION KIT
