Поз.
Артикул
Описание

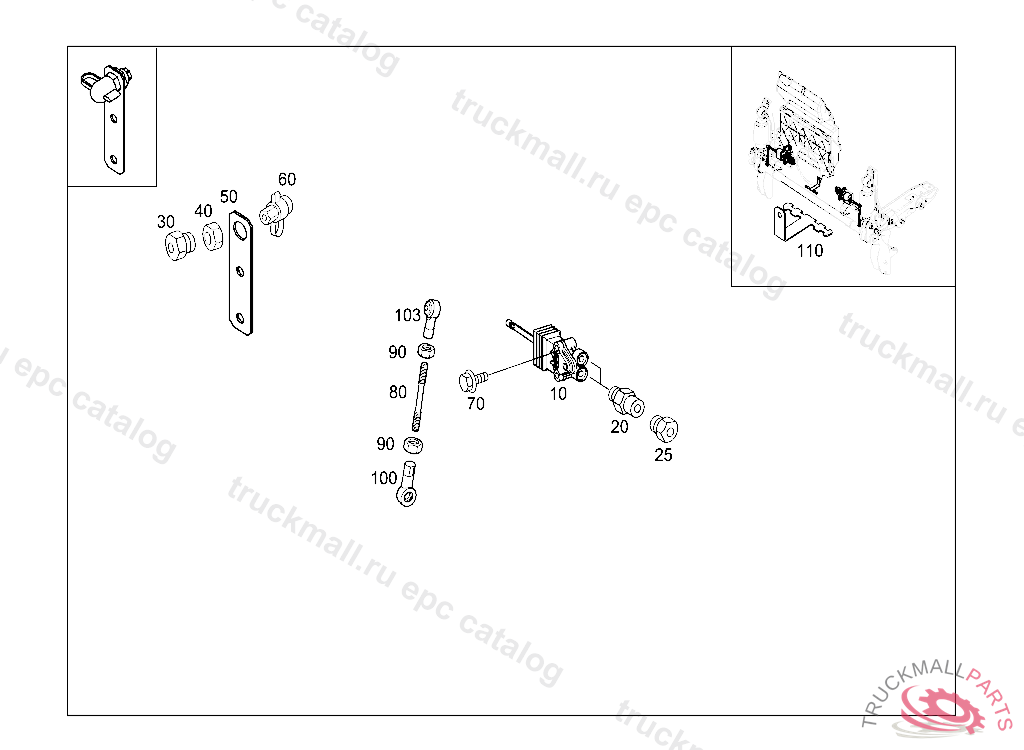

10
VALVE AIR SUSPENSION,CAB SUSPENSION,FRONT
20
FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION M 10X1/ M 10X1
25
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 10, VOSS 232, Replaced By: A0009975034
30
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 10, VOSS 232, Replaced By: A0009975034
40
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
50
60
TEST CONNECTION WITH INTERNAL THREAD M10X1
70
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
80
PULL ROD FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER 400 MM, TO BE ADAPTED DURING ASSEMBLY
90
NUT SPRING-LOADED PUSH ROD
90
NUT L.H. THREAD
100
JOINT R.H. THREAD
103
JOINT L.H. THREAD
110
999
