Поз.
Артикул
Описание

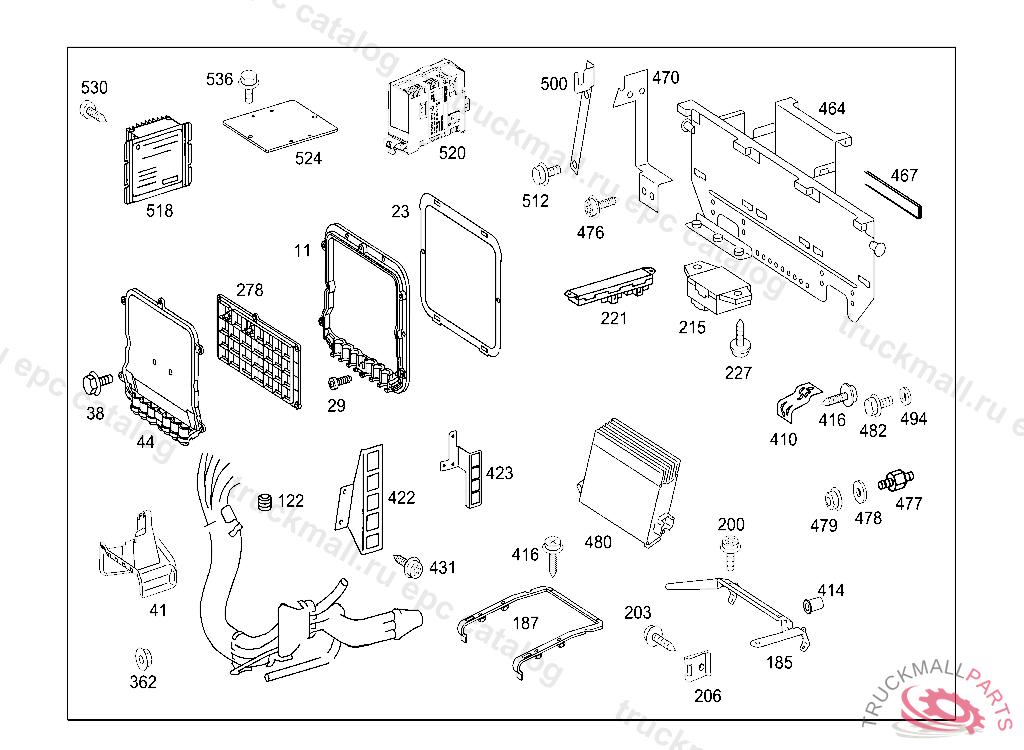

11
MOUNTING FRAME CHASSIS/CAB PLUG CONNECTION
23
GASKET MOUNTING FRAME
29
SCREW MOUNTING FRAME TO SUPPORT
38
SCREW SUPPORT TO SUPPORT M 5X16
44
COVER CHASSIS/CAB PLUG CONNECTION
122
BOOT TO LOCK ELECTRIC LEAD-IN
185
BRACKET CONSOLE MOUNTING
187
203
TAPPING SCREW INSTRUMENT PANEL ON WAIST RAIL 4.2X19
215
CLUTCH STAR POINT (ELECTROMAGNETIC FILTER) "6", 18PIN
215
PLUG STAR POINT (ELECTROMAGNETIC FILTER) "6", 18PIN, Replaced By: A0275451226
221
PLUG SOCKET. CLUTCH STAR POINT (ELECTROMAGNETIC FILTER) "12", 2X18PIN
221
PLUG STAR POINT (ELECTROMAGNETIC FILTER) "12", 2X18PIN, Replaced By: A0275451326
227
SCREW BRACKET TO COVERING
278
CONNECTING PLAQUE
414
RIVETED NUTM 6X1.0
416
SCREW. HEXALOBULAR BOLT COVER TO MOUNTING FRAME M5X12
423
BRACKET CONNECTOR,DOOR AND ROOF
423
BRACKET CONNECTOR,DOOR AND ROOF LCM2
431
SHEET METAL SCREW BRACKET TO SUPPORT
464
BRACKET CONTROL UNIT TO CAB REAR PANEL LCM2
464
BRACKET CONTROL UNIT TO CAB REAR PANEL LCM2
467
SEAL APPARATUS PLATE TO REAR PANEL, ORDER BY THE METER, Replaced By: A0039898185
467
ADHESIVE TAPE APPARATUS PLATE TO REAR PANEL, LENGTH AVAILABLE: 20000 MM
470
BRACKET BRACKET TO CAB REAR PANEL
476
TAPPING SCREW BRACKET TO CAB REAR PANEL 6.3X16
477
STUD BRACKET TO CAB REAR PANEL M8X46
478
WASHER BRACKET TO CAB REAR PANEL
478
WASHER BRACKET TO LEFT SIDE MEMBER
479
NUT HORN TO BRACKET M8
480
POTENTIOMETER VOLTAGE TRANSFORMER 24V->12V, 18A
480
POTENTIOMETER VOLTAGE TRANSFORMER 24V->12V, 10A
482
SCREW. HEXAGON HEAD BOLT RELAY TO BRACKET M5X16
482
SCREW , Replaced By: N914146006102
500
BRACKET BRACKET TO CAB REAR PANEL
512
SCREW BRACKET TO SIDE MEMBER M8X20
512
SCREW BRACKET TO CAB REAR PANEL M 8X20
518
VOLTAGE TRANSFORMER
520
524
BRACKET VOLTAGE TRANSFORMER
524
530
SCREW STEERING COLUMN MOUNTED SWITCH
530
SHEET METAL SCREW BRACKET TO FLOOR PLATE
536
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
536
SCREW , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0009849729
536
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
