Mercedes A0001540460 - КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

CL 600 215.378

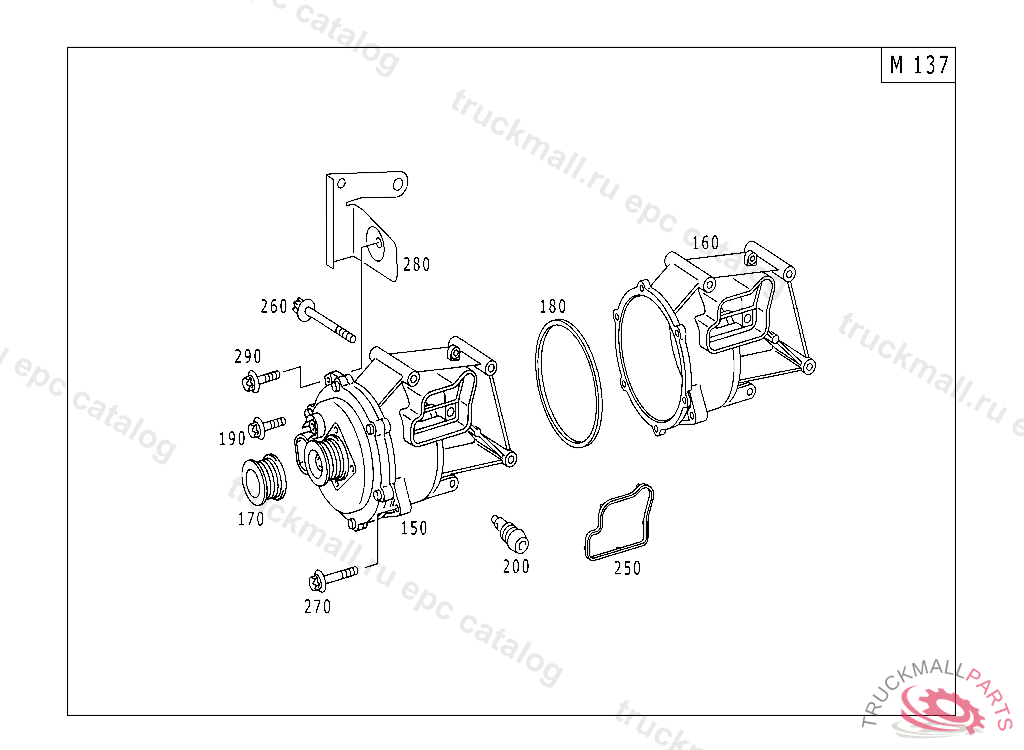

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 026 ALTERNATOR IL. 2

Поз.
Артикул
Описание
150
A1371500950
ALTERNATOR
160
A1371540403
HOUSING
170
A1371550415
PULLEY
180
A0001540460
SEAL RING , FROM MODEL YEAR 2000CODE 800 UP TO THE END OF MODEL YEAR 2000CODE 800
190
N910143006005
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 6X35
200
A1129900901
BOLT TO PLUG COOLING-WATER BORE
250
A1371540180
GASKET
260
N000000001685
HEXALOBULAR BOLT SOLENOID VALVE TO BRACKET M8X100,V 218473V 223460
270
A0019905722
BOLT ALTERNATOR AT HOUSING M7X40
280
A2202710540
BRACKET OIL PIPE TO ALTERNATOR
290
N000000001114
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
