Поз.
Артикул
Описание

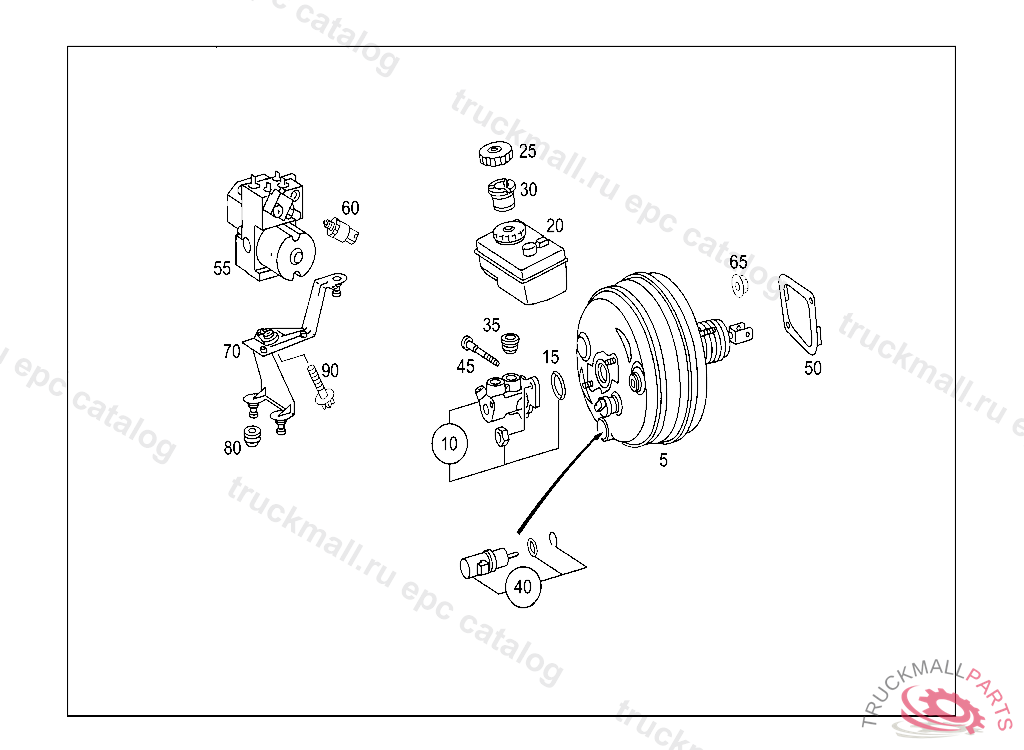

5
BRAKE BOOSTER ASSEMBLY
10
BRAKE MASTER CYLINDER
15
SEAL RING
20
DASHPOT
25
COVER
30
STRAINER
35
BUSHING
40
SENDER UNIT DIAPHRAGM POSITION SENSOR,BAS
45
TRUNNION SCREW. SCREW TWO-WAY VALVE,CONNECTION "1.1",4 428564
50
GASKET BRAKE BOOSTER ASSEMBLY TO FIRE WALL TO 004 430 00 30/08 30
55
HYDRAULIC UNITESP, A 00515420000630800
55
HYDRAULIC UNITESP, A 00515420000630800, Replaced By: A0044314712
65
NUT HORN TO BRACKET M8
70
BRACKET HYDRAULIC UNIT
80
ELASTOMER BEARING. RUBBER BUFFER HYDRAULIC UNIT TO BRACKET, A 519674 F 619721 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO A 519673, F 619720 WITH CODE 808
90
HEXAGON HEAD BOLT. SCREW BRACKET TO FRAME M 10X30
