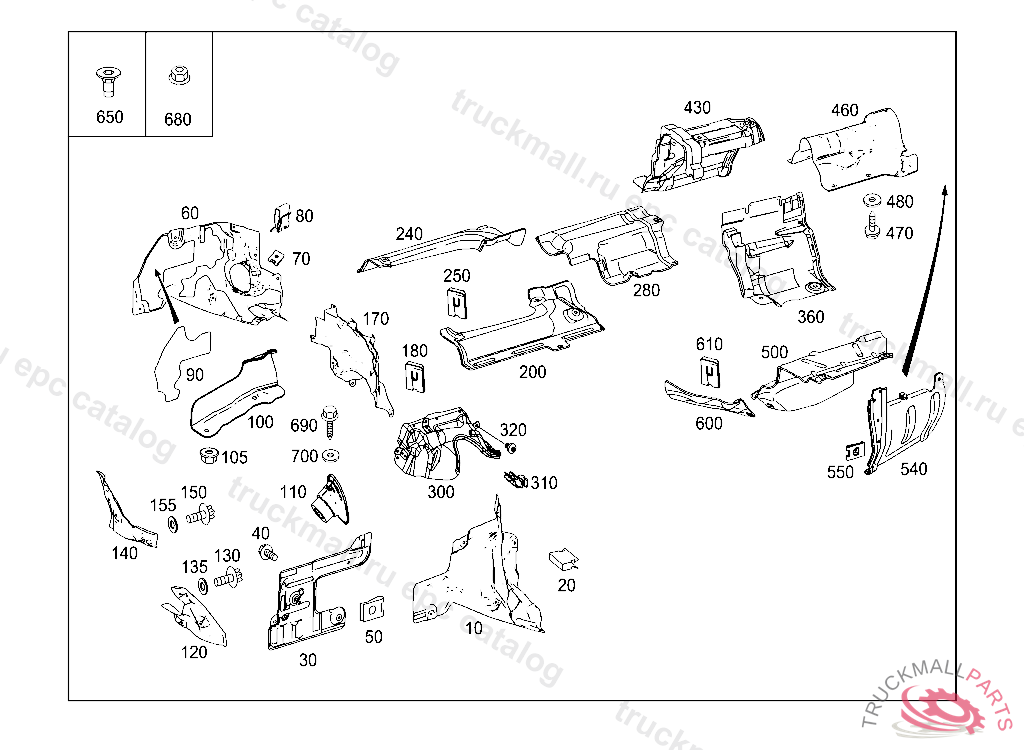

Поз.
Артикул
Описание
20
CLIP , 023 045544 033 023449 123 031503 130 041295
60
SCREENING TO FIRE WALL,RECHTS
60
SCREENING TO FIRE WALL,RECHTS
90
SHIELDING TO GUARD
100
SHIELDING TO TRANSMISSION CARRIER
100
SHIELDING TO TRANSMISSION CARRIER
105
NUT , Replaced By: N913023006001
110
SCREENING STEERING JOINT BOOT, A 03982220111219
200
SHIELDING TO MAIN FLOOR LEFT
200
SCREENING PLATE TO MAIN FLOOR LEFT, Replaced By: A2126828571
240
SHIELDING FLOOR,RIGHT, A 07073320120911
240
SCREENING PLATE FLOOR,RIGHT, A 07073220120911
250
CLIP
280
SHIELDING OVER CATALYST, A 05893720120601 A 07158320120918
280
SCREENING PLATE OVER CATALYST, A 05893620120601
280
SHIELDING OVER CATALYST, A 07158420120918
360
SCREENING PLATE OVER LEFT CENTER MUFFLER
430
SCREENING PLATE OVER RIGHT CENTER MUFFLER
460
SCREENING PLATE BELOW FUEL TANK
460
SCREENING PLATE BELOW FUEL TANK
470
HEXALOBULAR BOLT. SCREW BRACKET TO SUPPORT M5 X 12
480
WASHER AIR VENT FASTENING
500
SHIELDING REAR MUFFLER RIGHT, INSIDE, A 20130930
500
SHIELDING REAR MUFFLER, LEFT, INSIDE
540
SCREENING PLATE REAR MUFFLER, RIGHT, OUTER
540
SCREENING PLATE REAR MUFFLER, LEFT, OUTER
550
LOCK RIGHT PANELLING TO SIDE MEMBER
600
SCREENING PLATE LEFT FRONT SPARE TIRE WELL
600
SHIELDING RIGHT FRONT SPARE TIRE WELL, A 20130930
610
CLIP
650
HEXAGON NUT W COLLAR BRACKET MOUNTING
680
NUT , Replaced By: N913023006001
690
TAPPING SCREW PROTECTIVE GRILLE 4.8X16 MM
700
WASHER
