Поз.
Артикул
Описание

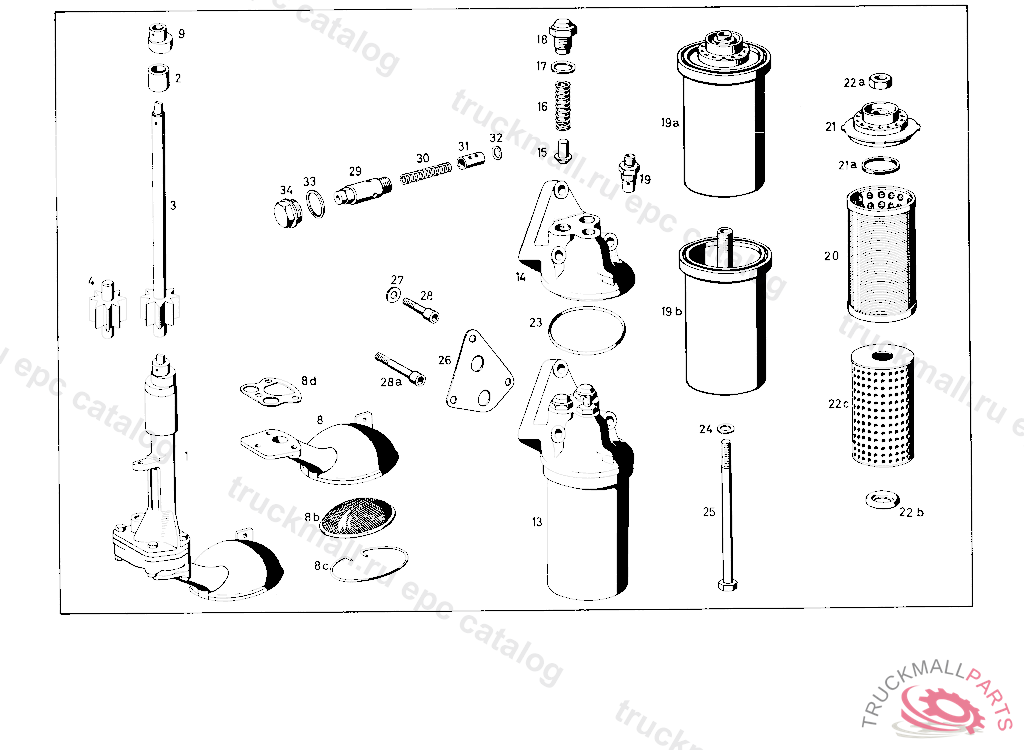

1
OIL PUMP
2
BEARING BUSHING, TOP. BUSHING
3
DRIVE SHAFT WITH GEAR
4
OIL PUMP SHAFT WITH GEAR. OLPUMPENACHSE MIT ZAHNRAD
8
STRAINER FROM ENGINE 9500501
9
CAM ON OIL PUMP DRIVE SHAFT FOR FUEL FEED PUMP
13
REPLACED BY 000 184 77 01 UP TO ENGINE 8510158 SUCTION BASKET 121 180 14 52 IS TO BE DELIVERED
14
OIL FILTER. OIL, FILTER HOUSING, UPPER PART UP TO ENGINE 9500202
15
VALVE CONE. VALVE SEAT
16
SPRING
18
SCREW PLUG FOR OIL RELIEF VALVE
19
THREADED NIPPLE, TOP. SCREWED NIPPLE, TOP
20
COIL
21
DISCHARGE CAP. RING WITH SEAL
23
SEALING RING. SEAL RING PLUG HOUSING TO FIRE WALL
26
GASKET , Replaced By: A1211840180
29
OIL PRESSURE RELIEF VALVE FROM ENGINE 8500121
30
SPRING FOR 6 KG/CM2
31
PISTON
34
LOCKING SCREW. SCREW PLUG , Replaced By: A1301800056
999
SEALING RING
999
HOUSING
999
GASKET
999
FILTER ELEMENT ,D 441028D 523393
999
SEALING RING , Replaced By: A0001840680
999
HOUSING WITHOUT MICRONIC ELEMENT
999
PLATE-TYPE. HOUSING WITHOUT MICRONIC ELEMENT, Replaced By: A0001843001
999
OIL FILTER WITH FILTER ELEMENT UP TO ENGINE 8500120
999
REPLACED BY 000 184 77 01 OR 000 184 78 01, RESPECTIVELY UP TO ENGINE 8508592 SUCTION BASKET 121 180 14 52 HAS TO BE DELIVERED IN AD
999
HEX. NUT M 14X1,5
999
SNAP RING
999
STRAINER. SUCTION BASKET
999
GASKET , UP TO ENGINE 923 10/50,20/60 166002 923 12/52,22/62 031860 926 10/50,20/60 010645 926 12/52,22/62 000458 920,924 UNTIL PRODUCTION STOP
999
OIL PUMP , Replaced By: A1801800801
999
INTAKE PIPE WITH STRAINER UP TO ENGINE 9500500
999
SCREWED NIPPLE, TOP , Replaced By: A1811840117
999
GASKET FOR OIL FILTER HOUSING AT CYLINDER CRANKCASE UP TO ENGINE 8500359
999
OIL FILTER HOUSING, UPPER PART UP TO ENGINE 8500359
999
OIL PRESSURE RELIEF VALVE
999
TUBE CLAMP FOR INTAKE PIPE, OIL PUMP UP TO ENGINE 9500500
