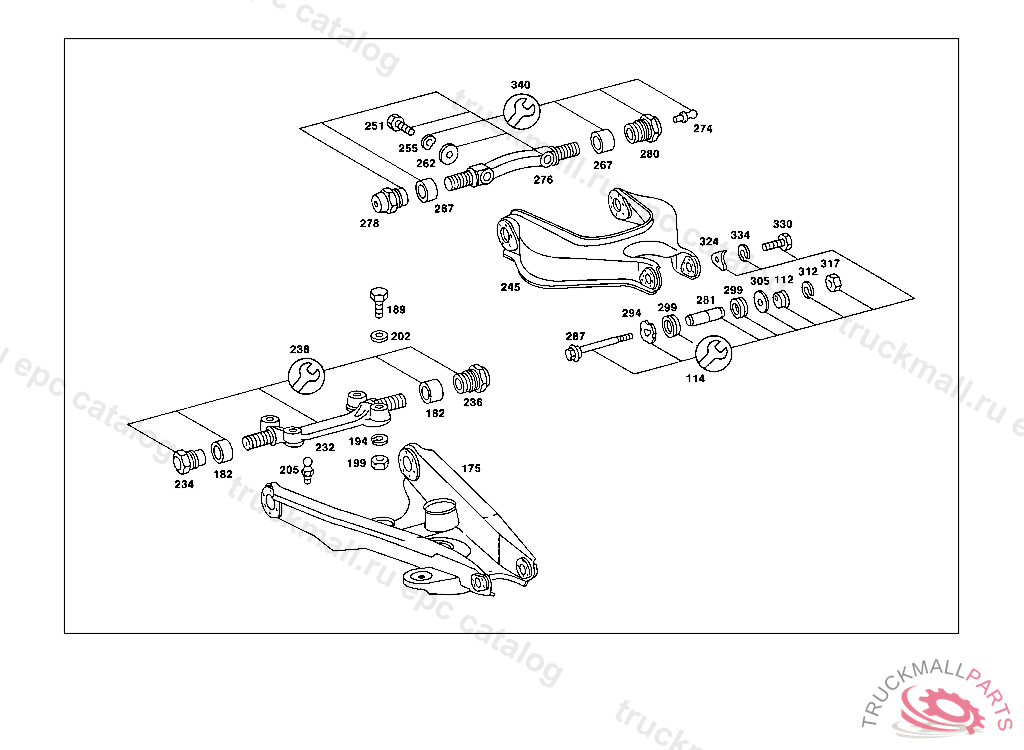

Поз.
Артикул
Описание
114
REPAIR KIT UPPER TRANSVERSE CONTROL ARM
175
TRANSVERSE CONTROL ARM BOTTOM LEFT
175
TRANSVERSE CONTROL ARM BOTTOM RIGHT
182
SEAL RING
189
SCREW
194
LOCK WASHER FITTING TO BRACKET
199
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
199
NUT , Replaced By: N308673012002
202
WASHER
205
GREASE NIPPLE
205
GREASE NIPPLE , Replaced By: N071412008102
238
REPAIR KIT LOWER CONTROL ARM PIVOT PIN
245
TRANSVERSE CONTROL ARM TOP
251
SCREW
255
LOCK
262
WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER
262
WASHER , Replaced By: N000433013010
267
SEAL RING
274
GREASE NIPPLE FOR SPRING
276
PIN
278
SCREW COLLAR THREAD O. D. 29.9 MM
280
SCREW COLLAR THREAD O. D. 30.9 MM
281
SCREW COLLAR
287
PIN
294
WASHER
299
SEAL RING
305
WASHER
312
LOCK WASHER COMPRESSED AIR LINE TO BRACKET
317
NUT BRACKET TO SUPPORT AND TO END PIECE
324
LOCK
330
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
334
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
340
REPAIR KIT UPPER CONTROL ARM PIVOT PIN
999
COTTER PINTO 345 431 70 16, USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185
999
TIE ROD , Replaced By: A1073300103, +002N913002010002
999
TIE ROD , NO LONGER AVAILABLE
999
HALF FRONT AXLE , 016 UP TO CHASSIS 088514, 018 UP TO CHASSIS 094050, 067,068 UP TO CHASSIS 009896 016 FROM CHASSIS 075176,018,019 FROM CHASSIS 081819, Replaced By: A1083301298, +001A0005867242
999
HALF FRONT AXLE , NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS
999
HALF FRONT AXLE LEFT, MIND RANGE OF DELIVERY NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS
999
BALL JOINT , Replaced By: A0003385210, +001N913002010002
999
BOOT , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
CLAMPING RING TOP, NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
CLAMPING RING BOTTOM, NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
