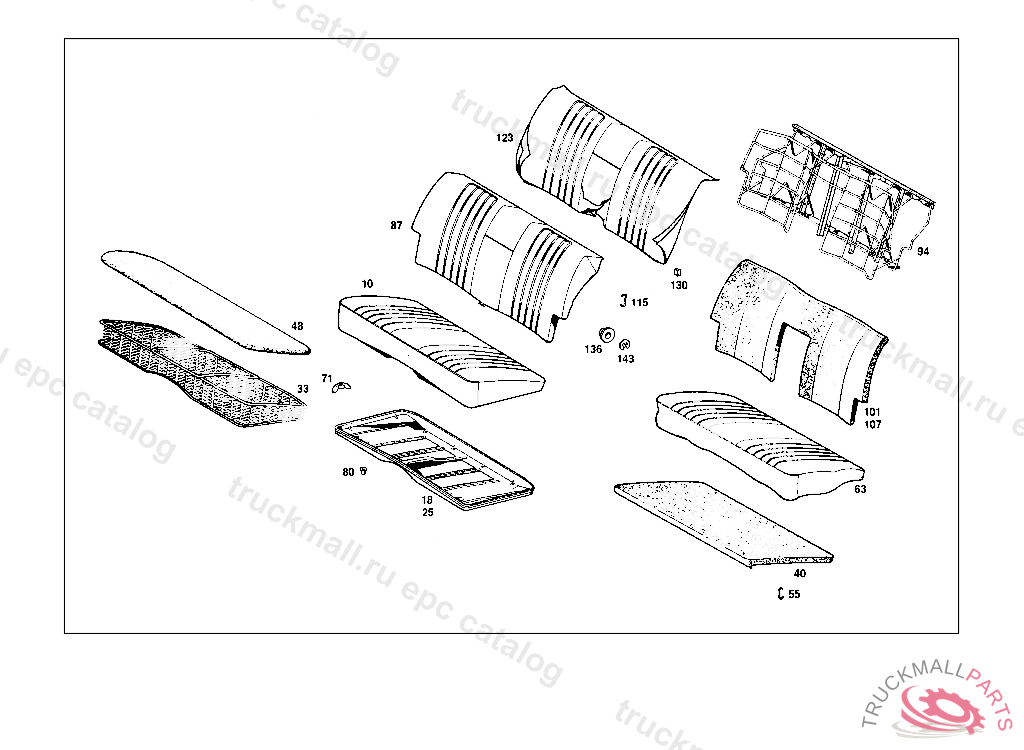

Поз.
Артикул
Описание
10
REAR SEAT CUSHION , WHEN ORDERING STATE COLOR NUMBER
25
CUSHION FRAME
33
SPRING CORE
48
PAD
55
CLIP COVER TO PAD
63
COVER , STATE COLOR NUMBER WHEN ORDERING 087142
87
BACKREST WITH CENTRAL FOLDING ARMREST, WHEN ORDERING STATE COLOR NUMBER
94
BACKREST FRAME , MIND RANG OF DELIVERY
107
PAD
115
CLIP COVER TO PAD
130
CLIP
136
SUPPORT
143
LOCK PLATE
999
CLIP BLOWER COVERING
999
CLIP COVER TO REAR SEAT BENCH BACKREST FRAME, 010 UP TO CHASSIS 068345, 110 UP TO CHASSIS 105977
999
WASHER
999
BACKREST LESS COVER WITH CENTRAL FOLDING ARMREST
999
SEAT CUSHION LESS COVER
999
COVER , WHEN ORDERING STATE COLOR NUMBER 000022
999
REAR SEAT CUSHION , WHEN ORDERING STATE COLOR NUMBER 000022
999
COVER LEATHER, WHEN ORDERING STATE COLOR NUMBER
999
COVER LEATHER, WHEN ORDERING STATE COLOR NUMBER 004030
999
BACKREST WITH CENTRAL FOLDING ARMREST, WHEN ORDERING STATE COLOR NUMBER 000022
999
PAD , Replaced By: A1159240114
999
NUT BALL PIVOT TO LEVER
