Поз.
Артикул
Описание

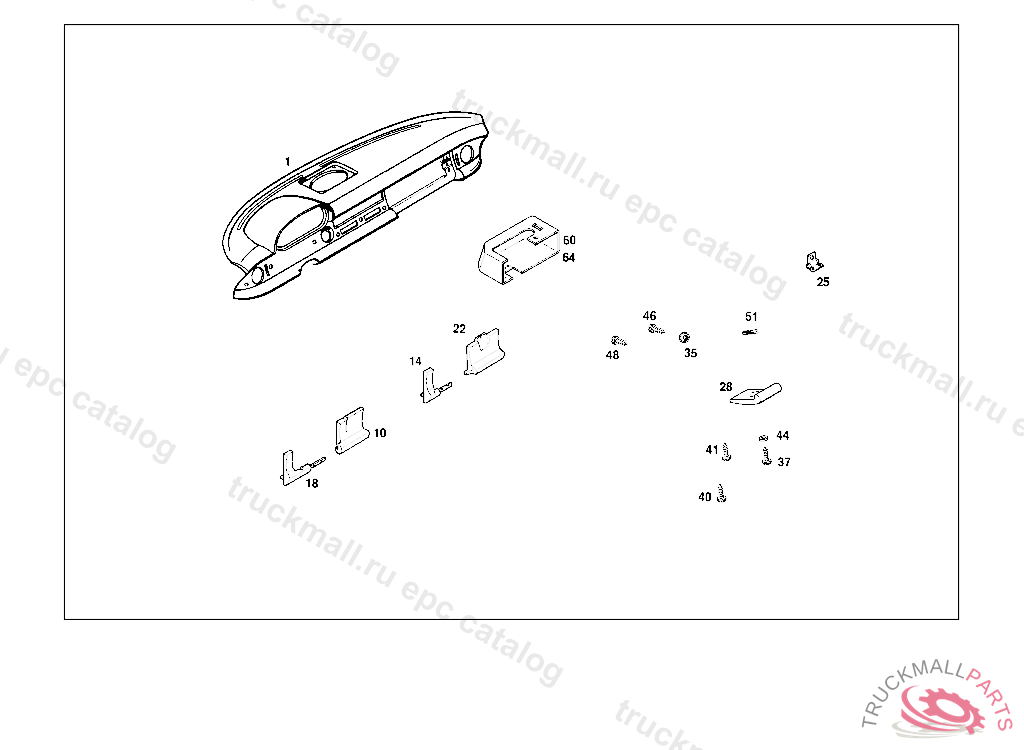

1
INSTRUMENT PANEL FOAM RUBBER PADDED, STATE COLOR NUMBER WHEN ORDERING
10
INSTRUMENT PANEL LEFT, STATE COLOR NUMBER WHEN ORDERING
10
ORNAMENTAL COVER , Replaced By: A1156807387
14
ORNAMENTAL COVER , Replaced By: A1156807487
14
INSTRUMENT PANEL RIGHT
18
INSTRUMENT PANEL LEFT
18
ORNAMENTAL COVER , Replaced By: A1156807587
22
GLOVE COMPARTMENT LID
22
GLOVE COMPARTMENT LID , Replaced By: A1156800598
25
HINGE
28
PROTECTIVE STRIP , STATE COLOR NUMBER WHEN ORDERING
35
WASHER
35
WASHER , Replaced By: A3019900042
37
SCREW
40
SHEET METAL SCREW
41
SHEET METAL SCREW , Replaced By: N000000000463
44
WASHER BOOT TO CAB FLOOR
44
WASHER , Replaced By: N000433005304
46
SHEET METAL SCREW , Replaced By: N007982003209
46
SHEET METAL SCREW GLOVE COMPARTMENT TO INSTRUMENT PANEL
48
SHEET METAL SCREW MODULE TO HOUSING
48
SHEET METAL SCREW , Replaced By: N000000000453
51
LOCK , FROM CHASSIS: 010 012069 110 026452
60
GLOVE COMPARTMENT
60
GLOVE COMPARTMENT , Replaced By: A1156890491
64
GLOVE COMPARTMENT , Replaced By: A1156890591
64
GLOVE COMPARTMENT
999
GROMMET
999
CLIP
999
LOCK WASHER BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
999
INSULATING HOSE (ORDER BY THE METER)
999
SCREW
999
GLOVE COMPARTMENT
999
GLOVE COMPARTMENT
999
INSTRUMENT PANEL , STATE COLOR NUMBER WHEN ORDERING CUT OUT OPENING FOR DOME LAMP SWITCH YOURSELF ON INSTRUMENT PANEL HAVING 10.5-MM-DIA.MOUNTING HOLE FOR GLOVE COMPARTMENT LIGHTING,ONLY USE 000 821 20 52 SWITCH AND 116 99000 65 SLOTTED NUT,REWORK MAIN CABLE HARNESS
999
MOUNTING MATERIAL MOUNTING MATERIALS
999
MOUNTING MATERIAL MOUNTING MATERIALS
999
PLUG HOUSING
999
PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
999
PLUG , Replaced By: A0085453728, +002A0035452626, +001A0085453828
999
PLUG , Replaced By: A0095454028, +002A0015453826, +001A0095454128
