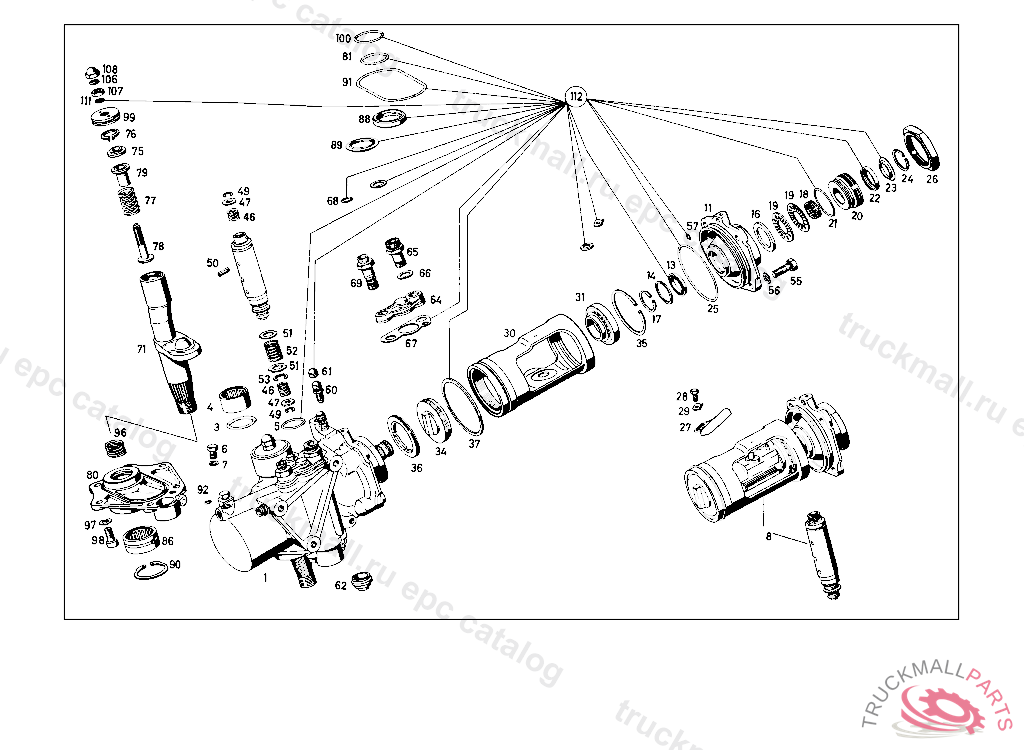

Поз.
Артикул
Описание
1
STEERING BOX ASSEMBLY , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
3
SEAL RING
3
SEAL RING , Replaced By: A0139973648
4
NEEDLE BEARING
5
SEAL RING
6
SCREW PLUG MEASURING CONNECTION
7
SEAL RING SCREW PLUG
8
PISTON
11
STEERING BOX COVER
13
GASKET
14
THRUST WASHER
16
THRUST WASHER
17
LOCK
18
NEEDLE BEARING
19
ROLLER BEARING
20
THREADED INSERT
21
SEAL RING STEERING NUT BEARING 12.4X1.78 MM
22
SEAL RING
23
SEAL RING
24
LOCK
25
SEAL RINGTO 388 476 71 69
25
SEAL RING , Replaced By: A0149976148
26
NUT
27
CLAMP
28
SCREW BALL GUIDE TO PISTON
29
LOCK BALL GUIDE TO PISTON
30
PISTON
31
ANGULAR CONTACT BEARING
34
COVER
35
LOCK
36
SCREW COLLAR
37
SEAL RING
46
SPRING
47
THRUST WASHER *** 1.0MM
49
LOCK
50
CLAMPING PIN
51
WASHER
52
SPRING
53
LOCK
55
SCREW END PIECE TO EXHAUST PIPE M 10X25
56
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
57
SEAL RING
60
BLEEDER VALVE OIL DRAIN
61
PROTECTIVE CAP , Replaced By: A0004217187
61
PROTECTIVE CAP ,5 962906
62
COVER
64
COVER
65
FITTING , UP TO CHASSIS: 023 009058
66
SEAL RING
67
GASKET
68
SEAL RING
69
FITTING
71
STEERG. WORM SECTOR SHAFT , UP TO CHASSIS: 023 009058
75
THRUST WASHER , UP TO CHASSIS: 023 009058
76
LOCK
76
LOCK , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0049949241
77
SPRING
78
SCREW
79
THRUST PIECE
80
STEERING BOX COVER
81
SEAL RING , Replaced By: A0139973648
81
SEAL RING
86
NEEDLE BEARING
88
SEAL RING
89
SEAL RING
90
LOCK BELL HOUSING
91
SEAL RING STEERING NUT BEARING 75X3 MM
92
SEAL RING
96
SPRING
97
SPRING WASHER , Replaced By: N000137008212
98
SCREW. CAP BOLT COVER TO CASE M8X25
98
SCREW , Replaced By: N000912008202
99
NUT
100
SEAL RING
106
SEAL RINGTO 001 431 72 14
107
NUT
108
CAP NUT
111
SEAL RING LINE CONNECTION
112
GASKET KIT
112
REPAIR KIT , Replaced By: A1094600261
999
ROLLER BEARING
999
ROLLER BEARING
999
SEAL RING , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0099977245
999
LOOM TIE TO MOUNT PLASTIC PIPING
999
CLAMP , Replaced By: A1239950320
999
SPACER TUBE
999
STEERING BOX COVER
999
RUBBER RING
999
CLAMP FUEL LINE TO BRACKET
999
STEERING BOX COVER , Replaced By: A1094600215
999
STEERING BOX COVER , Replaced By: A1094600315
999
STEERING BOX COVER , Replaced By: A1124602014
999
STEERING BOX COVER , Replaced By: A1124602114
999
STEERING BOX COVER
999
THRUST WASHER 1,1 MM, AS REQUIRED
999
THRUST WASHER 1,2 MM, AS REQUIRED
999
THRUST WASHER 1,3 MM, AS REQUIRED
999
THRUST WASHER , Replaced By: A1124660962
999
THRUST WASHER 1,4 MM, AS REQUIRED
999
THRUST WASHER 1,6 MM, AS REQUIRED
999
THRUST WASHER 1,7 MM, AS REQUIRED
999
THRUST WASHER 1,8 MM, AS REQUIRED
999
THRUST WASHER 1,9 MM, AS REQUIRED
999
COVER
999
THRUST WASHER 2,0 MM, TO BE ADAPTED DURING ASSEMBLY
999
HOSE18 MM
999
LINE , Replaced By: A1124601024
999
OIL TANK
999
LINE
999
PISTON
999
STEERING BOX ASSEMBLY , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
PISTON
999
PITMAN ARM
999
BRACKET , Replaced By: A1144660440
999
HOSE , Replaced By: A1149971282
999
HOSE , Replaced By: A1149973782
999
HOSE FROM PUMP TO STEERING, 123.000,023 054174 123.020 042385 123.026 025464 123.102,123 037610 123.120 059166 123.126 024302
999
OIL TANK , Replaced By: A1144600283
999
LINE ,114.005,007,008,015,017 012726 114.010 015671 ALSO INSTALLED ON: 015728 115.015 010340 ALSO INSTALLED ON: 010347,010405,010406 115.100,102,103,110,112 029020 115.115 013140 115.000,001,002,010 013351 ALSO INSTALLED ON: 013355,013825
999
OIL TANK
999
LINE , 115.000,002,010 026846 115.015 024432 115.100,102,103,110,112 058503 115.115 026988, Replaced By: A1154600624, +001A1159972482
999
STEERING BOX ASSEMBLY
999
STEERING BOX ASSEMBLY , EXHAUST STOCK OF OLD PART NUMBER FIRST UP TO CHASSIS 015:10/50,12/52 310259 015:20/60,22/62 309324 005,017 10/50,12/52 084434 005,017 20/60,22/62 083599 110:10/50,12/52 466359 110:20/60,22/62 460169 114:10/50,12/52 050055 114:20/60,22/62 049120 115:10/50,12/52 348094 115:20/60,22/62 346554 105,107,108,117,119:10/50,12/52 125697 105,107,108,117,119:20/60,22/62 124530 000,002,010,100,102,103,112 UNTIL PRODUCTION STOP FOR THE NEW PART NUMBER,SEE UNIT SPARE PARTS LIST, Replaced By: A1154602201
999
BRACKET OIL TANK
999
RUBBER RING
999
BRACKET , Replaced By: A1154660540
999
HOSE , Replaced By: A1149971282
999
HOSE ,114.005,007,008,015,017 012726 114.010 015671 ALSO INSTALLED ON: 015728 115.015 010340 ALSO INSTALLED ON: 010347,010405,010406 115.100,102,103,110,112 029020 115.115 013140 115.000,001,002,010 013351 ALSO INSTALLED ON: 013355,013825
999
HOSE , 115.000,002,010 026847 115.015 024433 115.100,102,103,110,112 058504 115.115 026989
999
SCREW , Replaced By: A2019900801
999
CLAMP , UP TO CHASSIS107.024 012078 107.044 029875
999
OIL TANK ,114.005,007,008,015,017 012726 114.010 015671 ALSO INSTALLED ON: 015728 115.015 010340 ALSO INSTALLED ON: 010347,010405,010406 115.100,102,103,110,112 029020 115.115 013140 115.000,001,002,010 013351 ALSO INSTALLED ON: 013355,013825
999
SCREW STEERING TO FRAME
999
CLAMP , Replaced By: A1109950401
999
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
COTTER PIN HYDRAULIC CYLINDER TO SWIVEL ARM
999
WASHER , Replaced By: N000433005304
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER BOOT TO CAB FLOOR
999
SCREW , Replaced By: N304017006020
999
NUT CYLINDER TO BRACKET TO0002902112
999
SHEET METAL SCREW PRE-GLOW TIME RELAY TO STEERING COLUMN JACKET TUBE CONSOLE
999
SHEET METAL SCREW
999
HOSE HAND BRAKE VALVE BLEEDING, ORDER BY THE METER
999
SCREW LICENSE PLATE TO BRACKET
999
NUT BATTERY MOUNTING
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
SHEET METAL SCREW ALARM UNIT TO STRUT
999
CLAMP , Replaced By: N000000000667
