Поз.
Артикул
Описание

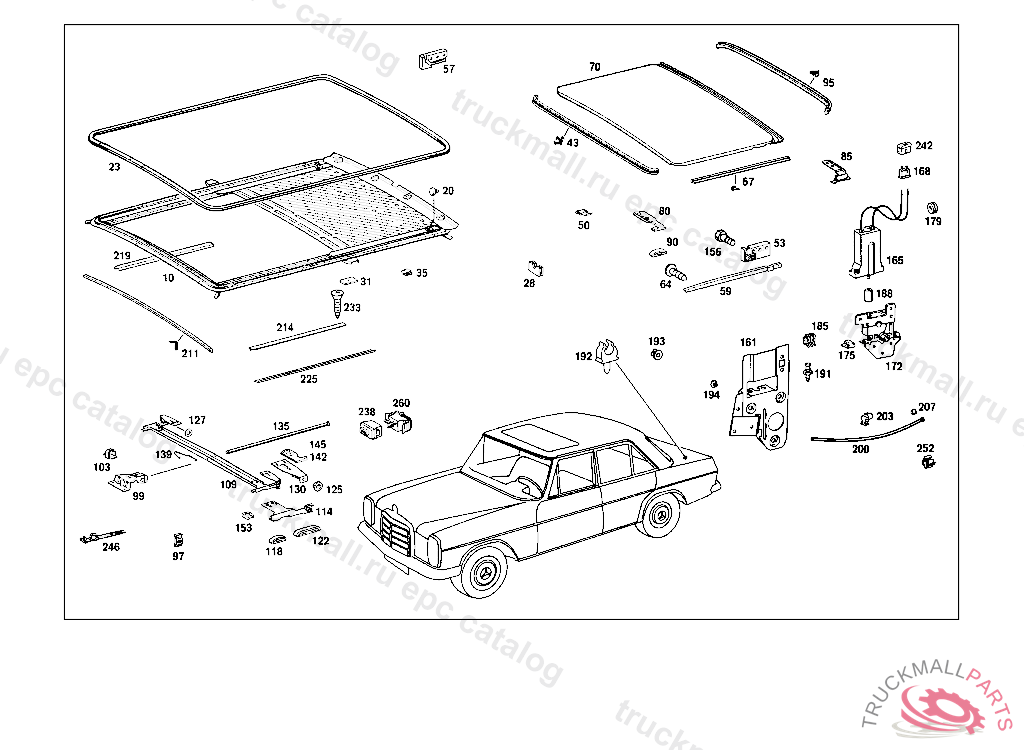

10
FRAME
20
RUBBER BUFFER TO PLUG THE MOUNTING HOLE USED FOR GROUND CONNECTION IN CASE OF R.H.D.
23
SEAL
28
SEAL
31
CARPET *** 2 MM, ORDER BY THE METER
35
CLIP
43
SEAL BOTTOM FRAME,FRONT
50
LOCK
53
STOP AT MOUNTING RAIL,LEFT
57
STOP AT MOUNTING RAIL,RIGHT
59
RAIL LEFT
64
SCREW
67
SEAL480 MM
70
SLIDING ROOF PLATE
70
SLIDING ROOF PLATE , Replaced By: A1237801821
80
ANGLE , Replaced By: A1157820012, +001A1157820130
85
ANGLE REAR LEFT
90
SLIDING JAW , 023 143560 033 058449 123 130866 130 149678
95
SEAL
97
NUT RETAINER , Replaced By: A0009909191
97
NUT RETAINER
99
PLATE
103
LOCK
109
BRIDGE
114
ANGLE LEFT
118
SLIDING JAW , 023 143560 033 058449 123 130866 130 149678
122
SLIDING JAW
125
MOUNTING
127
ROLLER LIFTING ANGLE
130
ANGLE
135
TUBE
139
SPRING
142
PAD HEIGHT ADJUSTMENT,LEFT
145
PAD HEIGHT ADJUSTMENT,RIGHT
153
NUT RETAINER
156
SCREW
161
BRACKET FOR ELECTRIC MOTOR AND GEARING
165
ELECTRIC MOTOR
168
PLUG , Replaced By: A0095454028, +002A0015453826, +001A0095454128
168
PLUG HOUSING
172
GEARING ELECTRIC SLIDING ROOF, 033 102015 123 329277 130 276372
175
CLIP
179
GROMMET GEARING TO BRACKET
185
CLIP
188
CONNECTOR
191
LINK EMERGENCY CRANK, UP TO CHASSIS126.021 004328 022,023 014559 032,033 006153 036,037 005335 120 000195
192
BRACKET CONNECTOR
193
CLIP CONNECTOR
194
BUSHING MOTOR TO BRACKET
200
TUBE
203
CLIP
207
CAP
211
COVER RAIL
214
SLIDING RAIL FRONT LEFT, UP TO CHASSIS: 114.010 056741 114.011 002951 114.015 068452 115.010 066808 115.015 073738 115.110 168198 115.115 080563
214
SLIDING RAIL LEFT
219
SLIDING RAIL FRONT RIGHT
225
SLIDING RAIL LEFT
233
SCREW
233
SCREW , Replaced By: A1409900436
238
CONNECTOR 4-POLE
242
PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
242
PLUG , Replaced By: A0085453728, +002A0035452626, +001A0085453828
246
LOOM TIE
252
CLIP CABLE HARNESS TO ROOF RAIL
260
SWITCH
999
FUSE , Replaced By: A0005458334
999
FUSEA16
999
ELECTRIC MOTOR
999
CARBON BRUSH SET , Replaced By: A0008352575
999
CARBON BRUSH SET
999
FOAM PLASTICS , Replaced By: A0009833598
999
FOAM PLASTICS , Replaced By: A0009833598
999
FELT60X20X2 MM, ORDER BY THE METER
999
FOAM PLASTICS FRONT ROOF RAIL
999
STRIP
999
FELT , Replaced By: A0009830198
999
METAL SECTION , ORDER BY THE METER, Replaced By: A1087820198
999
EDGE GUARD SECTION , Replaced By: A0029873572
999
LOCK FRAME TO REINFORCEMENT FRAME
999
LOOM TIE , Replaced By: A0019974390
999
LOOM TIE , Replaced By: A0019974390
999
LOOM TIE TO MOUNT PLASTIC PIPING
999
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
999
SLIDING JAW , Replaced By: A1157800083
999
SLIDING JAW , Replaced By: A1157802712
999
SLIDING RAIL RIGHT
999
INSULATION , Replaced By: A0009830198
999
STIFFENING
999
BRACKET (WITH MOTOR AND GEARING)
999
BRACKET FOR ELECTRIC MOTOR AND GEARING
999
BRACKET (WITH MOTOR AND GEARING)
999
SLIDING JAW , NOT USED
999
FRAME , Replaced By: A1157801229, +001A1237822526, +001A1237822626
999
ANGLE RIGHT
999
ANGLE REAR RIGHT
999
ANGLE , Replaced By: A1157802712
999
ANGLE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 114.060 106899 114.062 104000 115.015 220900 115.017 014515 115.110 418986 115.115 225585 115.117 028441, Replaced By: A1157821912, +001A1157800183
999
TUBE , Replaced By: A1157820617
999
SPRING , Replaced By: A1157820135
999
SLIDING JAW , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 114.060 106899 114.062 104000 115.015 220900 115.017 014515 115.110 418986 115.115 225585 115.117 028441, Replaced By: A1157800183, +001A1157821912
999
TUBE , Replaced By: A1157820617
999
RAIL RIGHT
999
PAD GUIDE PLATE, NO LONGER AVAILABLE
999
SLIDING RAIL , Replaced By: A1107821326
999
PAD , Replaced By: A0009873272
999
SLIDING RAIL , Replaced By: A1107821426
999
SLIDING RAIL , Replaced By: A1237822526
999
SLIDING RAIL , Replaced By: A1237822626
999
ANGLE FRONT LEFT AND RIGHT
999
CLIP , UP TO CHASSIS: 114.021 001841 114.022 002116
999
SLIDING RAIL RIGHT
999
WASHER , Replaced By: N000433005304
999
WASHER , UP TO CHASSIS: 017 029988 114 000523 117 064694
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
LOCK WASHER. SPRING LOCK WASHER ELECTRIC CABLE TO HORN TO 004 542 44 20 /45 20
999
WASHER BOOT TO CAB FLOOR
999
RIVET
999
SCREW SHUT-OFF VALVE TO BRACKET
999
SCREW BRACKET TO TAIL LAMP BRACKET
999
SCREW COVER PLATE TO BRACKET
999
SCREW COVER PLATE TO BRACKET
999
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
999
NUT TACHOGRAPH TO BRACKET
999
NUT BALL PIVOT TO LEVER
999
SCREW
999
TOOTHED WASHER , 123.020 082784 123.023 100522 123.026 050534 123.120 116041 123.123 080963 123.126 045537 123.130 101733
999
SHEET METAL SCREW BRACKET TO CAB FLOOR
999
SHEET METAL SCREW , NOT USED
999
SHEET METAL SCREW FENDER TO BODY
999
SHEET METAL SCREW
999
SCREW ELECTRIC CABLE TO FUSE BOX
999
FUSE , Replaced By: A0015457534
999
LOCK WASHER T-FITTING TO BRACKET
999
LOCK WASHER
999
LOCK WASHER BRACKET TO STEERING COLUMN END
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
