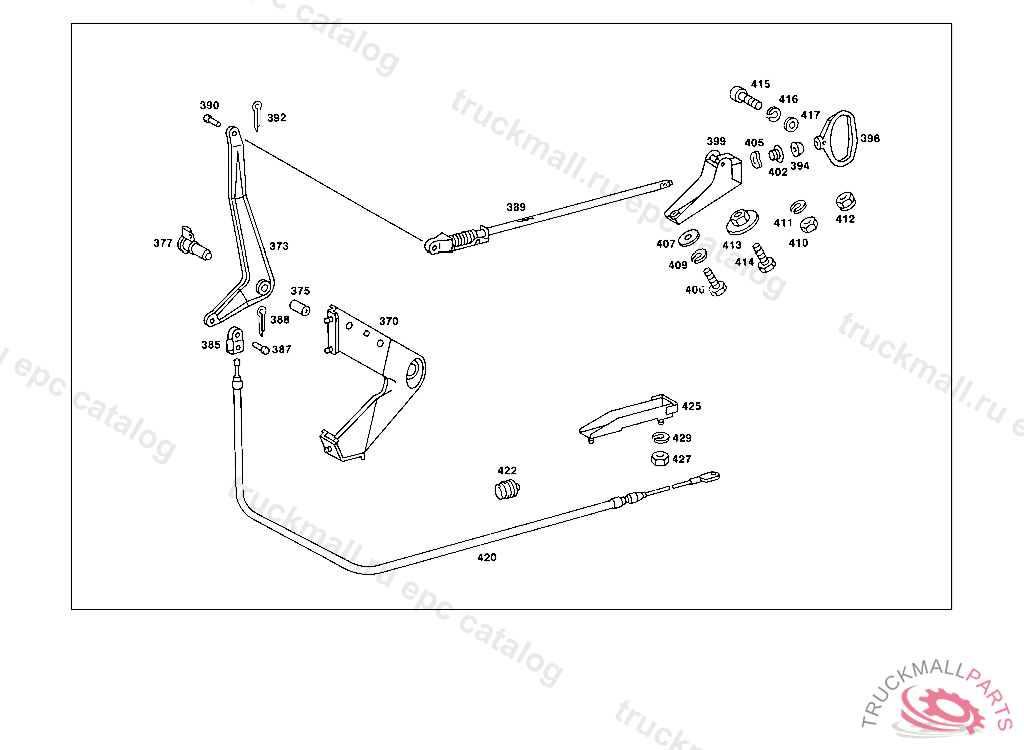

Поз.
Артикул
Описание
370
SUPPORT
373
BRAKE LEVER
375
BUSHING
377
PIN
385
CONNECTOR
387
PIN
388
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
389
RATCHET ROD
390
PIN
392
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
394
DAMPING RING
396
HANDLE , 000 093251 003 046617 102,103 073879 105 093170
399
BRACKET
402
SCREW
405
SPRING WASHER LEVER TO BRACKET
406
SCREW DELIVERY AND SUCTION HOSES TO COUPLING MOUTH CROSS MEMBER,5 598039
407
WASHER
409
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
410
NUT BATTERY MOUNTING
410
NUT CYLINDER TO BRACKET TO0002902112
411
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
412
NUT OIL TANK TO BRACKET
412
NUT , Replaced By: N913002006009
413
BRACKET
414
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
414
SCREW , Replaced By: N304014008001
415
SCREW HANDLE TO RATCHET ROD
416
LOCK WASHER CONTROL UNIT TO CAB
417
WASHER BOOT TO CAB FLOOR
417
WASHER , Replaced By: N000433005304
420
BRAKE CABLE
422
CUP
425
BRACKET
427
NUT BALL PIVOT TO LEVER
429
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
BUSHING , Replaced By: A0004310950
999
FILLER CAP TEVES
999
RESERVOIR
999
RESERVOIR , UP TO CHASSIS: 020: 20/60, 22/62 016859 024,025: 20/60, 22/62 019252 028,029: 20/60, 22/62 017377 032,033: 20/60, 22/62 017500, Replaced By: A0014314202, +001A0015426317
999
TS BRAKE PAD. BRAKE PAD PARTS KIT
999
BRAKE BOOSTER ASSEMBLY , 10/50 / 12/52: 000 159696 003 079166 007 064069 102,103 149942 105 165000 20/60 / 22/62: 000 160203 003 078834 007 064270 102,103 149109 105 164999, Replaced By: A0024306830, +001A1232920150
999
BRAKE SHOE , NO LONGER AVAILABLE INDIVIDUALLY ORDER RANGE OF DELIVERY
999
REPAIR KIT TURNBUCKLE, 002124
999
LOCK , UP TO CHASSIS: 007,008,015,017 261054 011 110919 060 122284 062 108777
999
BRAKE SHOE
999
HANDLE , Replaced By: A1234200395
999
BRAKE CABLE , UP TO CHASSIS: 020 041519 024,025 042191 028,029 026814 032,033 026269, Replaced By: A1164201385, +001A1145860142
999
BRAKE CABLE , UP TO CHASSIS: 020 041519 024,025 042191 028,029 026814 032,033 026269, Replaced By: A1164201485, +001A1145860142
999
REPAIR KIT BRAKE DISC TO WHEEL HUB
999
SEAL RINGBOSCH
