Поз.
Артикул
Описание

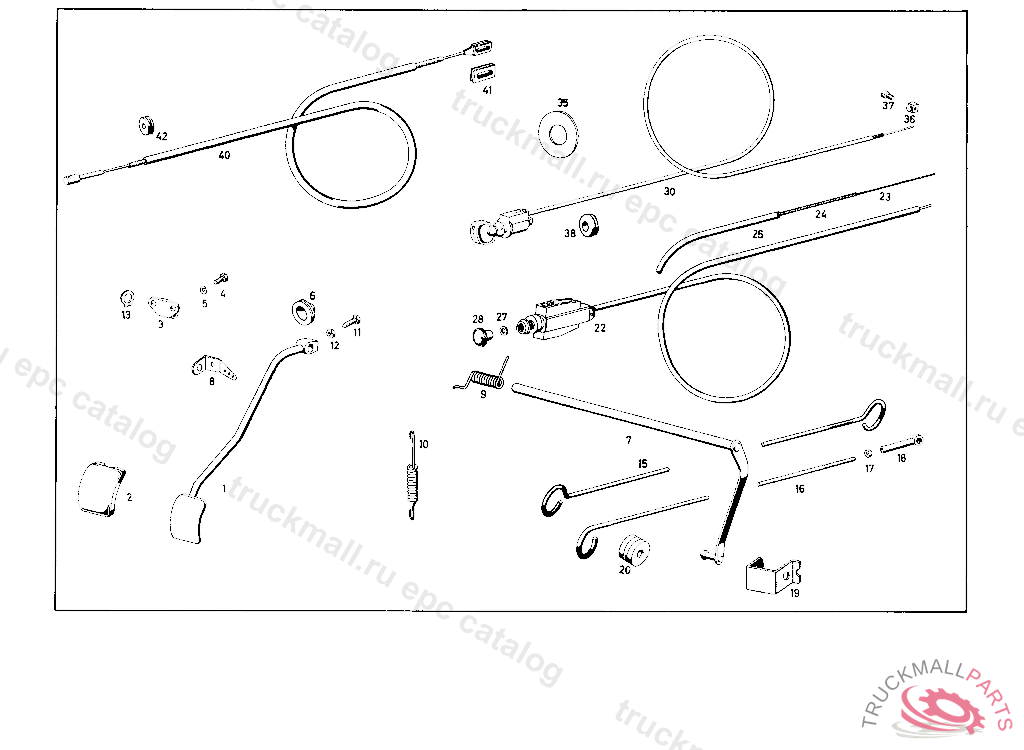

1
ACCELERATOR PEDAL
2
UBERZUG MIT EINLAGE. COVERING WITH INSERT
3
BEARING
4
SCREW
5
SPRING WASHER , Replaced By: N000137006204
6
GROMMET
7
CONTROL SHAFT
8
LEVER FOR RELEASE SPRING
9
RETURN SPRING. RELEASE SPRING FOR ACCELERATOR PEDAL
10
RELEASE SPRING FOR ACCELERATOR PEDAL
11
SCREW LEVER TO SHAFT, 014 UP TO CHASSIS 039989,021/023 UP TO CHASSIS 039959
12
NUT , Replaced By: N304032006004
13
CIRCLIP G 12X1,2 N 55 E FOR ACCELERATOR PEDAL TO CONTROL SHAFT AND MOUNTING
16
PUSH ROD , AS OF CHASSIS 024677 180 DC
17
HEX. NUT M 5 DIN 934-5 S. NUT PLUG SOCKET TO FRAME
18
END PIECE , 014 UP TO CHASSIS 039989,021/023 UP TO CHASSIS 039959
19
BRACKET FOR THRUST ROD FOR THRUST ROD AT CONTROL LEVER
20
BOOT
30
WIRE CABLE WIRE 1, 407 MM LONG FOR IDLING ADJUSTMENT, SHORTEN IN LENGTH ACC. TO REQUIREMENTS
35
RUBBER RING , Replaced By: A0009870741
36
RING WIRE CABLE TO LEVER
37
SCREW
40
WIRE CALBE. WIRE CABLE FOR GLOW STARTER SWITCH FROM CHASSIS 9502701
41
RUBBER PAD. RUBBER PIECE FOR TAIL, FRONT - WIRE CABLE
42
GROMMET FOR PASSAGE OF LINE
999
MOUNTING CLAMP D 1 N 285 B WIRE CABLE AND ELECTRIC LINE FROM RESISTOR TO GLOW PLUG, UP TO CHASSIS 024676 180 DB
999
MOUNTING CLAMP. CLAMP
999
SNAP RING. BALL SOCKET
999
INSULATING HOSE5 X 0.6 MM, ORDER BY THE METER
999
LENS HEAD. OVAL HEAD SHEET-METAL SCREW B 4,2X13 DIN 7981 WIRE CABLE AND ELECTRIC LINE FROM RESISTOR TO GLOW PLUG, UP TO CHASSIS 024676 180 DB
999
SPRING WIRE III 1,2 DIN 2076, ORDER BY THE METER
999
HEX. HEAD. SCREW WIPER INTERMITTENT ACTION RELAY M 5X12
999
LOCK WASHER TRAILER CONTROL VALVE TO BRACKET
999
COTTER PIN
999
SCREW
999
WIRE CABLE. DRAHTZUG FUR EINSPRITZPUMPE
999
NABE. HUB FOR RELEASE SPRING
999
THRUST ROD, 349 MM LONG. PUSH ROD , UP TO CHASSIS 024676 180 DB
999
THRUST ROD, 369 MM LONG. PUSH ROD , UP TO CHASSIS 024676 180 DB
999
CLAMP , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1109950001
999
CLAMP
999
SEAL WASHER
999
ACCELERATOR PEDAL
999
WIRE CALBE. WIRE CABLE FOR GLOW STARTER SWITCH FROM CHASSIS 9502701
999
CONTROL SHAFT
999
LEVER FOR RELEASE SPRING
999
MOUNTING CLAMP. FIXING CLIP FOR WIRE CABLE AT BEARING, CONTROL SHAFT
999
ACCELERATOR PEDAL , UP TO CHASSIS 024676 180 DB
999
ACCELERATOR PEDAL , UP TO CHASSIS 024676 180 DB
999
ACCELERATOR PEDAL , Replaced By: A1203011001
999
RUBBER BUSHING FOR CONTROL LEVER FOR THRUST ROD AT CONTROL LEVER
999
WIRE CABLE WIRE 1, 407 MM LONG FOR IDLING ADJUSTMENT, Replaced By: A1213001032
999
, Replaced By: A1213001032
999
CONTROL SHAFT WITH LEVER
999
, Replaced By: A1213001032
999
, Replaced By: A1213001032
999
CONTROL SHAFT WITH LEVER
999
, Replaced By: A1213001032
999
, Replaced By: A1213001032
999
IDLING ADJUSTMENT
999
MOUNTING FOR ACCELERATOR PEDAL, UP TO CHASSIS 024676 180 DB
999
GROMMET HOSE GUIDE, 000,001,004,010 UP TO CHASSIS 101085,100,101,104,110 UP TO CHASSIS 166807
999
KNOB, DARK GREY. BUTTON FROM CHASSIS 002430
999
REPLACED BY 110 300 02 07 CHOKE CABLE TO INSTRUMENT PANEL, Replaced By: A1103000207
999
GROMMET WIRE CABLE THROUGH COWL, AS OF CHASSIS 024677 180 DC
999
GROMMET CLUTCH LINE TO BRACKET
999
CLIP13 MM, Replaced By: A0129884678
999
MOUNTING CLIP. FIXING CLAMP FOR WIRE CABLE AT FRONT WALL PANELLING
999
CLIP
999
WIRE SPIRAL , ORDER BY THE METER
999
WIRE SPIRAL860 MM, WITH GASOLINE ENGINE ORDER BY THE METER
