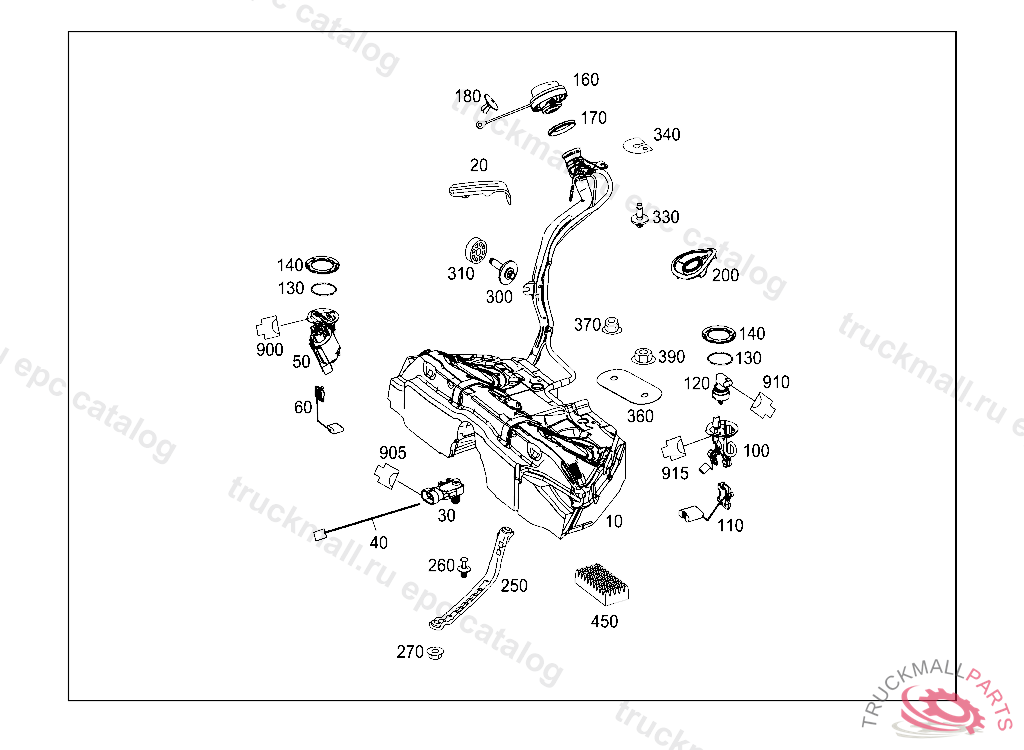

Поз.
Артикул
Описание
10
FUEL TANK
10
FUEL TANK
10
FUEL TANK
20
BRACKET ATTACHMENT OF VENT LINE
30
PRESSURE SENSOR
40
ELECTRICAL WIRING HARNESS TANK PRESSURE SENSOR ADAPTER LINE
50
FUEL DELIVERY MODULE IN TANK AT RIGHT WITHOUT FUEL LINES
60
SENDER UNIT
100
SUCTION JET PUMP IN TANK AT LEFT WITH LINES
110
SENDER UNIT
120
PRESSURE SENSOR
130
O-RING PUMP TO RESERVOIR
130
O-RING PUMP TO RESERVOIR 135.5X6
140
BAYONET TYPE CAP SUPPLY UNIT AT TANK
160
FILLER CAP
160
FILLER CAP
170
SEAL RING FILLER CAP
170
SEAL RING FILLER CAP TO FILLER NECK
180
EXPANSION RIVET. RIVET
200
FEED-THROUGH GROMMET SEAL FILLER NECK
250
RETAINING STRAP TANK TO BODYSHELL
250
RETAINING STRAP TANK TO BODYSHELL
260
EXPANSION RIVET
270
COMBINATION NUT TANK TO BODYSHELL M8
300
BOLT TANK TO BODY, CENTER M8X35
310
WASHER FILLER NECK TO BODY, BOTTOM
330
EXTERNAL HEXAL. HD. BOLT FILLER NECK TO BODY, TOP
340
GASKET BETWEEN TANK LOCKING BASE AND VEHICLE SHELL
360
MOUNTING PLATE BETWEEN FUEL TANK AND CHASSIS
370
COMBINATION NUT TANK TO BODYSHELL M8
390
COMBINATION NUT TANK TO BODYSHELL M8
450
PAD ON TANK
900
CLUTCH PLUG CONNECTION FOR FUEL PUMP WIRING HARNESS 7-PIN SLK2.8, MLK1.2,X36/3
905
CLUTCH. PIN BUSHING HOUSING SIREN
910
CLUTCH FUEL PRESSURE SENSOR 3-PIN MLK1.2,B4/7
915
COUPLING HOUSING FUEL LEVEL SENSOR 3-PIN MLK1.2,X36/3
