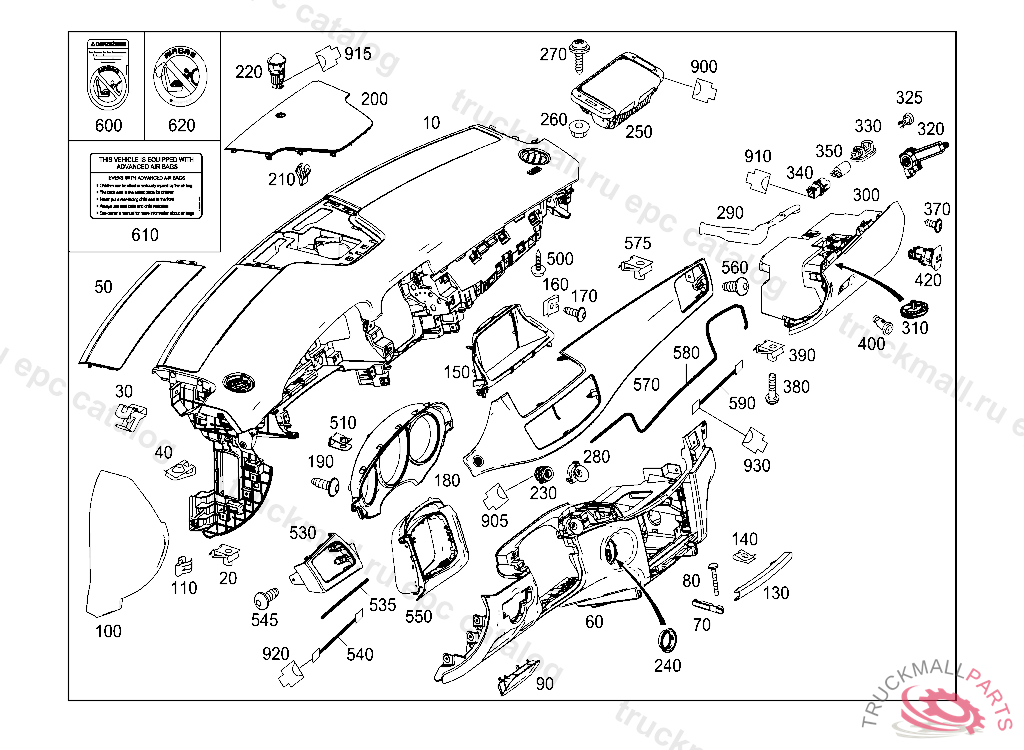

Поз.
Артикул
Описание
10
INSTRUMENT PANEL UPPER PART, 3E49 967A/987AQFT218A3028 DESIGNO RED PEPPER
10
INSTRUMENT PANEL UPPER PART
10
INSTRUMENT PANEL UPPER PART
10
INSTRUMENT PANEL UPPER PART
10
INSTRUMENT PANEL UPPER PART, 3E49 967A/987AQFT218A3028 DESIGNO RED PEPPER
10
INSTRUMENT PANEL UPPER PART
10
INSTRUMENT PANEL UPPER PART, 3E49 977A/997AQFT218A3029 DESIGNO RED PEPPER
10
INSTRUMENT PANEL UPPER PART
10
INSTRUMENT PANEL UPPER PART, 3E49 977A/997AQFT218A3029 DESIGNO RED PEPPER
20
FUSE FASTENING SENSOR LEFT/RIGHT
30
CLIP AT COVERING
40
SHEET METAL NUT SUPPORT TO SUPPORT B4.2
50
COVER INSTRUMENT PANEL,TOP LEFT
50
COVER INSTRUMENT PANEL,TOP RIGHT
60
INSTRUMENT PANEL LOWER PART
60
INSTRUMENT PANEL LOWER PART
60
INSTRUMENT PANEL LOWER PART
60
INSTRUMENT PANEL LOWER PART
60
INSTRUMENT PANEL LOWER PART
60
INSTRUMENT PANEL LOWER PART
60
INSTRUMENT PANEL LOWER PART
60
INSTRUMENT PANEL LOWER PART
60
INSTRUMENT PANEL LOWER PART
60
INSTRUMENT PANEL LOWER PART
60
INSTRUMENT PANEL LOWER PART
60
INSTRUMENT PANEL LOWER PART
60
INSTRUMENT PANEL LOWER PART
60
INSTRUMENT PANEL LOWER PART
60
INSTRUMENT PANEL LOWER PART
60
INSTRUMENT PANEL LOWER PART
60
INSTRUMENT PANEL LOWER PART
60
INSTRUMENT PANEL LOWER PART
60
INSTRUMENT PANEL LOWER PART
60
INSTRUMENT PANEL LOWER PART
60
INSTRUMENT PANEL LOWER PART
60
INSTRUMENT PANEL LOWER PART
60
INSTRUMENT PANEL LOWER PART
60
INSTRUMENT PANEL LOWER PART
70
LOCKING MECHANISM CONTROL UNIT ON INSTRUMENT PANEL
80
HEXALOBULAR BOLT MOUNTING, LOCK M4X25
90
COVER RELEASE HANDLE FOOT-OPERATED PARKING BRAKE, 9051QFT218A3015 BLACK
100
COVER INSTRUMENT PANEL RIGHT
100
COVER INSTRUMENT PANEL RIGHT
100
COVER INSTRUMENT PANEL LEFT
100
COVER INSTRUMENT PANEL LEFT
110
CLIP PANELLING
130
COVER UPPER CONTROL PANEL
130
COVER UPPER CONTROL PANEL
140
CLIP AT COVERING
150
COVER DISPLAY FRAME, 9116QFT218A3013 BLACK DULL
150
COVER DISPLAY FRAME, 9116QFT218A3013 BLACK DULL
150
COVER DISPLAY FRAME, 9116QFT218A3013 BLACK DULL
160
CLIP PANELLING
170
HEXALOBULAR BOLT BRACKET TO BRACKET M5X20
180
COVER INSTRUMENT CLUSTER
180
COVER INSTRUMENT CLUSTER
190
BOLT FASTENING, GEAR HEIGHT ADJUSTMENT M5 X 18 MM
200
COVER INSTRUMENT PANEL TOP CENTER
200
COVER INSTRUMENT PANEL TOP CENTER
210
CLIP AT COVERING
220
SUN SENSOR AT INSTRUMENT PANEL
230
SENSOR INBOARD AIR TEMPERATURE SENSOR
240
ESCUTCHEON STEERING LOCK, F 50004620100331
250
PASSENGER AIRBAG
250
PASSENGER AIRBAG
260
NUT MOUNTING FRAME TO SUPPORT M6
270
HEXALOBULAR BOLT TIME-LAG RELAY M5X12
280
FIXTURE TEMPERATURE SENSOR
280
FIXTURE TEMPERATURE SENSOR
290
DUCT GLOVE COMPARTMENT VENTILATION
290
DUCT GLOVE COMPARTMENT VENTILATION
300
GLOVE BOX
300
GLOVE BOX
300
GLOVE BOX
300
GLOVE BOX
310
ESCUTCHEON GLOVE COMPARTMENT VENTILATION
320
ROTATIONAL DAMPER GLOVE COMPARTMENT, LATERAL
325
SPLIT PIN MOUNTING, DAMPER
330
INTERIOR LAMP UNDER SUN VISOR, J 42086420061222
340
LAMP HOLDER INTERIOR LAMP 12V-5W, J 42086420061222
350
BULBTO A 6955407048/7148,3825400311/0411
370
FILLISTER HEAD SCREW COVER AT INSTRUMENT PANEL BELOW STEERING COLUMN M5X18, A 04666620120228 A 08334820121218
380
HEXALOBULAR BOLT BRACKET TO BRACKET M5X20
380
HEX. ROUND SCREWS. SCREW BRACKET TO SUPPORT M5 X 20
390
FUSE FASTENING SENSOR LEFT/RIGHT
400
TUMBLER GLOVE COMPARTMENT, THEFT-RELEVANT PART
420
SOCKET-OUTLET CENTRAL CONSOLE REAR 12V
500
FILLISTER HEAD SCREW COVER AT INSTRUMENT PANEL BELOW STEERING COLUMN M5X18, A 04666620120228 A 08334820121218
510
LOCK. CLIP FASTENER HOUSING UPPER PART TO LOWER PART
530
MOULDING LEFT
530
ORNAMENTAL TRIM RIGHT
530
MOULDING RIGHT
530
ORNAMENTAL TRIM RIGHT
530
ORNAMENTAL TRIM RIGHT
530
ORNAMENTAL TRIM RIGHT
530
MOULDING LEFT
530
MOULDING RIGHT
530
ORNAMENTAL TRIM LEFT
530
ORNAMENTAL TRIM LEFT
530
ORNAMENTAL TRIM RIGHT
530
ORNAMENTAL TRIM LEFT
530
ORNAMENTAL TRIM LEFT
530
ORNAMENTAL TRIM LEFT
530
ORNAMENTAL TRIM LEFT
530
ORNAMENTAL TRIM RIGHT
530
ORNAMENTAL TRIM RIGHT
530
ORNAMENTAL TRIM LEFT
530
ORNAMENTAL TRIM LEFT
530
ORNAMENTAL TRIM LEFT
530
ORNAMENTAL TRIM RIGHT
535
OPTICAL FIBER TO TRIM STRIP
535
OPTICAL FIBER
540
ELECTRICAL WIRING HARNESS TO TRIM STRIP
545
BOLT FASTENING, GEAR HEIGHT ADJUSTMENT M5 X 18 MM
550
COVER MOLDING STEER. COLUMN JACKET TUBE
550
COVER MOLDING STEER. COLUMN JACKET TUBE
550
COVER STEER. COLUMN JACKET TUBE, Replaced By: A2186800608
550
COVER STEER. COLUMN JACKET TUBE, Replaced By: A2186800708
560
BOLT FASTENING, GEAR HEIGHT ADJUSTMENT M5 X 18 MM
570
MOULDING LEFT
570
ORNAMENTAL TRIM LEFT
570
ORNAMENTAL TRIM RIGHT
570
MOULDING LEFT
570
ORNAMENTAL TRIM RIGHT
570
ORNAMENTAL TRIM LEFT
570
ORNAMENTAL TRIM LEFT
570
ORNAMENTAL TRIM LEFT
570
ORNAMENTAL TRIM LEFT
570
ORNAMENTAL TRIM LEFT
570
ORNAMENTAL TRIM LEFT
570
ORNAMENTAL TRIM RIGHT
570
ORNAMENTAL TRIM RIGHT
570
ORNAMENTAL TRIM RIGHT
570
ORNAMENTAL TRIM RIGHT
570
ORNAMENTAL TRIM RIGHT
570
ORNAMENTAL TRIM LEFT
570
MOULDING RIGHT
570
ORNAMENTAL TRIM RIGHT
570
MOULDING RIGHT
570
ORNAMENTAL TRIM RIGHT
575
FUSE FASTENING SENSOR LEFT/RIGHT
580
OPTICAL FIBER TO TRIM STRIP
590
ELECTRICAL WIRING HARNESS TO TRIM STRIP
600
INFORMATION LABEL NOTE ON FRONT PASSENGER AIRBAG ONINSTRUMENT PANEL
600
GUIDE SIGN IN FRENCH, ENGLISH
600
GUIDE SIGN IN TURKEY/ENGLISH
600
GUIDE SIGN IN HUNGARIAN / ENGLISH
600
STICKER NOTE ON FRONT PASSENGER AIRBAG ONINSTRUMENT PANEL
600
GUIDE SIGN IN DANISH, ENGLISH
600
GUIDE SIGN IN JAPANESE, ENGLISH
600
GUIDE SIGN IN KOREAN, ENGLISH
600
GUIDE SIGN IN INDONESIAN, ENGLISH
600
GUIDE SIGN IN MALAYSIAN, ENGLISH
600
GUIDE SIGN IN POLISH, ENGLISH
600
INFORMATION LABEL NOTE ON FRONT PASSENGER AIRBAG ONINSTRUMENT PANEL
600
GUIDE SIGN IN SLOVAKIAN, ENGLISH
600
GUIDE SIGN IN ITALIAN, ENGLISH
600
INFORMATION LABEL NOTE ON FRONT PASSENGER AIRBAG ONINSTRUMENT PANEL
600
GUIDE SIGN ARABIC/ENGLISH/FRENCH
600
GUIDE SIGN IN FINNISH, ENGLISH
600
GUIDE SIGN IN GERMAN, ENGLISH
600
GUIDE SIGN IN DUTCH, ENGLISH
600
INFORMATION LABEL NOTE ON FRONT PASSENGER AIRBAG ONINSTRUMENT PANEL
600
GUIDE SIGN IN RUSSIAN, ENGLISH
600
INFORMATION LABEL NOTE ON FRONT PASSENGER AIRBAG ONINSTRUMENT PANEL
600
GUIDE SIGN IN CZECH, ENGLISH
600
INFORMATION LABEL NOTE ON FRONT PASSENGER AIRBAG ONINSTRUMENT PANEL
600
GUIDE SIGN IN PORTUGUESE, ENGLISH
600
GUIDE SIGN IN PORTUGUESE/BRAZILIAN, ENGLISH
600
GUIDE SIGN ENGLISH
600
GUIDE SIGN IN GREEK, ENGLISH
600
INFORMATION LABEL NOTE ON FRONT PASSENGER AIRBAG ONINSTRUMENT PANEL
600
GUIDE SIGN IN CHINESE, ENGLISH
600
INFORMATION LABEL NOTE ON FRONT PASSENGER AIRBAG ONINSTRUMENT PANEL
600
GUIDE SIGN IN SPANISH, ENGLISH
600
GUIDE SIGN IN SWEDISH, ENGLISH
610
GUIDE SIGN NOTE ON FRONT PASSENGER AIRBAG ONINSTRUMENT PANEL
620
GUMMED LABEL CO-DRIVER'S SIDE
900
REP.SET CONTACT SQUIB 2 FRONT PASSENGER AIRBAG, GREEN 2-PIN 0.5MM2,R12/5, ALSO ORDER: TERMINAL BLOCK 2 X A 001 546 99 41, CABLE TIE5 X A 002 997 24 90
900
REP.SET CONTACT SQUIB 1 FRONT PASSENGER AIRBAG, YELLOW 2-PIN 0.5MM2,R12/4, ALSO ORDER: TERMINAL BLOCK 2 X A 001 546 99 41, CABLE TIE5 X A 002 997 24 90
905
SOCKET HOUSING TRUNK LID RELEASE SWITCH 4-PIN MQS,S15/1
910
HOUSING SEAT RECOGNITION FUNCTION SWITCH 2-PIN MQS,S100
915
SOCKET HOUSING TRUNK LID RELEASE SWITCH 4-PIN MQS,S15/1
920
PIN BUSHING HOUSING CONNECTOR CAN DATABUS 3-PIN MQS,X63/4, J 24738620051124
930
PLUG HOUSING RAIN AND LIGHT SENSOR 4-PIN MQS
930
CLUTCH DRIVER LUMBAR SUPPORT ADJUSTMENT SWITCH 4-PIN MQS,S109/2
